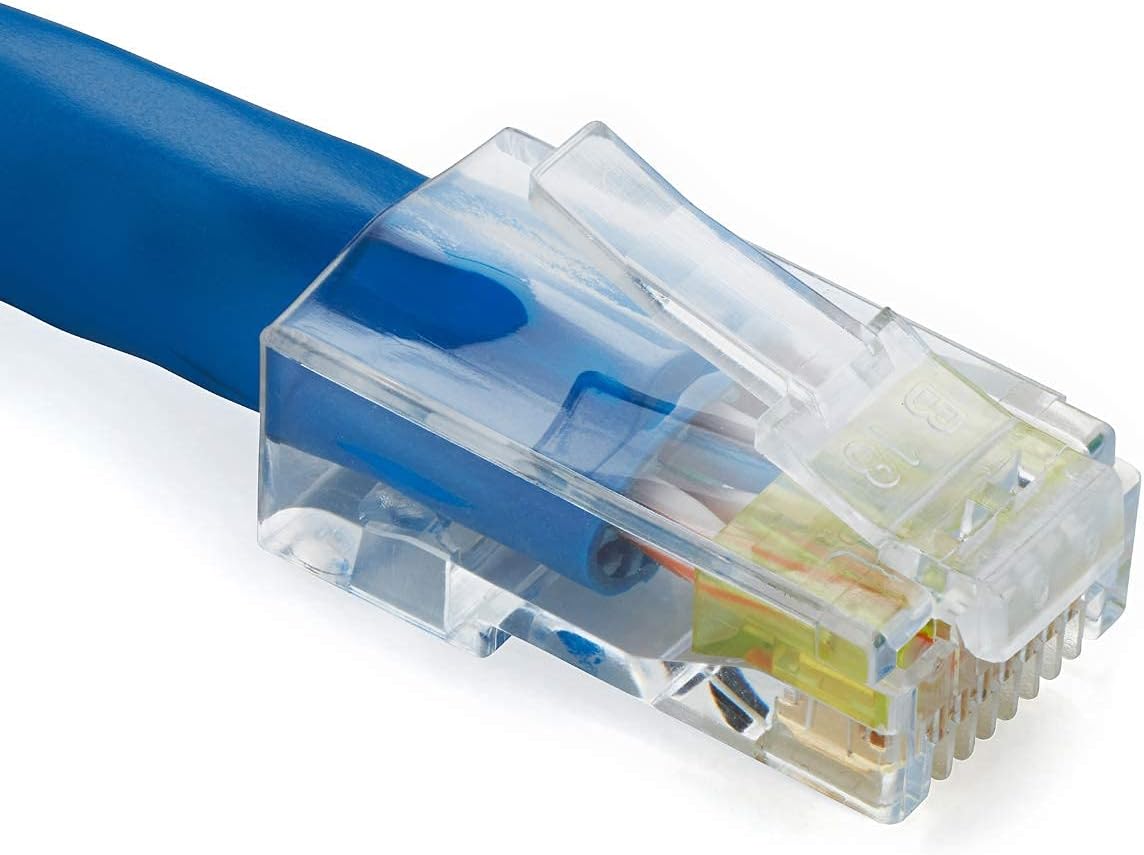

Cat6/6A RJ45 Staggered UTP Plugs, 100 Pack - Easy Load Bar Termination

In this review the reviewer tests the trueCABLE Cat6/6A RJ45 staggered UTP plugs to see whether they save time and deliver consistent terminations. The bottom line: these 100-piece gold plated plugs are aimed at installers and DIYers who want a dependable, fast termination method for Cat6 and Cat6A unshielded cable. The single biggest reason to buy is the enhanced load bar design, which makes conductor alignment easy and reduces small part loss compared with typical small-pass-through plugs.

Key Features

• Enhanced load bar: Highly visible load bars minimize small parts loss and remove guesswork about conductor length before insertion, speeding installations.
• Staggered conductor design: The staggered pin arrangement reduces NEXT and FEXT for improved signal integrity on Cat6/6A runs.
• Triple prong contacts: Gold plated 3 prong 8P8C contacts give reliable connectivity and support PoE, including 4PPoE up to 100W.
• Wide cable compatibility: Works with 23AWG stranded or solid conductors and cable jackets up to 7.30mm, fitting typical Cat6 and Cat6A U/UTP cables.
• Standards verified: ANSI/TIA 568.2-D certified and ETL/UL/SGS verified, providing assurance for professional installs.
• Resealable 100 pack: The transparent resealable bag keeps the plugs organized and ready for multiple job sites.

Who It's For

These plugs are best for network installers, IT technicians, and experienced DIYers who terminate Cat6 or Cat6A unshielded cable and value speed and repeatability. The visible load bar and compatibility with 23AWG conductors make them particularly useful when terminating mixed stranded and solid cable on the same job.

Home users doing a single run or installers using shielded cable should consider alternatives; shielded plugs and purpose-built field termination heads are better choices for screened cable, while pass-through styles may be preferable for those who rely on that termination method.

Pros & Cons

Pros

• Load bar greatly reduces small part handling and speeds conductor alignment during termination.
• Staggered design and triple prong gold contacts improve performance and reliability for PoE and high-speed links.
• Works with 23AWG stranded or solid conductors and accepts larger jacket diameters up to 7.30mm.
• Standards verified (ANSI/TIA 568.2-D) and ETL/UL/SGS checked for quality.

Cons

• Not suited for shielded cable; these are unshielded UTP plugs only.
• Requires a standard crimp tool and, for best results, a compatible all-in-one crimp and termination tool to trim staggered conductors.

Specifications

Our Verdict

These staggered Cat6/6A RJ45 UTP plugs are a practical choice for professionals and serious DIYers who need fast, repeatable terminations with solid performance. The load bar design, standards verification, and support for PoE up to 100W make them good value for multi-run installations, provided unshielded cable is being used.

Frequently Asked Questions

Can these plugs handle PoE++?
Yes, the triple prong contacts and design support PoE/PoE+/PoE++ (802.3bt) 4PPoE up to 100W.

Do they work with stranded cable?
Yes, they are compatible with 23AWG stranded or solid conductors and work with typical Cat6 and Cat6A U/UTP cable.

Do I need a special crimp tool?
You can terminate with any standard crimp tool, though an all-in-one crimp and termination tool that trims staggered conductors is recommended for fastest, cleanest results.
