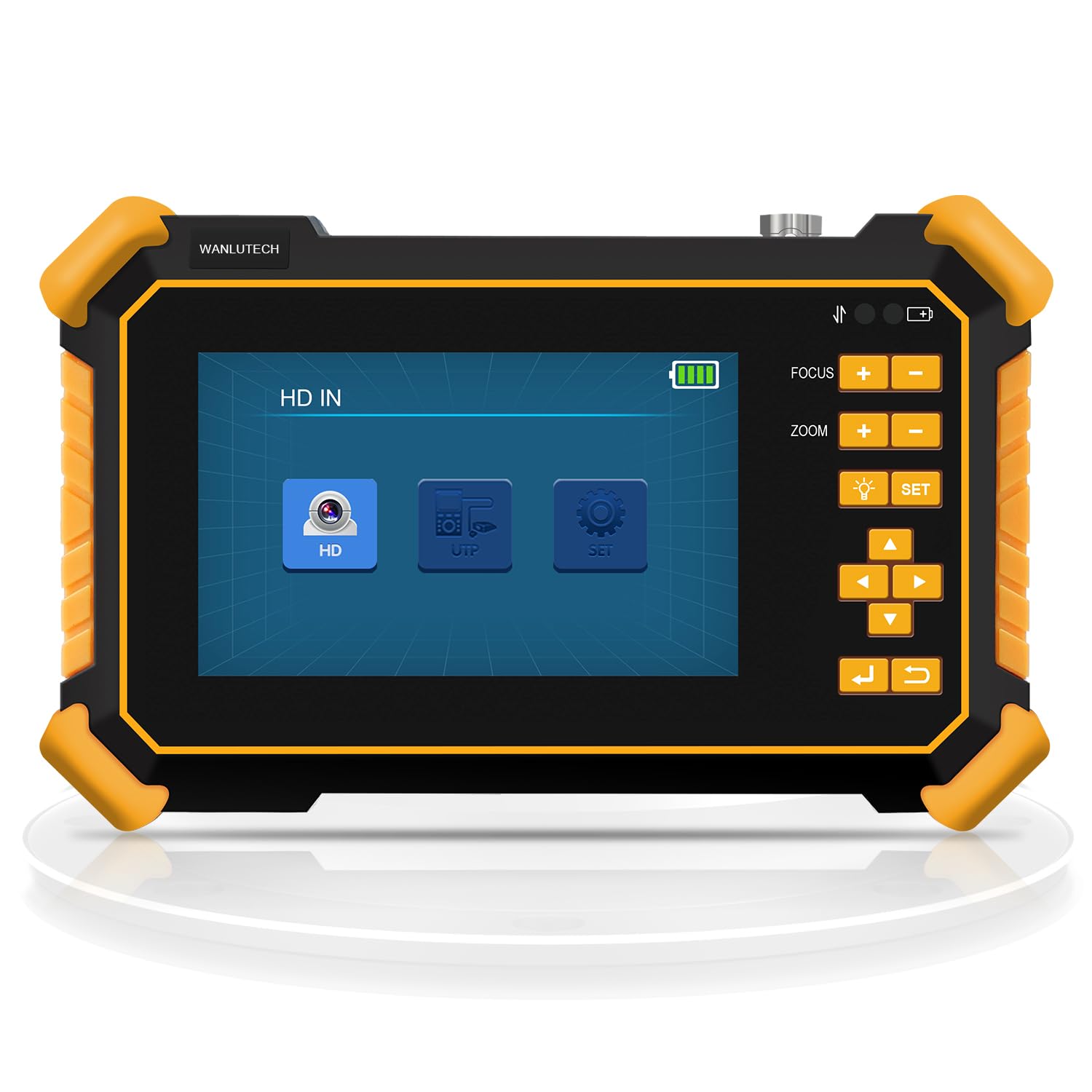

CCTV Camera Tester 4.3in Screen - 8MP AHD TVI CVI CVBS Test Tool

In this review the WANLUTECH CCTV Camera Tester is examined as a compact field tool for installers and technicians who need to verify cameras, cables and basic system functions on the job. The single biggest reason to buy this tester is its multi-format video compatibility combined with an integrated UTP cable tester and PTZ/RS485 control in a handheld unit, which removes the need to carry several separate instruments during installation and troubleshooting.

Key Features

• Multi-format video support: Tests up to 8MP AHD, 8MP TVI, 8MP CVI and analog CVBS cameras so a single device covers modern HD and legacy cameras.
• Auto-recognition and display: The HD app auto-detects camera type and shows resolution and frame rate on the 4.3in 480x272 screen for quick verification.
• UTP cable testing: Performs continuity tests, detects near-end RJ45 faults and measures cable length up to 3000 meters to locate wiring issues without extra tools.
• PTZ and RS485 control: Supports coaxial PTZ and RS485 control with baud from 600 to 115200bps and compatibility with 30+ protocols for on-site camera configuration.
• Audio and power functions: One audio input tests whether camera audio is present and the unit provides DC12V/1A power output plus a 3.7V/4000mAh battery for field use.
• Practical accessories and lights: Includes BNC, RS485 and audio cables, USB charging cable and a built-in LED flashlight for working in dark enclosures.

Who It's For

This tester is aimed at professional installers, CCTV technicians and small security teams who need a single handheld unit to validate camera signals, exercise PTZ functions and check cable continuity on site. It is also useful for anyone maintaining mixed systems with both HD and analog cameras where quick identification of format and frame rate speeds troubleshooting.

It is less suited for network technicians who need advanced network traffic analysis or for projects requiring multi-channel simultaneous recording and playback; those users will still need dedicated analyzers or NVRs for deeper network diagnostics.

Pros & Cons

Pros

• Broad video compatibility covers current 8MP HD standards and legacy CVBS for flexible field use.
• Built-in UTP continuity and length testing to 3000m reduces the need for separate cable tools.
• On-board PTZ and RS485 control with wide baud range and many protocols simplifies camera setup.
• Battery power, LED flashlight and included cables make it ready for onsite work.

Cons

• The 4.3in 480x272 screen is compact and useful for quick checks but not ideal for detailed image inspection.
• Cable length testing requires the far end of the cable to be disconnected from other devices, which can be inconvenient in live installations.

Specifications

Our Verdict

The WANLUTECH CCTV Camera Tester is a practical, value-oriented handheld for installers who need a single device to check HD and analog cameras, test UTP cable continuity and exercise PTZ/RS485 controls. It is especially useful when portability and multi-function capability matter more than a large display; for routine installation and troubleshooting it provides a capable, all-in-one workflow tool.

Frequently Asked Questions

Can this unit power a camera?
Yes, it provides a DC12V/1A power output suitable for powering most CCTV cameras during testing.

How far can the cable tester measure?
The UTP length test measures up to 3000 meters but requires the far end of the cable to be disconnected from other devices while testing.

Does it support HD camera auto-detection?
Yes, the tester auto-recognizes AHD, CVI and TVI cameras and displays resolution and frame rate on the screen.
