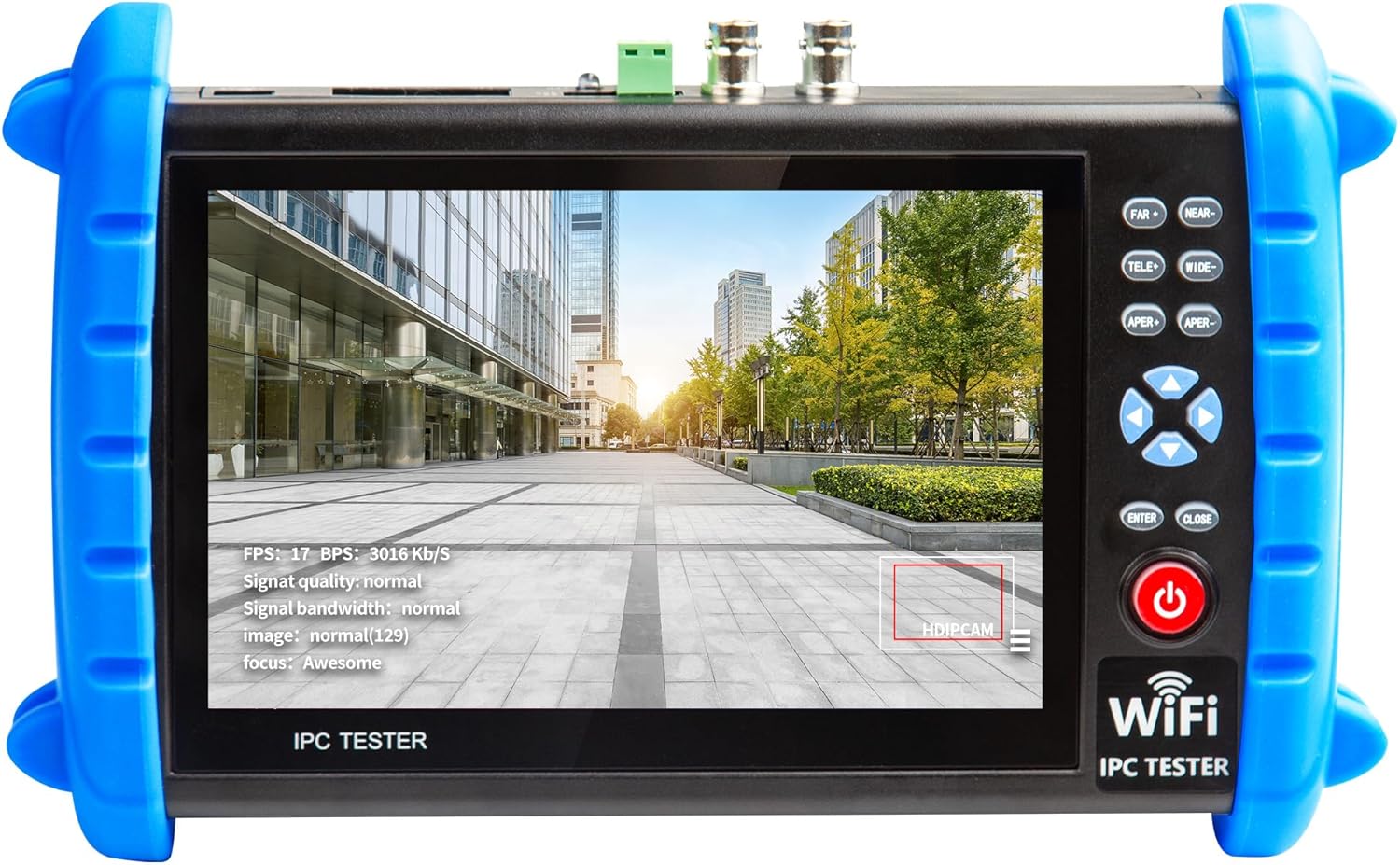

CCTV Camera Tester 7 in IPS Touch Screen - 6K IP & 8MP Coaxial Tester

In this review of the CCTV Camera Tester users will find a hands-on appraisal of a portable, all-in-one tester aimed at security installers and technicians who need to validate both IP and coaxial cameras in the field. The tester stands out for combining a 7 in 1920x1200 IPS touch display, broad codec and interface support, and extensive network tools including POE and RJ45 TDR cable diagnostics, making it the best single device for mixed camera installations where speed and accurate network measurements matter.

Key Features

• 7 in IPS Touch Screen: A 1920x1200 high-resolution touch display makes framing, menu navigation and playback straightforward on site.
• IP Camera Support up to 6K/32MP: The tester handles IP camera detection, RTSP playback, quick recording and automatic video viewing for modern high-resolution IP devices.
• Coaxial HD Compatibility up to 8MP: One BNC input supports AHD/CVI/TVI/SDI/CVBS testing with PAL/NTSC auto detection and UTC PTZ control for legacy coax systems.
• Network and Cable Diagnostics: Built-in POE testing, UTP cable test and RJ45 TDR functions measure length, impedance and reflectivity to diagnose network cable faults to 195 meters.
• Multiple Power Outputs and I/O: POE48V output plus 24V/1A, 12V/3A, USB 5V/2A and DC12V/2A inputs cover powering a wide range of cameras and peripherals.
• Portable Battery and Connectivity: A 7.4V 7000mAh battery and built-in WiFi make it possible to test remote cameras without direct mains power.

Who It's For

The tester is ideal for professional security installers, network technicians and service teams who routinely work on hybrid camera systems that combine modern IP cameras with legacy coaxial HD cameras. It is especially useful on jobs where quick network diagnostics and POE verification save time during initial deployment or fault finding.

Less suitable for casual consumers who only need a basic analog monitor or a low-cost CVBS tester; hobbyists without need for RJ45 TDR or advanced IP features may find the feature set and price more than required.

Pros & Cons

Pros

• Supports both high-resolution IP testing up to 6K/32MP and coaxial HD up to 8MP, reducing the need for multiple tools.
• Comprehensive network tools including POE tests and RJ45 TDR cable diagnostics that pinpoint cable length and quality issues.
• Multiple power outputs and HDMI I/O expand on-site flexibility for powering cameras and connecting external displays.
• Large battery and built-in WiFi allow remote testing without AC power.

Cons

• Feature-rich interface can have a learning curve for technicians new to combined IP and coaxial testers.
• The unit is a precision tool and may be overkill for users who only need simple CVBS monitoring.

Specifications

Display	7 in IPS touch, 1920x1200
IP Camera Support	Up to 6K/32MP with RTSP and IPC testing
Coaxial Input	1x BNC, supports AHD/CVI/TVI/SDI/CVBS up to 8MP
Network Ports	10/100/1000 Mbps Ethernet, RJ45 TDR cable test
Power Outputs	POE48V, 24V/1A, 12V/3A, USB 5V/2A
Battery	7.4V 7000mAh internal
Weight / Size	0.9 kg (1.98 lbs); 9.06 x 5.51 x 1.77 in

Our Verdict

The CCTV Camera Tester is a robust, multi-function field tool for professionals who need to test both IP and coaxial cameras quickly and accurately. With extensive network diagnostics, POE support and multiple power outputs, it delivers strong value for contractors and service teams; those who only need a basic monitor may prefer a simpler device.

Frequently Asked Questions

Can this tester power cameras with POE?
Yes, it supports POE48V output and several DC outputs to power a range of cameras during testing.

Does it diagnose network cable faults?
Yes, the RJ45 TDR test measures cable length, attenuation, reflectivity and more up to 195 meters to help locate faults.

Will it display both analog and HD coaxial cameras?
Yes, the BNC input supports PAL/NTSC and HD coaxial formats including AHD, CVI, TVI and SDI up to 8MP.
