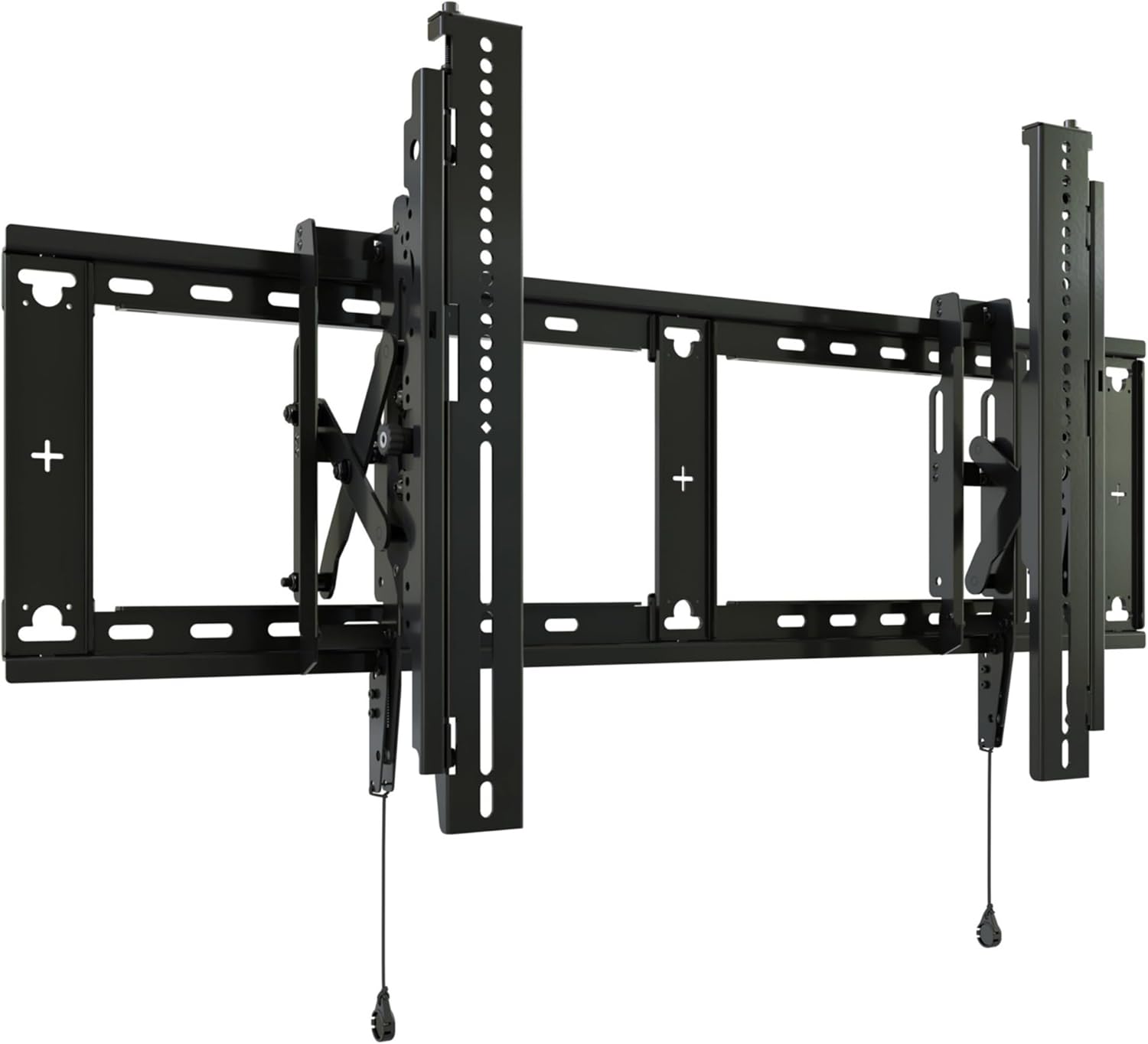

Chief RLXT3 Large FIT Wall Mount, 19.2 x 38 x 2.7 in - Heavy Duty Tilt

Our review of the Chief RLXT3 Large FIT Wall Mount finds it best suited for businesses and homeowners who need a robust, adjustable mounting solution for large displays. The bottom line: this mount combines a rigid wall plate with a toolless lateral shift and post-installation leveling to make alignment and service far easier than many alternatives. For anyone installing 43 in to 85 in screens where safe support and precise tilt matter, this mount is a practical, no-nonsense choice.

Key Features

• Post-installation leveling: The 0.75 in (19 mm) leveling screw lets installers fine-tune screen alignment after the display is hung, saving time and trips back to the ladder.
• Tilt adjustment: The display can be tilted 10 degrees forward or back to reduce glare and set an optimal viewing angle for larger screens.
• Rigid wall plate: The heavy-duty plate supports up to 150 lbs (68 kg) and includes extra mounting slots to accommodate varied stud and box placements.
• GlideLock lateral shift: Toolless GlideLock secures the display to the wall plate while allowing smooth side-to-side adjustment for perfect centering.
• Service access: Magnetic quick-store release pullcords and a kickstand give easy access to power and signal connections without fully removing the display.
• Security option: A theft deterrent locking feature accepts a padlock or cable to help secure the screen in public or shared spaces.

Who It's For

The RLXT3 is aimed at AV installers, schools, offices and homeowners mounting larger displays where safety and serviceability matter; it supports VESA patterns up to 863 x 450 mm and carries UL and TUV approvals that are useful for commercial installs. Its rigid plate and 150 lb capacity make it appropriate for heavy 55 in to 85 in screens that need both reach and tilt.

Those needing a low-profile fixed mount for very small TVs or users with ultra-lightweight screens may look elsewhere, since this model is designed for larger format displays and offers an extending tilt mechanism rather than an ultra-slim flush fit.

Pros & Cons

Pros

• Strong wall plate and 150 lb rating provide confidence for large displays.
• Post-installation leveling and GlideLock lateral shift make alignment fast and precise.
• Magnetic quick-store release and kickstand simplify access to cables during maintenance.
• Includes a 10 in ball end hex-key and convenient accessories to aid installation.

Cons

• Being an extending tilt mount, it does not sit as flush to the wall as low-profile fixed mounts.
• Theft deterrent requires a separate lock or cable, which is not supplied.

Specifications

Compatible display size	43 in to 85 in (typical)
Maximum weight capacity	150 lbs (68 kg)
VESA support	Up to 863 x 450 mm
Depth from wall	Minimum 2.67 in (68 mm) to maximum 6 in (152 mm) extended
Tilt range	10 degrees forward or back
Post-install leveling	0.75 in (19 mm) leveling screw
Certifications	UL and TUV approved

Our Verdict

The Chief RLXT3 is a solid, commercial-grade tilt mount for large displays that balances strength, serviceability and adjustability; it is a good value for installers who need reliable alignment features and a high weight capacity, though buyers wanting an ultra-slim profile should consider a different design.

Frequently Asked Questions

What display sizes does this mount support?
The mount is designed for typical 43 in to 85 in displays and supports VESA patterns up to 863 x 450 mm.

How much weight can the wall plate hold?
The rigid wall plate supports up to 150 lbs (68 kg) and includes additional mounting slots for secure attachment.

Can I lock the display to prevent theft?
Yes, there is a theft deterrent locking option that accepts a padlock or steel cable, but the lock or cable is not included.
