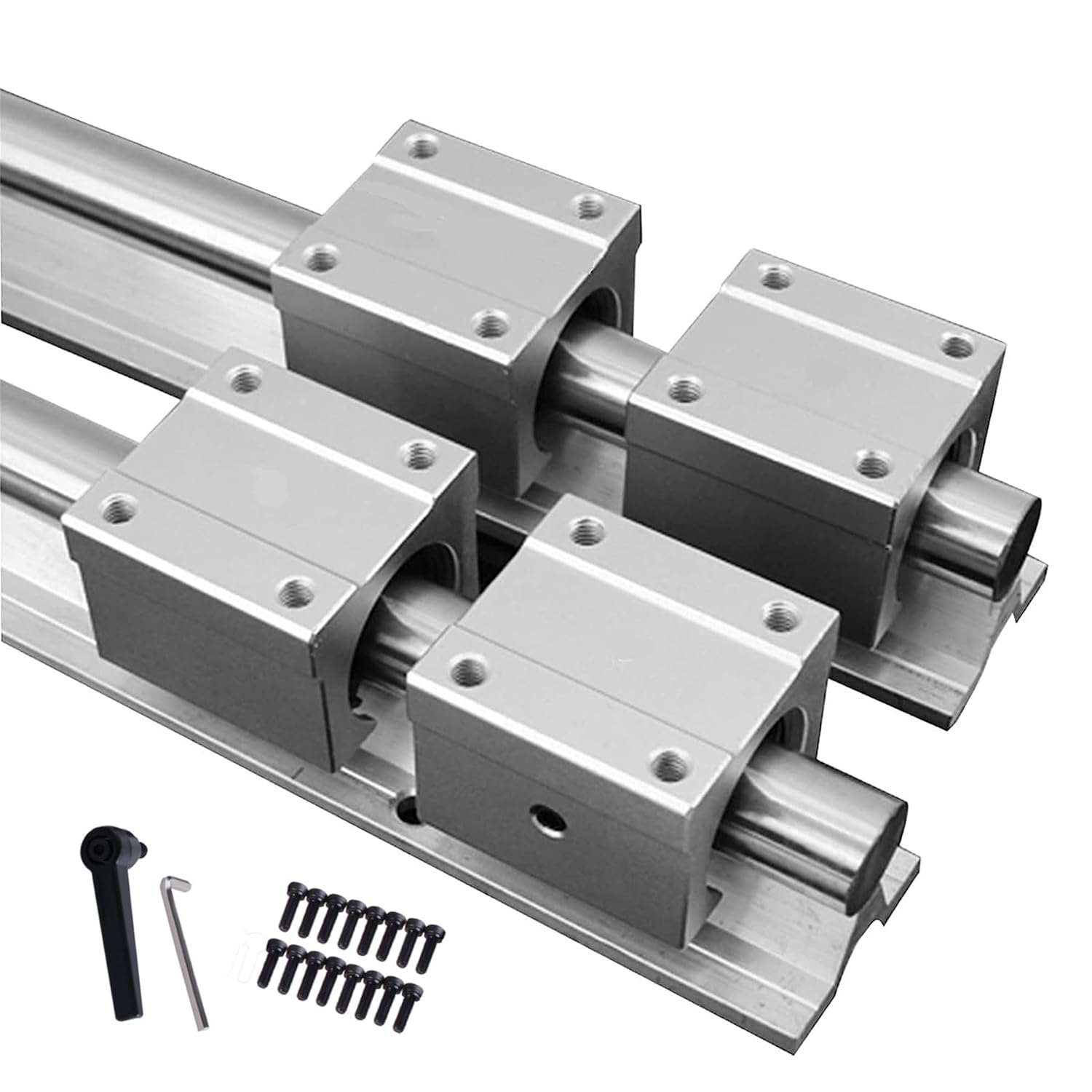

CNC Parts 20mm Linear Rail SBR20-500mm with 4 SBR20UU Blocks

In this review the CNC Parts 20mm Linear Rail kit is examined for hobbyists and small shop owners who need a solid, budget-friendly linear guide solution. The kit includes two 500mm rails and four SBR20UU square blocks, and the biggest reason to consider it is the combination of industrial-style construction and straightforward mounting hardware that delivers reliable positioning for DIY CNC, 3D printers and light machine tools. The review focuses on build quality, smoothness, and practical fit for common motion projects.

Key Features

• Complete kit: Two 500mm SBR20 rails and four SBR20UU blocks provide everything needed to add guided linear motion to a machine without hunting for separate parts.
• Material quality: Rails are made of bearing steel with surface chrome plating for corrosion resistance and higher hardness, improving service life in workshop environments.
• Smooth motion: Blocks contain industrial-standard linear bearings for generally low-noise, consistent sliding performance in positioning tasks.
• Mounting convenience: The kit includes 16 M6x20 screws so bearing blocks can be fastened to plates and frames with standard hardware and simple alignment steps.
• Adjustable tightness: Each SBR block has an adjustment handle to tune slider tightness for improved play control during setup.
• Versatile applications: Designed for DIY CNC routers, lathes, machine tools, lasers and other automated equipment that need guided linear motion.

Who It's For

This kit is best for hobbyists, small fabricators and makers upgrading a 3D printer, CNC router or light-duty machine tool who want an affordable, industrial-style linear guide with straightforward installation. It suits projects that need repeatable positioning and moderate load-bearing capacity without the cost of high-end profiled rails.

Those requiring perfect factory alignment for heavy industrial loads or ultra-high-precision machine centers should look at profiled rails and matched carriages. Also, if exact glide feel out of the box is critical, be aware that some users report mixed results and may need careful setup and lubrication.

Pros & Cons

Pros

• Good build quality and corrosion-resistant chrome plating give durable rails for workshop use.
• Includes sufficient blocks and M6 hardware to mount and begin testing without extra parts.
• Industrial-style SBR blocks with adjustment handles allow tuning of play for better positioning.

Cons

• Some buyers report alignment and glide variability, so precise installation and possible shimming may be required.
• Not marketed as a high-precision profiled rail system, so absolute precision and long-term heavy-duty durability may be limited compared with premium alternatives.

Specifications

Rail type	SBR20 cylindrical linear rail
Rail length	500mm / 19.7 in
Bearing blocks	4 x SBR20UU square blocks
Material	Bearing steel rails with aluminum alloy supports
Surface finish	Chrome plating, corrosion resistant
Included fasteners	16 x M6 x 20 screws
Typical use	DIY CNC, 3D printer upgrades, light machine tools

Our Verdict

The SBR20-500mm kit is a practical, value-focused choice for makers and small shops that need reliable guided motion without a premium price. It pairs industrial-style bearing steel rails and standardized SBR blocks with enough hardware to mount quickly. With careful setup to address occasional alignment or glide variation, this kit offers good durability and functionality for most hobby and light production applications.

Frequently Asked Questions

Are these rails pre-drilled for mounting?
Each rail is provided as a shaft to be mounted with the supplied blocks and M6 screws; typical installation requires drilling or plates sized to accept the blocks.

Will the blocks slide smoothly out of the box?
Many units move smoothly, but some users report mixed glide; cleaning, lubrication and adjustment of the block tightness usually improve performance.

Can these rails handle heavier CNC work?
They are suitable for light to moderate loads common in DIY routers and printers, but heavy industrial use may need a higher-capacity profiled rail system.
