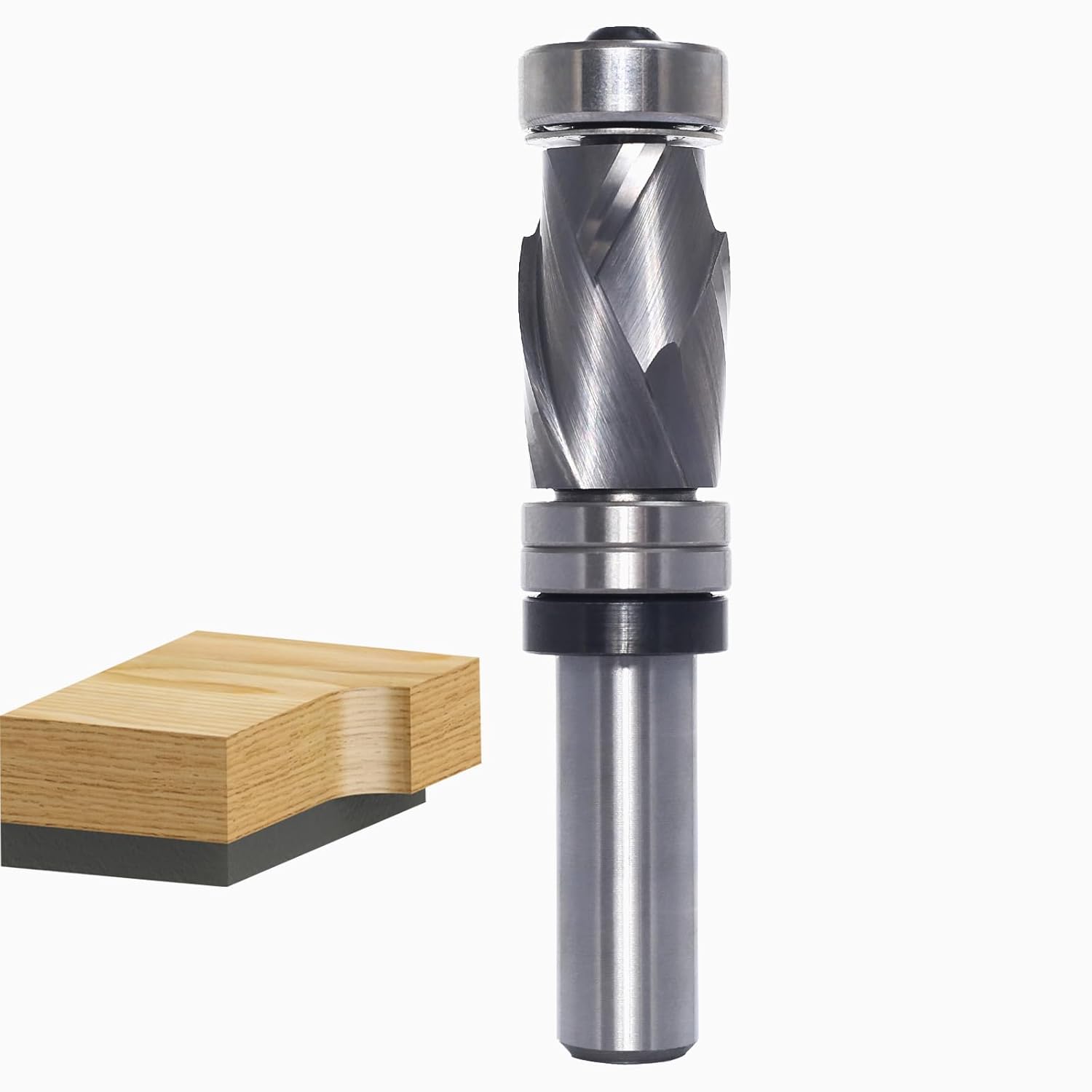

Compression Top and Bottom Bearing Flush Trim Router Bit 3/4in Dia

In this review the Compression Top and Bottom Bearing Flush Trim Router Bit is evaluated for woodworkers and cabinetmakers who need clean edge trimming and pattern routing. The single biggest reason to buy is the bit's solid carbide spiral design that compresses chips toward the center to produce burr-free edges on laminates and endgrain. The review covers how the 1/2in shank, 3/4in cutting diameter and 1-3/16in cutting length perform in handheld and table routers for everyday trimming tasks.

Key Features

• Solid carbide construction: The one-piece carbide sleeve gives a harder, longer lasting edge for frequent use and resharpen cycles.
• C3 micro-grain carbide: Premium micro-grain tungsten carbide keeps the cutting edge sharper for longer and improves chip formation for cleaner cuts.
• Compression spiral profile: The up-down spiral compresses material at the cut line to leave a clean, burr-free finish on both laminates and endgrain.
• Sealed bearing design: The top and bottom sealed bearings run smoothly and resist contamination for steadier rotation and precise cutouts.
• Versatile cutting material: The bit works on solid wood, plywood, MDF, particle board and other wood composites for trimming, template routing and rabbets.

Who It's For

The bit is best for hobbyists, cabinetmakers and professional carpenters who regularly trim laminates, clean up pocket bottoms and follow templates where a clean edge is important. Its solid carbide and C3 micro-grain make it suited to repeated use and tougher materials like hardwoods.

Those who need extreme durability from bearings under heavy industrial cycles should evaluate bearing replacement and maintenance over time; users who only occasionally trim thin veneers may find simpler trim bits more economical.

Pros & Cons

Pros

• Produces very clean, burr-free edges on laminates and endgrain due to the compression spiral.
• Sharp, longer lasting cutting edge thanks to C3 micro-grain carbide construction.
• Sealed bearings improve stability and reduce vibration for precise routing operations.

Cons

• Bearings may be a wear point in heavy continuous production work and could require periodic replacement or inspection.

Specifications

Cutting diameter	3/4in
Cutting length (height)	1-3/16in
Shank	1/2in
Material	Solid carbide, C3 micro-grain
Bearing	Top and bottom sealed bearings
Cut pattern	Compression up-down spiral

Our Verdict

The Compression Top and Bottom Bearing Flush Trim Router Bit is a practical choice for woodworkers who prioritize a clean finish and durable cutting edges. It offers good value for trimming laminates, pattern routing and working with endgrain thanks to its solid carbide and sealed bearings, though shops with extreme daily throughput should monitor bearing wear.

Frequently Asked Questions

Can this bit be used in handheld routers?
Yes. It is designed for both handheld and table or portable routers, but always check that collet and screws are tightened before use.

What materials can it cut?
The bit is suitable for solid wood, plywood, MDF, particle board and various wood composites, and is useful for laminates and pattern routing.

Are the bearings serviceable?
The product uses sealed bearings for durability; they can still wear under heavy use and may require inspection or replacement over time.
