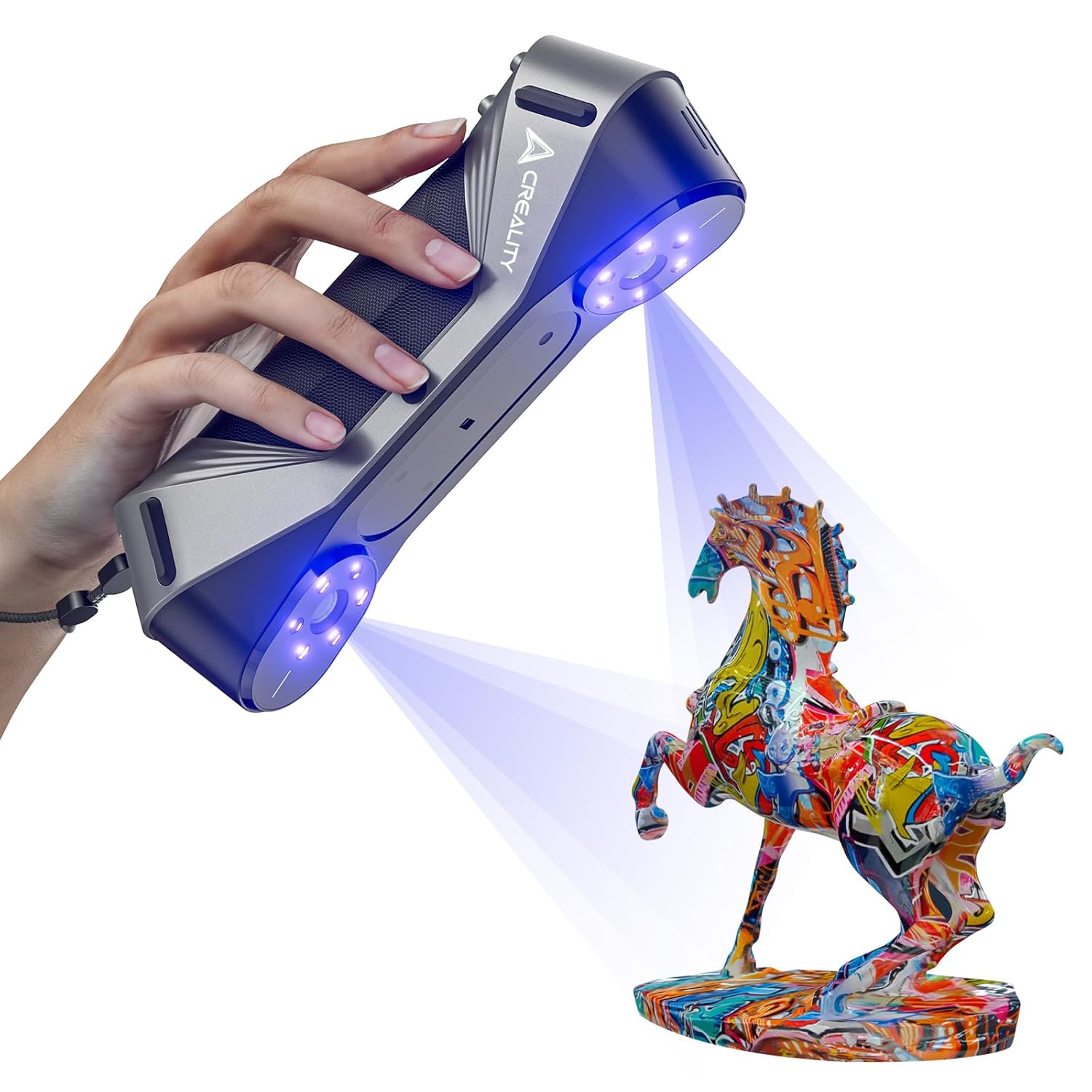

Creality CR-Scan Raptor 3D Scanner - High-Speed 0.02mm Accuracy

In this review of the Creality CR-Scan Raptor, the bottom line is simple: this handheld consumer scanner is aimed at makers, small studios, and parts inspectors who need fast, versatile scans with fine detail. The Raptor's combination of multiple-line blue light and NIR sources, plus 24-bit color capture and anti-shake tracking, makes it a strong choice for scanning everything from small figurines to full-size body parts. For those who want precise meshes and realistic color without complex setup, the Raptor delivers a clear practical advantage.

Key Features

• Multiple-line Blue & NIR: The hybrid blue and infrared light sources let the scanner handle small to very large objects with consistent results.
• High Precision: Scanning accuracy up to 0.02mm preserves fine edges and surface detail for close-fitting parts and high-resolution models.
• Fast Capture: Blue light scanning reaches up to 60fps while NIR scanning goes up to 20fps, reducing time spent on each scan.
• Anti-shake Tracking: One-Shot 3D imaging and fast backtracking minimize tracking loss during handheld scans for smoother capture.
• 24-Bit Full-Color: Twelve circular LED texture lights and dual-color illumination boost color mapping and help in low-light environments.
• Cross-platform Software: CrealityScan supports Windows and macOS with one-click processing and guided tutorials for model cleanup.

Who It's For

The CR-Scan Raptor is best for hobbyists, small design shops, prop makers, and engineers who need a portable scanner that balances speed, color, and precision. Its ability to scan items from 5x5x5 mm up to 2000x2000x2000 mm makes it suitable for both miniature models and life-size subjects like faces and bodies.

It is less ideal for someone who needs a fully automated metrology workflow with certified calibration certificates or for users who prefer a marker-based system; however, its markerless speckle matching works well for textured, feature-rich objects.

Pros & Cons

Pros

• Very fine detail capture thanks to seven parallel blue lines and 0.02mm accuracy.
• Fast throughput with up to 60fps blue light scanning for quicker project completion.
• Stable handheld scanning from anti-shake One-Shot 3D imaging and autofocus lens.
• Realistic color maps from 24-bit color and dedicated LED texture lights.

Cons

• Not a purpose-built industrial metrology device with formal certification, so use cautiously for inspection-grade measurements.
• Some complex surfaces may still require careful positioning to avoid occlusions during handheld capture.

Specifications

Scanner Type	Handheld multiple-line blue & NIR 3D scanner
Accuracy	Up to 0.02mm
Blue Light Speed	Up to 60 fps
NIR Speed	Up to 20 fps
Scan Size Range	From 5x5x5 mm to 2000x2000x2000 mm
Color Capture	24-bit full-color with 12 circular LED texture lights
Compatibility	Windows and macOS with CrealityScan software

Our Verdict

The Creality CR-Scan Raptor is a versatile, fast handheld scanner that brings high-resolution detail and true-color capture to makers and small studios. Its hybrid blue and NIR illumination, anti-shake tracking, and cross-platform software make it a strong value for those who need reliable scans across a wide range of object sizes without complex setup.

Frequently Asked Questions

Can the Raptor scan small and large objects?
Yes. The hybrid blue and NIR system supports objects from approximately 5x5x5 mm up to 2000x2000x2000 mm, covering miniatures to full-size subjects.

Do you need markers for scanning?
No. The scanner uses speckle matching 3D imaging so markers are not required for feature-rich workpieces.

Which computers are supported?
The included CrealityScan software runs on Windows and macOS and offers guided tutorials and one-click model processing.
