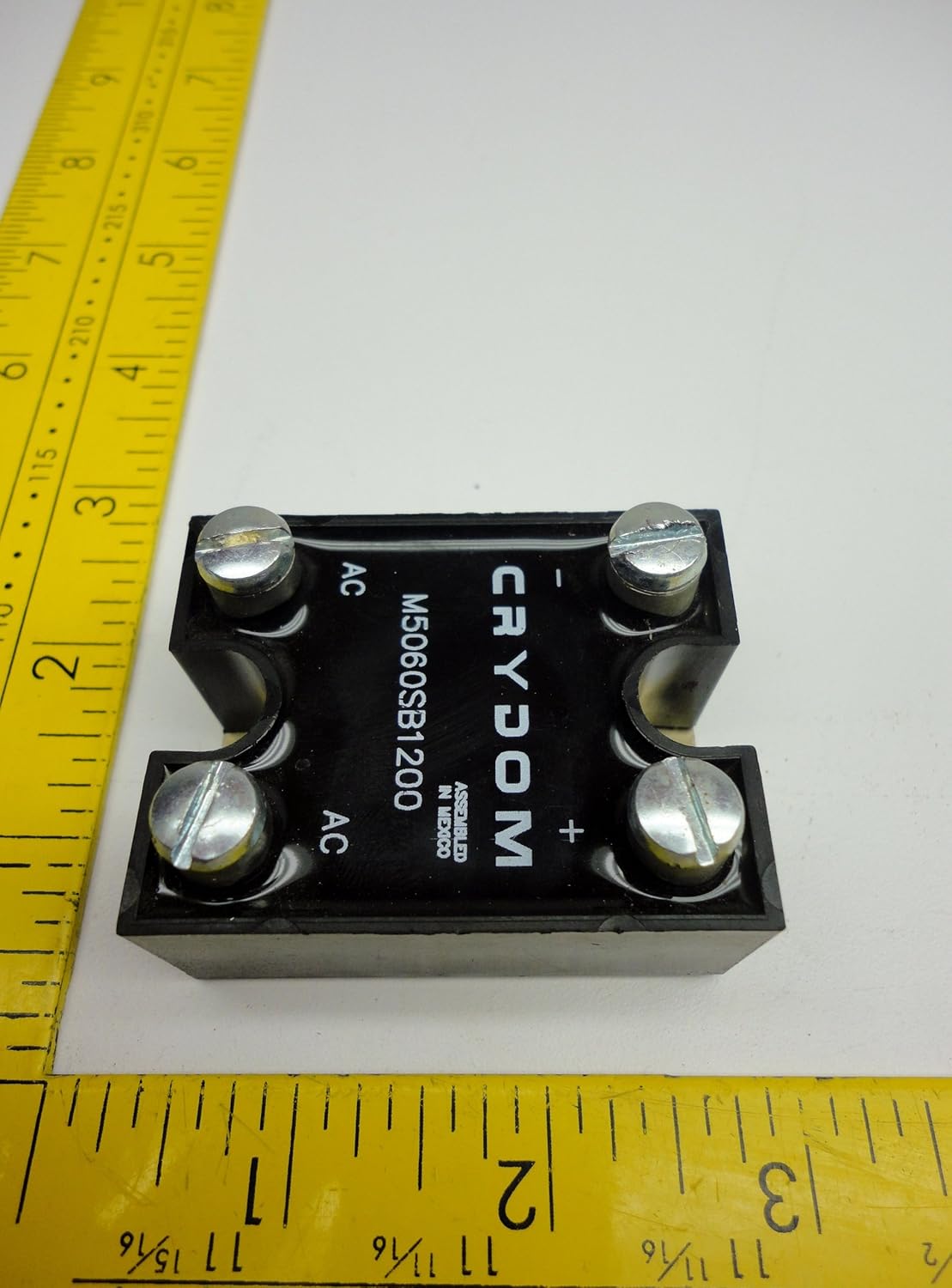

CRYDOM M5060SB1200 Power Diode Module - Panel Mount High Current

Our review of the CRYDOM M5060SB1200 finds it best suited to technicians and engineers needing a robust, high-current diode module for industrial AC power applications. The single biggest reason to consider this unit is its combination of a wide 480 VAC operating range and a 60 A maximum load current delivered in a panel-mount package, which simplifies installation in control panels and power racks. The review focuses on practical performance, installation considerations, and what the module delivers for power-rectification and protection tasks in semiconductor and power-conversion environments.

Key Features

• 480 VAC operating range: Supports high-voltage AC systems common in industrial settings, reducing the need for additional transformers or converters.
• 60 A maximum load current: Handles sustained heavy current loads suitable for medium-power rectification and DC bus feeding tasks.
• Circuit Type SB: The SB configuration provides a straightforward diode arrangement for standard power-module replacement and integration.
• Panel mount: Designed for secure, space-efficient installation in control enclosures and equipment panels for easy access and service.
• Power diode module form factor: Offers a compact semiconductor package aimed at replacing discrete diodes with a single modular component to simplify wiring.

Who It's For

The CRYDOM M5060SB1200 is aimed at electrical technicians, panel builders, and system integrators working on industrial power supplies, motor drives, or rectifier banks where a reliable high-voltage, high-current diode is required. Its panel-mount design and clear electrical ratings make it practical for retrofit and new-build control panels.

It is not intended for low-voltage consumer electronics or tiny bench projects that require smaller current capacities or surface-mount parts. Designers who need more detailed thermal or transient specifications should consult manufacturer datasheets and consider modules with explicit surge and thermal ratings.

Pros & Cons

Pros

• Clear high-voltage rating up to 480 VAC allows use in many industrial AC systems without additional conversion.
• Solid current capability at 60 A makes it suitable for medium-power rectification tasks and DC bus supply.
• Panel-mount form factor simplifies installation and replacement in equipment racks and control panels.

Cons

• Limited published customer feedback means installers must verify thermal and surge handling from datasheets before critical deployments.

Specifications

Part Number	M5060SB1200
Operating Voltage Range	480 VAC
Maximum Load Current	60 A
Circuit Type	SB
Mounting	Panel mount
Category	Semiconductors - Diode

Our Verdict

The CRYDOM M5060SB1200 is a practical choice for professionals needing a reliable, panel-mount power diode module with a 480 VAC range and 60 A capacity. It delivers straightforward electrical capability and an installation-friendly form factor, making it good value for control-panel and industrial power-conversion projects where those ratings match system needs.

Frequently Asked Questions

What voltage systems is this module suited for?
The module is specified for a 480 VAC operating range, so it is intended for higher-voltage industrial AC systems.

How much current can it handle?
It is rated for a maximum load current of 60 A under its specified conditions; verify cooling and mounting for sustained loads.

What mounting style does it use?
The unit uses a panel-mount design for secure installation in control panels and equipment enclosures.
