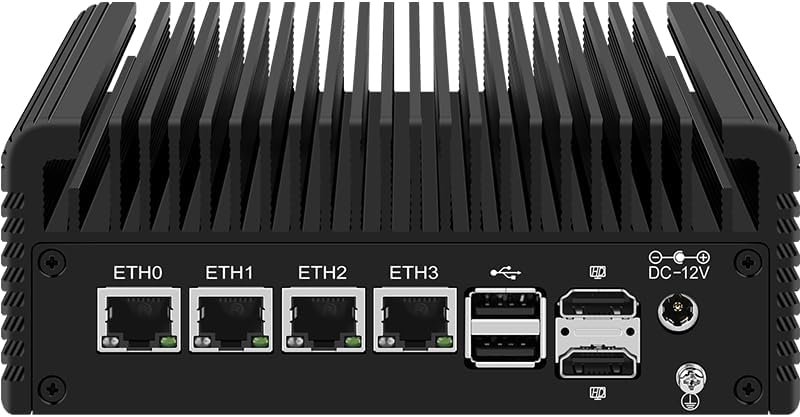

CWWK Micro Firewall Appliance Mini PC - Quad 2.5GbE, DDR5 Power

Our review of the CWWK Micro Firewall Appliance Mini PC finds it best suited to small offices, home labs, and network enthusiasts who need a compact firewall or VPN gateway with solid I/O and upgrade headroom. The single biggest reason to buy is the combination of a modern Twin Lake N150 processor and four 2.5GbE ports, which delivers unusually capable packet handling for a mini form factor while still supporting common OS choices like OPNsense, OpenWrt, Ubuntu, or Windows. For users wanting a reliable, flexible appliance that can also act as a NAS or virtualization host, this unit competently balances performance, connectivity, and expansion options.

Key Features

• Twin Lake N150 CPU: A 4-core, 4-thread processor with 6MB cache and bursts up to 3.6GHz provides the compute needed for firewall rules, VPN encryption, and light virtualization.
• 4 x 2.5GbE I226-V ports: Four multi-gigabit Ethernet ports offer far more throughput than standard gigabit ports, useful for high-throughput WAN/LAN setups and aggregated links.
• DDR5 memory support: A single SO-DIMM slot supporting up to 32GB of DDR5 4800MHz (and compatible speeds) enables smoother multitasking and larger firewall rule sets or virtual machines.
• M.2 NVMe storage: One M.2 NVMe x4 socket supports fast system and cache storage, and the design allows additional M.2 or mSATA via adapter for expanded capacity.
• Dual 4K display outputs: HDMI plus DisplayPort deliver dual-screen display capability for local management, monitoring, or media playback on 4K displays.
• Wireless expansion: An M.2 Key-E slot supports WiFi6/Bluetooth modules for optional wireless connectivity without using USB ports.

Who It's For

The CWWK Micro Firewall is aimed at small business owners, IT hobbyists, and home labbers who need a dedicated appliance for routing, firewalling, VPN termination, or light NAS duties and value multiple 2.5GbE ports and DDR5 memory. It is also a good fit for users who want the freedom to install open-source network OSes like OPNsense or OpenWrt or run Windows for management tasks.

Users who require heavy-duty server-class storage arrays, many PCIe expansion slots, or enterprise support contracts should look elsewhere. Also, those who need a turnkey consumer router with built-in WiFi and simplified consumer firmware may find the setup and OS installation here more technical than desired.

Pros & Cons

Pros

• Capable modern CPU with VT-x and VT-d support makes this appliance versatile for firewall, VPN, and light virtualization tasks.
• Four 2.5GbE ports give superior wired throughput for multi-gig networks or link separation without additional NICs.
• DDR5 and NVMe support provide fast memory and storage options that improve responsiveness and caching.
• Rich I/O including dual 4K outputs and multiple USB ports simplifies local monitoring and device connections.

Cons

• Single SO-DIMM limits memory expansion to one module, so upgrading requires replacing rather than stacking modules.
• Advanced setup and OS installation are required for many use cases, which may be challenging for nontechnical buyers.

Specifications

Processor	Twin Lake N150 (4 cores, up to 3.6GHz)
Network	4 x 2.5GbE Intel I226-V ports
Memory	1 x SO-DIMM DDR5 slot, up to 32GB (4800MHz compatible)
Storage	1 x M.2 NVMe x4 (supports additional M.2 or mSATA via adapter)
Display	1 x HDMI + 1 x DisplayPort, dual 4K output
Expansion	M.2 Key-E for WiFi6/Bluetooth, SATA3.0 signal, USB and GPIO headers
Certifications	FCC, CE, RoHS

Our Verdict

The CWWK Micro Firewall Appliance Mini PC is a practical choice for technical users who need multi-gigabit wired connectivity, modern CPU features, and flexible storage and wireless expansion. It represents good value for lab environments and small networks where performance and customization matter, provided the buyer is comfortable installing and configuring the operating system and network software.

Frequently Asked Questions

Can I install OPNsense or OpenWrt on this unit?
Yes. The device supports common open-source systems such as OPNsense and OpenWrt as well as Linux distributions and Windows, making it usable as a dedicated firewall or gateway.

How many drives can I add?
There is one M.2 NVMe x4 socket by default, and the design supports additional M.2 or mSATA via an adapter board, with shared SATA signals available.

Does it include WiFi?
The base unit does not include wireless by default, but it has an M.2 Key-E slot to add a WiFi6/Bluetooth module for wireless capability.
