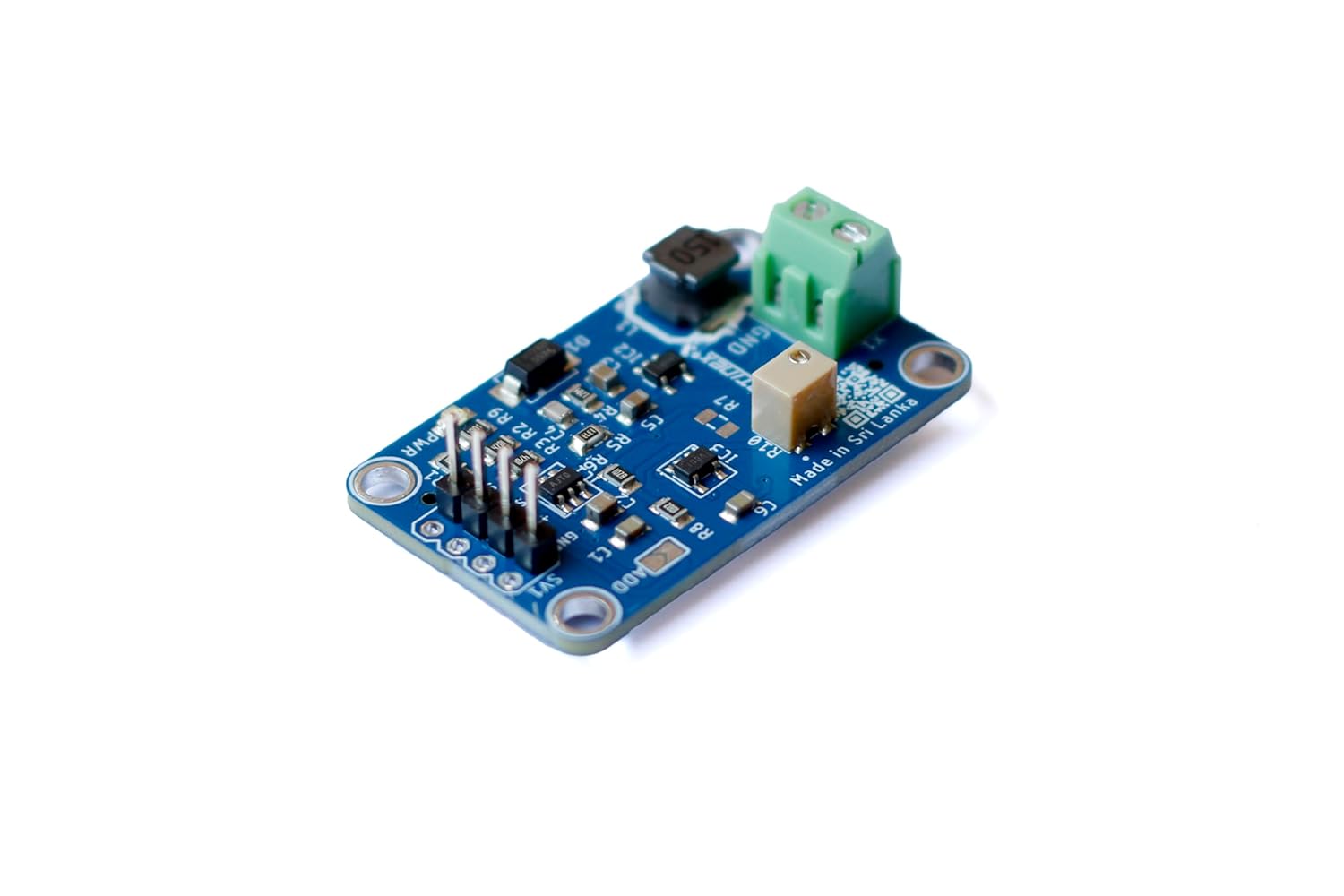

DAC Module DA1C010BI I2C Digital to Analog 0-10V MCP4725 - Precise

In this review the Aptinex VoltPulse DA1C010BI is assessed as a compact, specialist DAC board for engineers and hobbyists who need a true 0-10V analog output from an I2C host. The bottom line: it is best for projects that require a clean, buffered 0-10V control signal without adding external amplifiers, because the module pairs the reliable MCP4725 12-bit DAC with an onboard boost converter and rail-to-rail op amp to deliver a stable, accurate output suitable for automation and test rigs.

Key Features

• I2C to 0-10V conversion: Converts standard I2C DAC codes into a true 0-10V analog output so microcontrollers can interface directly with industrial actuators and sensors.
• 12-bit precision: The MCP4725 provides 4096 steps of resolution, offering smooth voltage transitions and fine control across the 0-10V range.
• Built-in boost and buffering: Integrated boost converter and rail-to-rail op amp raise and stabilize the DAC output to a clean 0-10V signal without external amplifiers or dual rails.
• EEPROM retention: Onboard EEPROM stores the last output value so the module can return to the saved voltage after power cycles, useful for persistent control states.
• Address flexibility: Alternate I2C address options via part number/A0 configuration make it easy to run multiple DACs on one bus for scalable systems.
• Practical connectors: Screw terminals for analog output and male headers for I2C/power simplify wiring in control panels and embedded builds.

Who It's For

The DA1C010BI suits makers, electronics technicians and control engineers who need a compact I2C-to-0-10V interface for dimming, speed control, valve position simulation, or PLC integration. It is ideal when space is limited but a buffered, industry-standard 0-10V signal is required from common microcontrollers such as Arduino, Raspberry Pi or ESP32.

Those who should look elsewhere are users who need multi-channel synchronized DAC outputs in a single package or who require on-board high-voltage power supplies beyond the module's intended 0-10V range; for high-channel-count analog front ends a different multi-DAC solution may be a better fit.

Pros & Cons

Pros

• Provides a true, buffered 0-10V analog output without external amplifiers.
• Precision 12-bit resolution with 4096 steps gives smooth, predictable control.
• EEPROM retention and alternate address options make it reliable and scalable for control systems.
• Compact board with screw terminals and mounting holes for easy installation in panels.

Cons

• Single-channel design may require multiple modules for multi-output systems, increasing wiring and board count.
• Requires a compatible I2C host and knowledge of I2C addressing for multi-module use.

Specifications

Our Verdict

The Aptinex DA1C010BI is a practical, well-engineered single-channel I2C DAC for anyone who needs a clean 0-10V output from microcontrollers without extra circuitry. Its combination of the trusted MCP4725, onboard boost and EEPROM retention makes it a strong value for automation, test rigs and DIY control panels, though projects that demand multiple synchronized channels will need additional modules.

Frequently Asked Questions

Does the module keep its output after power loss?
Yes. The onboard EEPROM stores the last set voltage so the module can restore that output on power-up.

Can I use this with Arduino or Raspberry Pi?
Yes. It uses standard I2C and is compatible with Arduino, Raspberry Pi, ESP32, STM32 and similar I2C hosts.

Can multiple DA1C010BI boards share one I2C bus?
Yes. Alternate I2C address options via part number or A0 configuration let you run multiple modules on the same bus.
