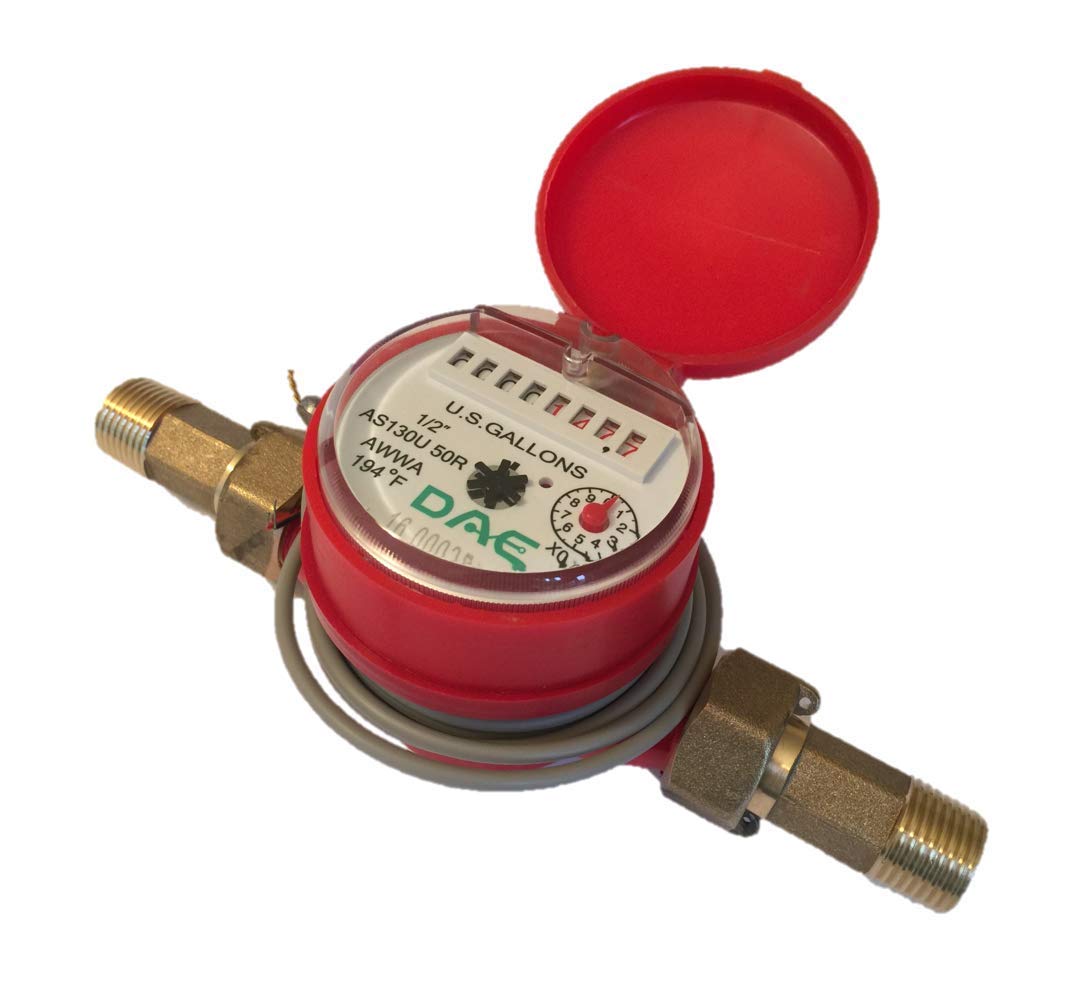

DAE AS130U-50RP 1/2ft Hot Water Meter with Pulse Output - Accurate

In this review the DAE AS130U-50RP is presented as a straightforward inline hot water meter for commercial or residential building applications where reliable gallon tracking and remote reading options matter. The meter is best for installers and property managers who need a horizontal inline unit with a top-facing dial and optional pulse output for remote counters or AMR modules; the single biggest reason to buy is its combination of AWWA/ISO conformity and compatibility with cloud or remote read systems that make billing and leak alerts practical.

Key Features

• Horizontal inline mount: Designed with the dial facing upwards for clear readability when installed in a horizontal line.
• Pulse output ready: Works with CO-10 electronic counters or AMR modules so usage can be remotely recorded and integrated into billing systems.
• Cloud metering compatible: Can pair with the DAE CC2030 Gateway and AMR gear to deliver real time data, monthly reports and email alerts for abnormal consumption.
• Standards compliance: Conforms to AWWA C700 and ISO 4064 Class C, providing assurance for municipal water applications and accuracy expectations.
• Wide flow range: Covers minimum to maximum flow from 0.06 to 3.4 m3/h (about 1/4 GPM to 15 GPM), suitable for many domestic and light commercial systems.
• Factory calibration available: Calibration certificates can be supplied for applications needing traceable measurement verification.

Who It's For

The meter is aimed at plumbers, property managers and installers who need a reliable top-dial horizontal water meter with pulse output for integration into remote reading or cloud systems. It is especially useful where precise gallon measurement and an easy way to collect usage data for billing or leak detection are required.

Those who need a versatile orientation or heavy outdoor/pit installation should look elsewhere; the AS130U-50RP is not intended for pit use and is specifically a horizontal inline device, so consider the DAE U-50R series or IP68-rated models for vertical or outdoor applications.

Pros & Cons

Pros

• Accurate and well built, meeting both AWWA and ISO standards for clean water measurement.
• Easy to read top-facing dial which simplifies monitoring and quick checks on usage.
• Flexibility to add remote reading via CO-10, AMR130 or CC2030 cloud gateway for modern metering workflows.
• Factory calibration certificates available to support compliance or commissioning needs.

Cons

• Mounting is limited to horizontal inline orientation; not suitable for vertical or pit installations.
• Outdoor use requires a different IP68-rated model for reliable weatherproofing.

Specifications

Meter type	1/2' hot water inline meter with pulse output
Flow range	Min 0.06 m3/h (1/4 GPM) - Max 3.4 m3/h (15 GPM)
Normal flow	1.7 m3/h (7.5 GPM)
Accuracy	1.5% within normal flow (AWWA standard)
Mounting orientation	Horizontal inline with dial facing upwards
Standards	AWWA C700 and ISO 4064 Class C
Remote reading options	Pulse output compatible with CO-10, AMR130, AMR, and CC2030 gateway

Our Verdict

The DAE AS130U-50RP is a solid, accurate inline hot water meter for installations that allow a horizontal orientation and benefit from remote read capability. It offers good value for property managers and installers who want AWWA/ISO conformity, easy on-site readability and the option to expand into automated or cloud metering without replacing the base meter.

Frequently Asked Questions

Can this meter be installed vertically?
No. The AS130U-50RP is designed for horizontal inline installation with the dial facing upwards; use the DAE U-50R series for vertical or multi-orientation installs.

Does it support remote reading?
Yes. It has a pulse output and works with CO-10 counters, AMR130 or AMR modules and can be connected to the CC2030 Gateway for cloud metering and alerts.

Is it suitable for outdoor pit installation?
No. This meter is not for pit applications; choose an IP68-rated model for outdoor or pit use.
