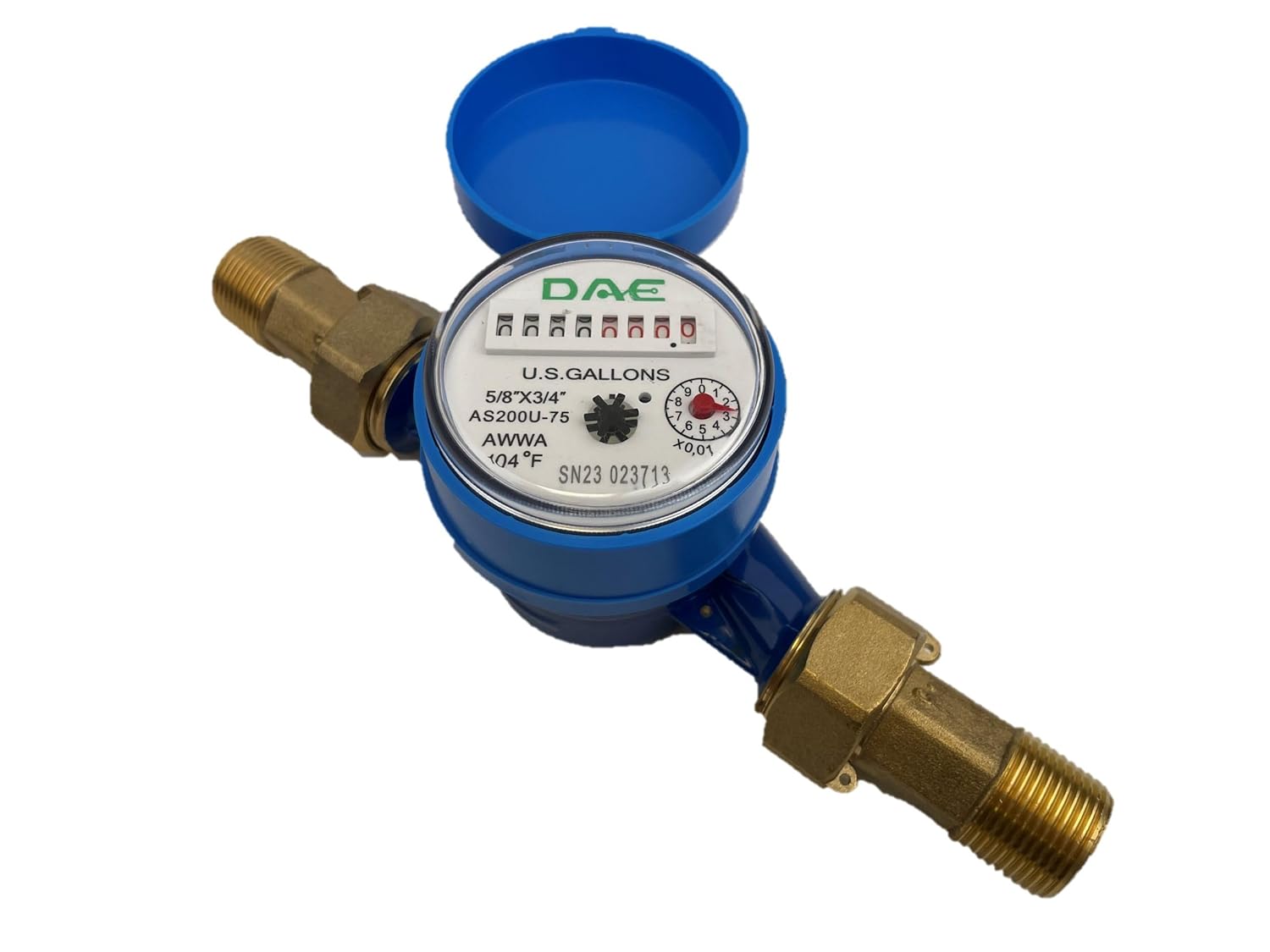

DAE AS200U-75 Water Meter, 3/4ft NPT Couplings - Accurate Gallons

In this review of the DAE AS200U-75 water meter, the bottom line is simple: this meter is for installers and property managers who need a compact, accurate inline meter that reads in gallons and fits standard 3/4' NPT plumbing. The reviewer found the meter delivers dependable accuracy and clear, easy-to-read digits while remaining straightforward to install in a horizontal inline position with the dial facing upwards. It is not designed for pit or outdoor use without upgrading to an IP68 model, but for indoor or protected metering it offers reliable performance and value.

Key Features

• Horizontal inline mount: Designed to be installed horizontally with the dial facing upwards for straightforward readouts and service access.
• 3/4' NPT couplings: Standard threaded connections allow integration with common 3/4' plumbing and optional garden hose fittings with adapters.
• Measures in gallons: The register displays consumption in gallons with clear digits for easy monitoring and record keeping.
• Accurate within AWWA limits: Factory calibration and conformity to AWWA and ISO 4064 provide accuracy of about +/-1.5% within normal flow ranges.
• Remote upgrade options: Upgradable to remote or cloud metering using DAE accessories like CO-10, AMR130, or CC2030 for automated reading and alerts.
• Suitable flow range: Handles household to light commercial flows with a maximum normal flow of 10 GPM and a minimum of 0.25 GPM.

Who It's For

The DAE AS200U-75 is best suited for plumbers, landlords, and facility managers who need a compact, reliable inline meter that reads in gallons and connects to standard 3/4' NPT fittings. It is a good choice where a clear mechanical register and optional remote reading upgrades are desired for billing or monitoring water use.

Those who need a meter for outdoor buried pits, fully exposed installations, or versatile orientation mounting should look at IP68-rated or multi-orientation DAE models instead, since this unit is intended for horizontal inline use with the dial upward and not for pit applications.

Pros & Cons

Pros

• Reliable mechanical register with good readability for tracking gallons used.
• Solid construction and good connection quality for a secure fit with 3/4' NPT piping.
• Upgradeable to remote reading and cloud metering for automated monitoring and alerts.
• Meets AWWA and ISO standards and includes factory calibration certificate options.

Cons

• Must be installed horizontally with the dial facing up; not suitable for pit mounting.
• Outdoor or buried installations require selecting a different IP68-rated model for long-term weather resistance.

Specifications

Model	AS200U-75
Connection	3/4' NPT couplings
Units	Gallons
Flow range	Min 0.25 GPM, Max normal 10 GPM
Accuracy	Approximately +/-1.5% within normal flow
Mounting	Horizontal inline with dial facing upwards
Standards	Conforms to AWWA and ISO 4064

Our Verdict

The DAE AS200U-75 is a practical, well-built inline water meter ideal for indoor and protected installations where accurate gallon readings and easy mechanical reads are important. For landlords or small facilities wanting optional remote reading or cloud reporting, the available accessories make this meter a good value, provided the installation matches the horizontal, dial-up requirement.

Frequently Asked Questions

Can this meter be used outdoors?
It is not intended for outdoor or pit installations; choose an IP68-rated DAE model for exposed outdoor use.

Is remote reading available?
Yes, the meter can be paired with CO-10, AMR130, AMR systems or CC2030 gateway for remote or cloud metering, sold separately.

Will it fit garden hose connections?
Yes, use DAE CG-75 fittings to connect garden hoses to the 3/4' NPT couplings.
