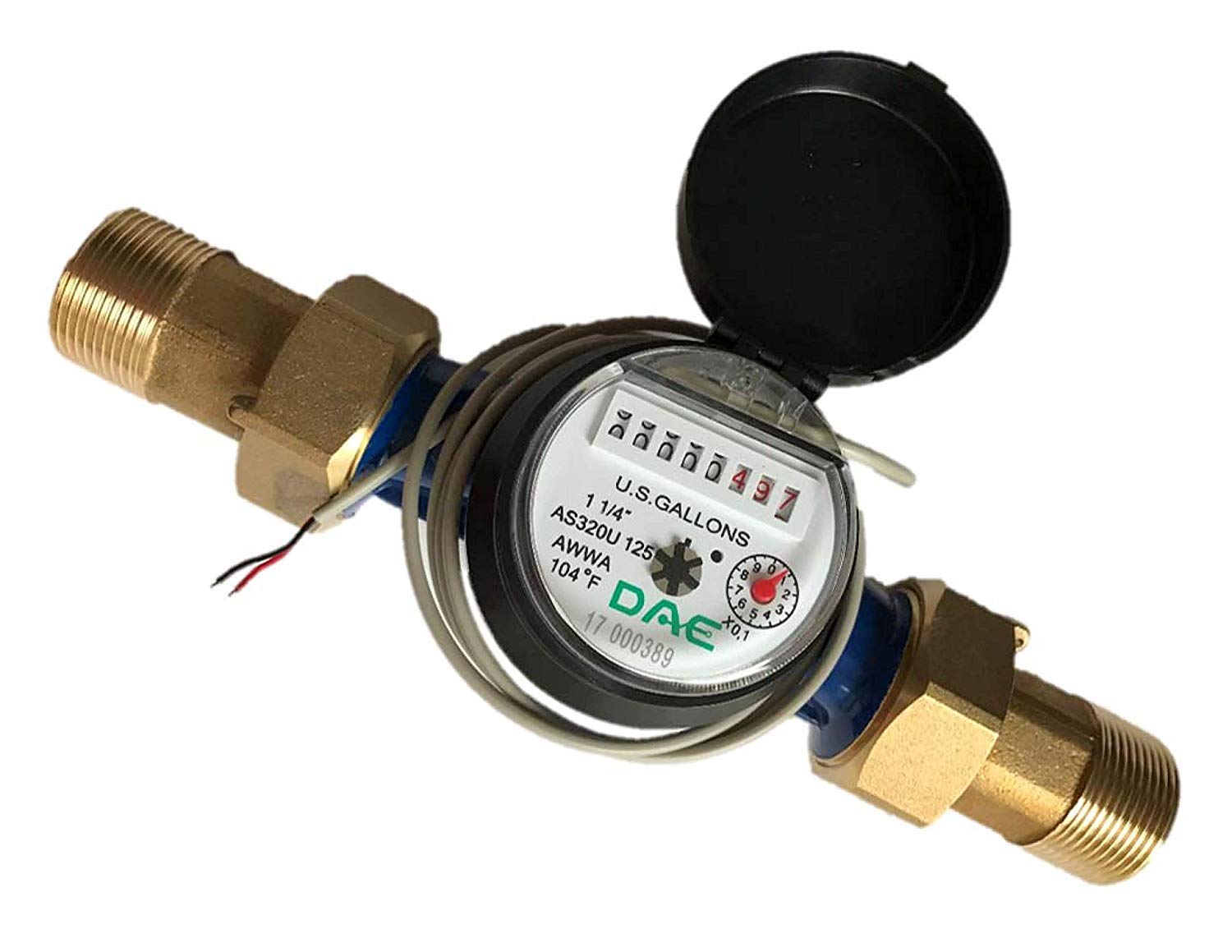

DAE AS320U-125P 1-1/4ft Water Meter with Pulse Output - Accurate

Our review of the DAE AS320U-125P finds it best suited for property managers, plumbers and facilities teams who need a reliable inline meter for clean city water and straightforward remote reading options. The single biggest reason to buy is its accurate gallon measurement with a pulse output that integrates easily into remote reading setups, making monthly billing and leak alerts practical without complex IT work. Installation is intended as a horizontal inline mount with the dial facing up, and its construction and calibration options make it attractive where accuracy and readability matter.

Key Features

• Horizontal inline mount: Designed to be installed horizontally with the dial facing upwards, which simplifies reading and routine checks.
• Pulse output: Provides an electronic pulse output for integration with counters or AMR modules to enable remote or automated reading.
• Cloud metering ready: Works with the DAE CC2030 Gateway and AMR modules so landlords can view real time usage, monthly reports and receive abnormal usage alerts by email.
• Wide flow range: Offers a maximum flow rate of 50 GPM, normal flow of 25 GPM and a minimum flow of 3/4 GPM to cover a range of domestic and light commercial needs.
• Factory calibration available: Comes with calibration certificates on request, supporting accurate billing or tenant chargebacks.
• Standards compliance: Conforms to AWWA and ISO 4064 for measuring clean city water, supporting acceptance in many installations.

Who It's For

This meter is aimed at property managers, small commercial sites and plumbers installing metering for tenant billing or water monitoring where the pipe run allows a horizontal inline installation and the medium is clean city water. The pulse output and compatibility with DAE AMR and CO-10 counters make it attractive for anyone wanting low-effort remote reading or simple ethernet-linked cloud reporting.

Those who need fully submersible or pit-rated meters, or meters that must be mounted vertically with the same dial orientation, should look instead at the IP68-rated or VM series alternatives mentioned by the manufacturer. This product is not recommended for pit applications or uncontrolled outdoor exposure without a suitable enclosure.

Pros & Cons

Pros

• Accurate gallon measurement with factory calibration available for reliable billing and tracking.
• Pulse output and compatibility with DAE CO-10, AMR130 and CC2030 make remote reading and cloud metering straightforward.
• Clear, easy-to-read dial and solid build quality cited by users for durability and readability.
• Good flow range for residential and light commercial applications up to 50 GPM.

Cons

• Requires horizontal inline installation with dial up; not suitable for pit or vertical mounting without choosing a different model.
• Outdoor use may require an IP68-rated alternative or additional protection for long-term exposure.

Specifications

Model	AS320U-125P
Size	1-1/4' (1.25 in)
Measurement Unit	Gallon
Flow Rates	Max 50 GPM, Normal 25 GPM, Min 3/4 GPM
Accuracy	+/-1.5% within normal flow (AWWA)
Mounting	Horizontal inline, dial facing upwards
Outputs	Pulse output for remote reading

Our Verdict

The DAE AS320U-125P is a practical, accurate inline water meter for clean city water where horizontal installation is acceptable; its pulse output and compatibility with CO-10 and AMR/CC2030 systems deliver effective remote reading and cloud reporting at modest cost, making it good value for property managers and small commercial users who need reliable metering and easy integration.

Frequently Asked Questions

Can this meter be installed vertically?
The AS320U-125P is designed for horizontal inline installation with the dial facing up; for vertical installation options refer to the VM-125P model.

Can I use this meter for outdoor or pit mounting?
This meter is not intended for pit applications or unprotected outdoor exposure; choose an IP68-rated DAE model for outdoor or submerged installations.

How do I enable remote cloud metering?
Use the DAE CC2030 Gateway with AMR modules or the AMR130AN for a single meter; the gateway sends data over Ethernet for cloud access and alerts.
