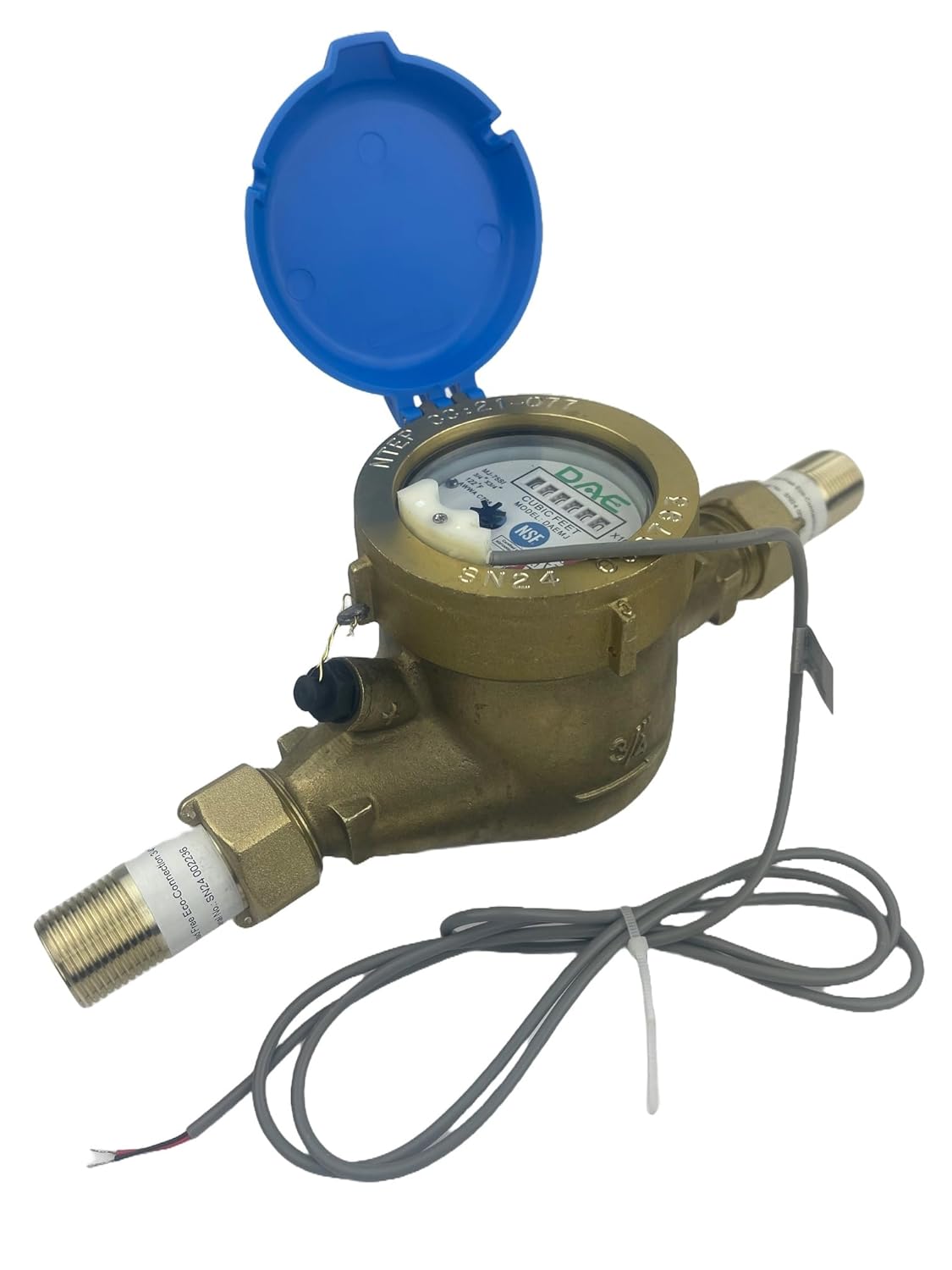

DAE MJ-75Sf Lead Free Water Meter with Pulse Output Features

The DAE MJ-75Sf Lead Free Water Meter is designed for optimal performance and reliability in water measurement. With its horizontal inline mount and dial facing upwards, this meter is perfect for various installations. If you need to install it vertically with water flowing upwards, consider the DAE PD-75 model, which offers versatile positioning options. However, please note that this meter is not suitable for pit applications.

One of the standout features of the DAE MJ-75Sf is its National NTEP approval, ensuring accuracy and repeatability as verified by the Utah Water Research Lab. This certification is recognized across all states, including California, which accepts both NTEP and CTEP standards. Additionally, the meter is certified by NSF to meet ANSI/NSF 61 for material safety and ANSI/NSF 372 for lead-free plumbing, complying with the US Safe Drinking Water Act.

For those interested in advanced monitoring, the cloud metering option is available with the DAE CC2030 Gateway. This innovative feature allows landlords to collect water usage data from multiple meters and send it to a cloud server via Ethernet. Users can access real-time data, monthly water usage, and billing reports through a PC or cell phone. In case of abnormal usage, such as a broken pipe, an email alert will be sent directly to your cell phone, ensuring you stay informed without needing an IT professional.

The DAE MJ-75Sf is also compatible with the CO-10 Electronic Pulse Counter or CO-10 KIT, providing an affordable remote reading solution. It can work seamlessly with the DAE AMR130 Auto Meter Reading Module for single meters or the AMR for up to 16 meters. Please note that the CO-10 or AMR130 must be purchased separately.

In terms of performance, this water meter boasts an impressive accuracy of +/-1.5% within the normal flow rate range, adhering to AWWA standards. It has a safe maximum flow rate of 160.42 cu ft/h (20 GPM) and a recommended maximum continuous flow rate of 80.21 cu ft/h (10 GPM). The minimum test flow rate is 2.01 cu ft/h (0.25 GPM), while the normal test flow limits range from 8.02 to 160.42 cu ft/h (1-20 GPM).

Overall, the DAE MJ-75Sf Lead Free Water Meter is an excellent choice for those seeking a reliable, accurate, and feature-rich water metering solution. With its certifications, cloud capabilities, and user-friendly design, it stands out as a top option for both residential and commercial applications.
