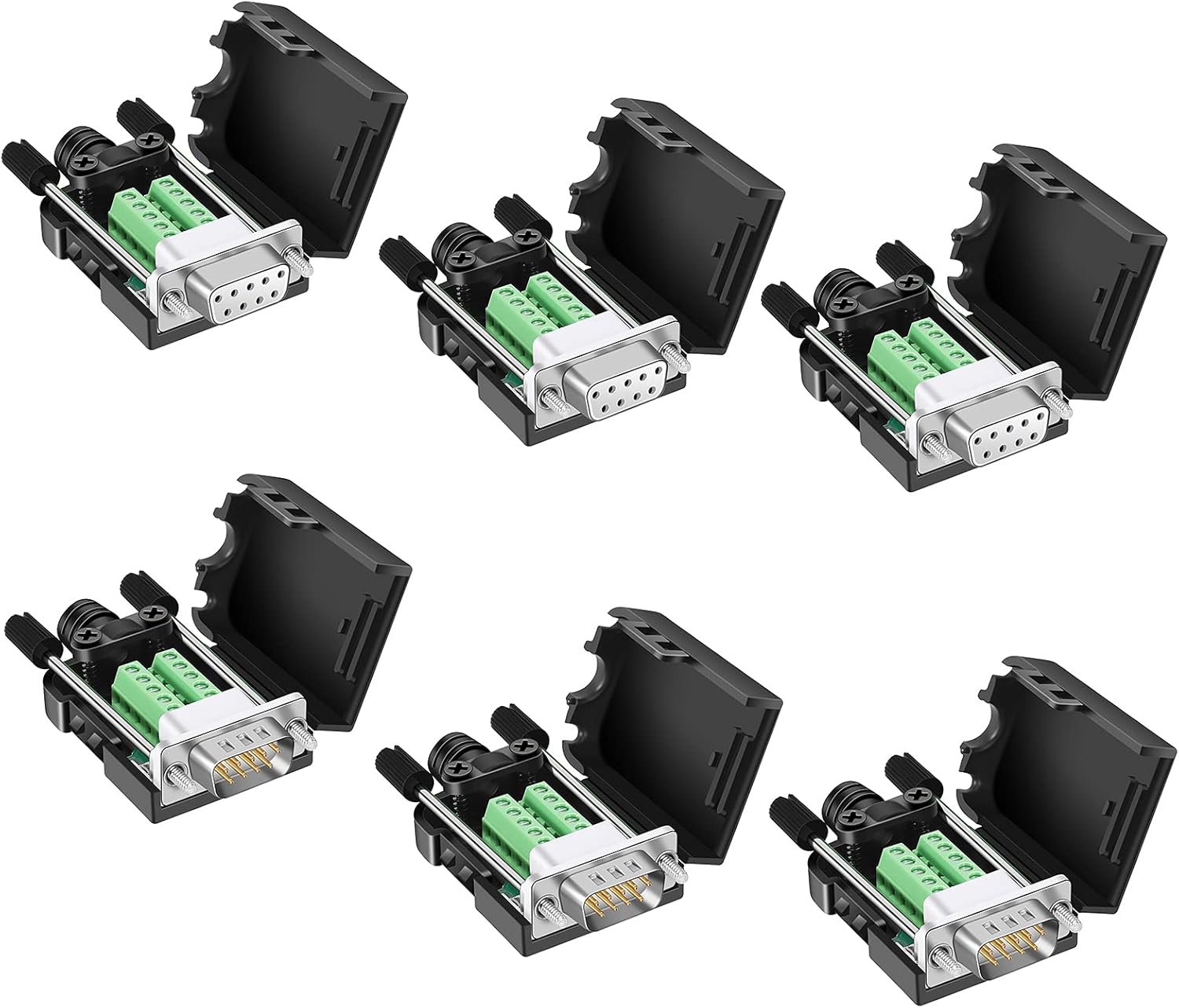

DB9 Solderless Connector (3Male+3Female) - Compact DB9 Breakout

In this review of the DB9 Solderless Connector (3Male+3Female) the bottom line is simple: this is a compact, durable DB9 breakout intended for technicians and hobbyists who need quick, reliable RS232 terminations without soldering. The reviewer found the unit to be particularly useful when retrofitting industrial control gear or prototyping serial connections because of its thin 16mm case, clearly labeled signal ports, and solderless copper-plated joints that simplify wiring and preserve signal integrity.

Key Features

• Solderless design: The screw-type terminals allow fast wiring and rework without soldering, saving time during field service and prototyping.
• Thinner 16mm case: The slim housing makes the connector easier to mount in tight enclosures and allows more flexible cable routing than bulkier DB9 shells.
• Copper plated joints: Internal copper contacts with solid solder joints and 24K gold plating provide dependable connectivity and resistance to corrosion.
• Clear labeling: Signal ports are labeled on both sides for quick, error-free wiring when working with RS232 devices like modems and PLCs.
• RoHS compliant materials: Lead-free solder and PP engineering housing increase durability and meet environmental standards for electronics projects.
• Accessory pack included: The kit ships with screws, bolts, cable plates and a screwdriver so it is ready to install out of the box.

Who It's For

This DB9 breakout is aimed at electricians, field service technicians, and makers who frequently connect RS232 devices such as PTZ camera controllers, PLCs, barcode machines, or set-top box interfaces. Its tool-free wiring approach and compact profile are well suited to retrofit work and bench testing where you need a reliable temporary or semi-permanent connection.

Those who need sealed, ruggedized outdoor connectors or integrated cable assemblies with molded overmolds should look elsewhere, since this product is a compact solderless breakout designed for indoor electronics, control cabinets, and lab use rather than heavy weatherproofing.

Pros & Cons

Pros

• Easy, tool-assisted assembly and disassembly for quick repairs and reconfiguration.
• Thin 16mm shell reduces space requirements and improves mounting flexibility.
• Durable copper-plated contacts and gold plating for corrosion resistance and stable signals.
• Complete accessory kit allows immediate installation without extra parts.

Cons

• Not designed for harsh outdoor environments or IP-rated sealing, so additional protection is required for exposed installations.
• The compact size can feel small for very large gauge wires near the 16 AWG end of the terminal range.

Specifications

Connector type	DB9 solderless breakout (3 male + 3 female)
Dimensions	47 x 34 x 16mm (1.85 x 1.34 x 0.63 in)
Contact material	Copper plated joints, 24K gold-plated connector
Wire range	16-26 AWG
Housing material	RoHS PP engineering material
Included items	Screwdriver, screws, bolts, wire covers, cable pressing plates, 3 female and 3 male DB9

Our Verdict

The DB9 Solderless Connector (3Male+3Female) is a practical, well-made breakout for anyone who needs quick RS232 terminations with minimal fuss. Its thinner 16mm case, clear labeling, and gold-plated copper joints deliver reliable connections and good value for in-cabinet work, bench testing, and equipment retrofits, though it is not intended for outdoor sealing or heavy environmental exposure.

Frequently Asked Questions

Can I use this with PLCs and barcode machines?
Yes. The connector is explicitly compatible with industrial communication devices such as PLCs, barcode machines, modems and PTZ controllers.

What wire sizes fit the terminals?
The terminal range supports 16-26 AWG; larger 16 AWG wires fit but leave less clearance in the compact housing.

Is the connector RoHS compliant?
Yes. The product uses lead-free solder and RoHS-compliant materials, including a PP engineering housing.
