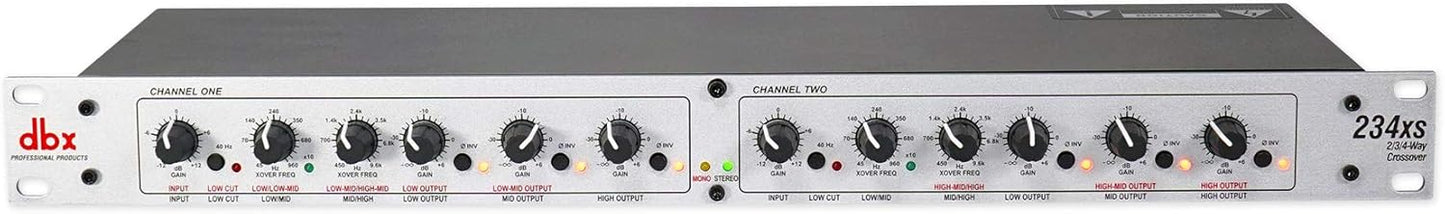

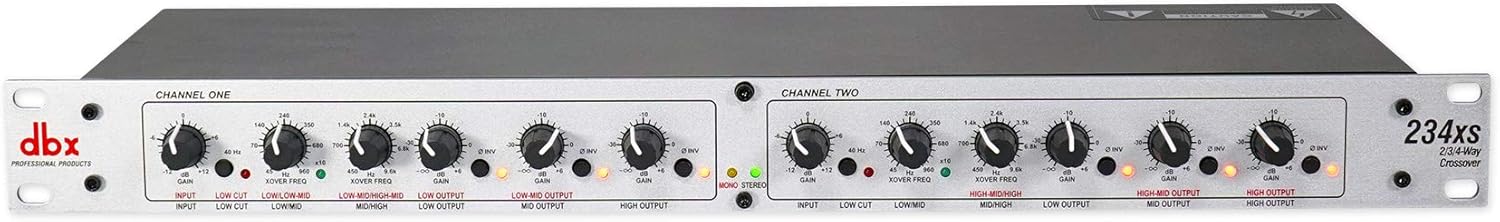

dbx 234xs Stereo 2-Way, Mono 4-Way Crossover - Precise PA Control

In this review the dbx 234xs is examined as a practical crossover for live PA rigs and studio patchbays; it is aimed at engineers who need clean, reliable frequency splitting with balanced connectivity. The single biggest reason to buy is the combination of rugged, low-noise performance and flexible routing options - the unit can operate as a stereo 2-way or a mono 4-way with summed low-frequency output for subs, giving a straightforward path to tighter sound and less amplifier strain. The review focuses on real-world setup, tonal clarity, and control options.

Key Features

• XLR balanced ins and outs: Balanced XLR connectors reduce hum and noise when integrated into pro live or studio signal chains.
• Mode switches for flexible operation: Switch between stereo 2-way, stereo 3-way and mono 4-way modes to match the speaker system and signal routing you need.
• Low frequency summed output: The dedicated summed low output simplifies sending a clean subwoofer feed without extra mixing gear.
• x10 range switch on both channels: The x10 range switch expands the crossover frequency range for fine-tuning driver handoff points in diverse systems.
• 40Hz high pass filter: Built-in 40Hz low-cut protects small speakers and tightens low-end response by removing infrasonic content.
• Precision Linkwitz-Riley filters: 24dB per octave filters provide steep, phase-coherent slopes for accurate driver separation.

Who It's For

The dbx 234xs suits live sound engineers, small-venue PA operators, and project studios that need a straightforward, high-quality analog crossover with professional connections. Its balanced XLR I/O and robust filter topology make it a good match for touring rigs and permanent installs where reliability matters.

Those who need digital control, presets, or matching DSP loudspeaker alignment features should look elsewhere; the 234xs is an analogue tool focused on clean signal division and hands-on switching rather than networked remote control.

Pros & Cons

Pros

• High-quality balanced XLR I/O keeps noise low in pro audio setups.
• Flexible mode switching allows stereo 2-way, stereo 3-way or mono 4-way operation for a range of systems.
• Summed low output makes adding a subwoofer simple and effective.
• Linkwitz-Riley 24dB filters produce tight, coherent driver handoffs and improved clarity.

Cons

• No onboard digital control or recallable presets, so adjustments are manual.
• Limited to the fixed 40Hz high pass option for low-cut protection without selectable frequencies.

Specifications

Product Type	Stereo 2-way / Mono 4-way crossover
Inputs / Outputs	Balanced XLR ins and outs
Filter Topology	Linkwitz-Riley 24dB per octave
Special Outputs	Low frequency summed (subwoofer) output
Range Control	x10 range switch on both channels
Low Cut	40Hz high pass filter on both channels
Operation Modes	Stereo 2-way, stereo 3-way, mono 4-way

Our Verdict

The dbx 234xs is a solid analogue crossover for engineers who value low-noise, reliable frequency splitting and flexible routing between stereo and mono multi-way modes. Its balanced XLR I/O, summed low output, and steep Linkwitz-Riley filters produce clear, useful results for PA and studio use, making it good value for anyone who needs hands-on, professional crossover control without DSP bells and whistles.

Frequently Asked Questions

Can the unit feed a dedicated subwoofer output?
Yes; the 234xs provides a dedicated low frequency summed output designed for connecting a subwoofer.

Is remote control or presets available?
No; the unit is an analog crossover with manual switches and does not include digital control or recallable presets.

What filter slope and type does it use?
The crossover uses Linkwitz-Riley filters at 24dB per octave for each band to ensure coherent driver handoffs.
