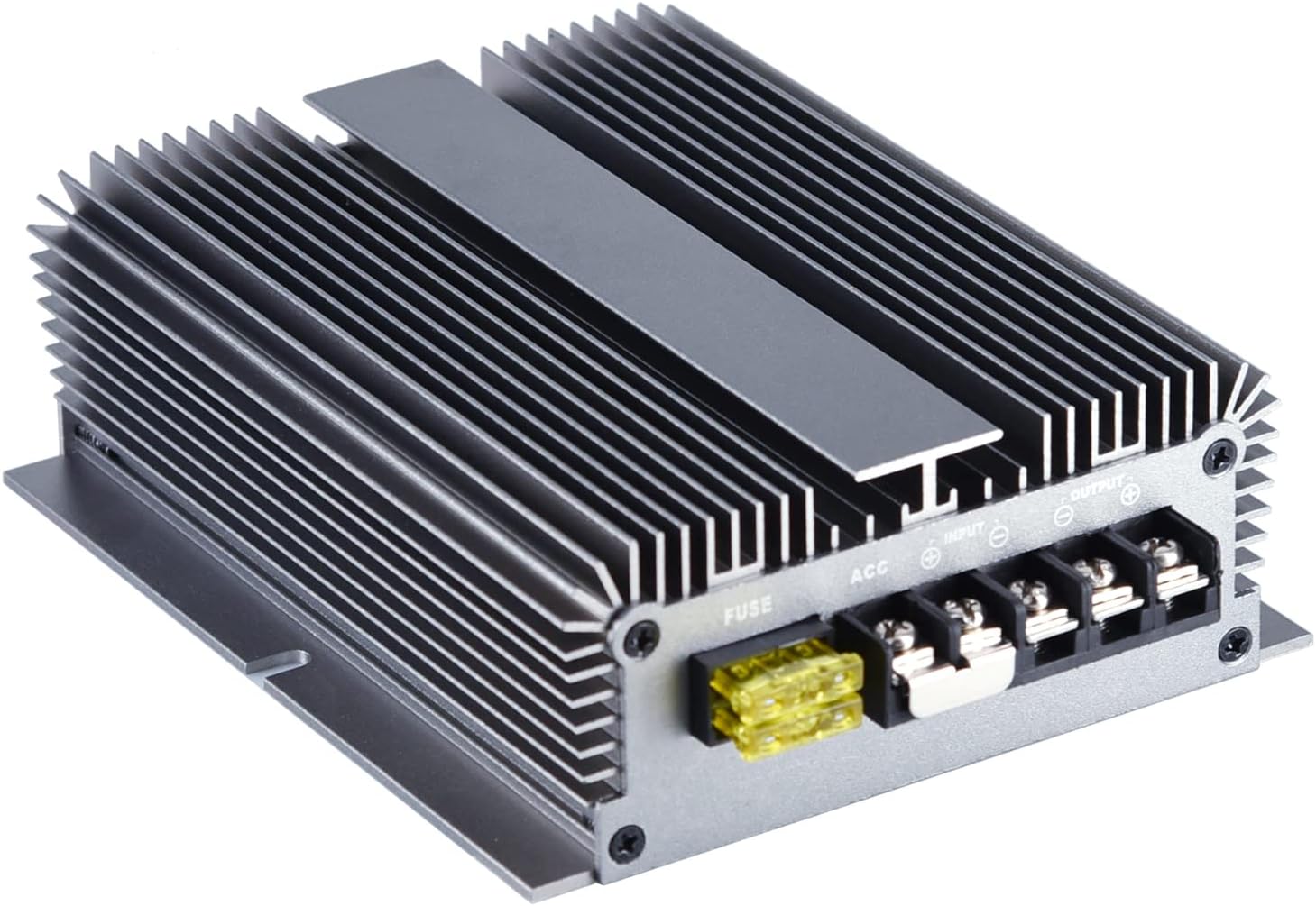

DC 40V-90V to 12V 50A Converter Voltage Regulator - 600W Step Down

In this review the focus is on a heavy-duty step down converter intended for vehicles and larger DC systems. The unit is best for users who need a stable 12V supply from high-voltage battery packs - golf carts, club cars and trucks are obvious examples - because it delivers a fixed DC 12V output at up to 50A and 600W continuous power. The reviewer found the build and protection set practical for mobile and outdoor use, and the core reason to buy is the combination of high conversion efficiency and a sealed aluminum case for durability.

Key Features

• Wide input range: Accepts DC 40V-90V so it works with 48V, 60V and 72V battery systems without modification.
• High continuous output: Provides a fixed DC 12V at up to 50A for accessories that require substantial current, supporting up to 600W of load.
• Efficient conversion: Uses synchronous rectification technology with up to about 95% conversion efficiency to reduce heat and increase run time on battery systems.
• Robust protections: Built-in overload, over-current, over-temperature, short-circuit and over-voltage protection helps protect both the converter and connected devices.
• Weather resistant enclosure: Die-cast aluminum shell with silicone sealing provides waterproofing, dust resistance and improved shock tolerance for mobile use.

Who It's For

This converter is aimed at hobbyists and professionals who run accessories from nonstandard battery voltages - owners of golf carts, club cars, trucks, and campers who need a reliable 12V rail for lights, radios or small electronics will benefit most. Installers who need a simple, fixed-voltage, high-current DC supply without extra settings will also appreciate the unit.

It is less suitable for projects that require an adjustable 12V output or for charging batteries; the device is explicitly not a charger and should not be connected to solar panels, PWM/MPPT controllers, inverters or wind turbines. Users needing tight +/-0.1V regulation under every condition may want to verify performance against their tolerance.

Pros & Cons

Pros

• High continuous power and stable design allow powering multiple 12V accessories from high-voltage packs.
• Efficient conversion reduces heat and battery drain compared with less efficient regulators.
• Solid mechanical design with silicone sealing makes it suitable for outdoor and mobile installs.
• Multiple safety protections reduce the risk of damage from common faults.

Cons

• Output is fixed at 12V and not adjustable, which limits flexibility for niche loads.
• Some users report mixed temperature behaviour under load, so active ventilation or spacing is recommended.

Specifications

Input Voltage Range	DC 40V-90V
Output Voltage	DC 12V (fixed)
Output Current	50A
Output Power	600W
Efficiency	97% (half load), 95% (full load)
Operating Temperature	-40 to 85C
Dimensions	150 x 130 x 50mm

Our Verdict

The converter is a practical, value-oriented option for anyone needing a reliable 12V supply from 48V to 72V style battery packs; its high efficiency and rugged sealed case make it especially good for mobile and outdoor installations. Buyers who need adjustable outputs or a charger function should look elsewhere, but for fixed 12V high-current applications this unit delivers a solid balance of power, protection and durability.

Frequently Asked Questions

Can this be used to charge a 12V battery?
No. The manufacturer cautions that this unit must not be used for charging batteries.

Will it work with solar or MPPT controllers?
No. Do not connect to solar panels, PWM/MPPT controllers, inverters or wind turbines.

How should it be wired?
Connect OUTPUT+ to LOAD+ and OUTPUT- to LOAD-, then INPUT+ to BAT+ and INPUT- to BAT-; use appropriately sized cables and maintain correct polarity.
