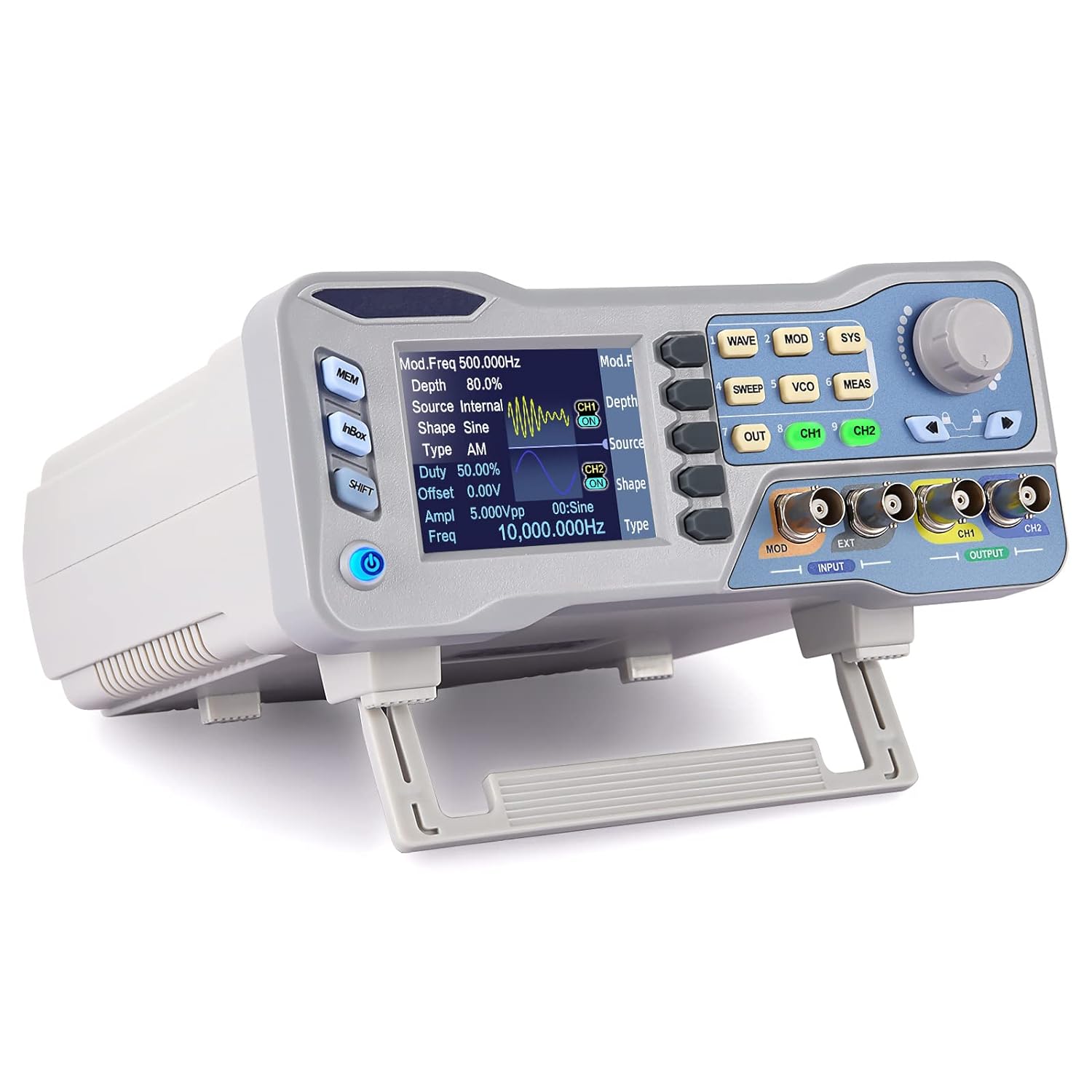

DDS Signal Generator Counter 80MHz Dual-Channel - Precision Waveform

In this review the Koolertron DDS Signal Generator Counter is evaluated as a practical, feature-rich benchtop instrument for engineers, educators and makers who need stable, programmable waveform outputs. The single biggest reason to buy is the combination of dual-channel DDS outputs with a 275MSa/s capability and mobile app control, which together deliver flexible arbitrary waveform creation and repeatable frequency measurements for lab, teaching or production tasks.

Key Features

• Dual-channel DDS: Each channel can be set independently to produce precise sine, square, triangle, sawtooth, pulse or user-defined waveforms for flexible test setups.
• High sampling rate: A 275MSa/s sampling rate with 14-bit vertical resolution gives good fidelity for generated waveforms and supports sine outputs to 80MHz for many RF and debugging tasks.
• Arbitrary waveform support: PC software and a communication protocol let users draw, import and export custom waveforms and perform secondary development for automated workflows.
• Mobile control: The unit can be paired with a mobile phone app to view measurements and set all functions remotely, making bench control convenient and fast.
• Measurement functions: Built-in frequency, period, pulse width and counting functions provide quick verification of signals without additional instruments.
• State storage: User can save up to 100 instrument state parameter sets to recall common configurations instantly.

Who It's For

The Koolertron DDS generator is best for electronic engineers, lab technicians and educators who need a compact, programmable function generator that can produce a wide variety of waveforms and store presets. The mobile app and PC software support make it useful for development benches and classrooms where sharing and importing waveforms is common.

Hobbyists with ambitious signal needs will appreciate the arbitrary waveform features, but those requiring ultra-high-end RF performance or lab-grade low-noise measurements should look to dedicated laboratory signal generators with specified phase noise and lower distortion figures.

Pros & Cons

Pros

• Flexible dual-channel outputs and a long list of waveform types make it versatile for many test scenarios.
• Mobile app and PC software support simplify control and arbitrary waveform import/export.
• Good value for money given 275MSa/s sampling, 14-bit resolution and 80MHz sine output capability.

Cons

• Some users reported mixed waveform quality in specific modes such as square wave, so outputs may require verification for sensitive applications.
• The unit's weight has differing user opinions, which could affect portable use for some buyers.

Specifications

Our Verdict

The Koolertron DDS Signal Generator Counter is a strong midrange choice for users who need a programmable, dual-channel generator with arbitrary waveform support and mobile control. It delivers excellent value with its sampling rate, resolution and storage features, making it a practical tool for education, prototyping and production testing, while users needing the cleanest possible square wave or the lightest portable unit should verify performance for their specific needs.

Frequently Asked Questions

Can the unit be operated without a computer?
Yes. The instrument can perform all functions standalone; PC software is optional for drawing and importing arbitrary waveforms.

What outputs and waveforms are available?
It provides dual-channel DDS and TTL outputs with sine, square, triangle, sawtooth, pulse, white noise and user-defined waveforms.

How many presets can be saved?
The generator can store up to 100 user instrument state parameter sets for quick recall.
