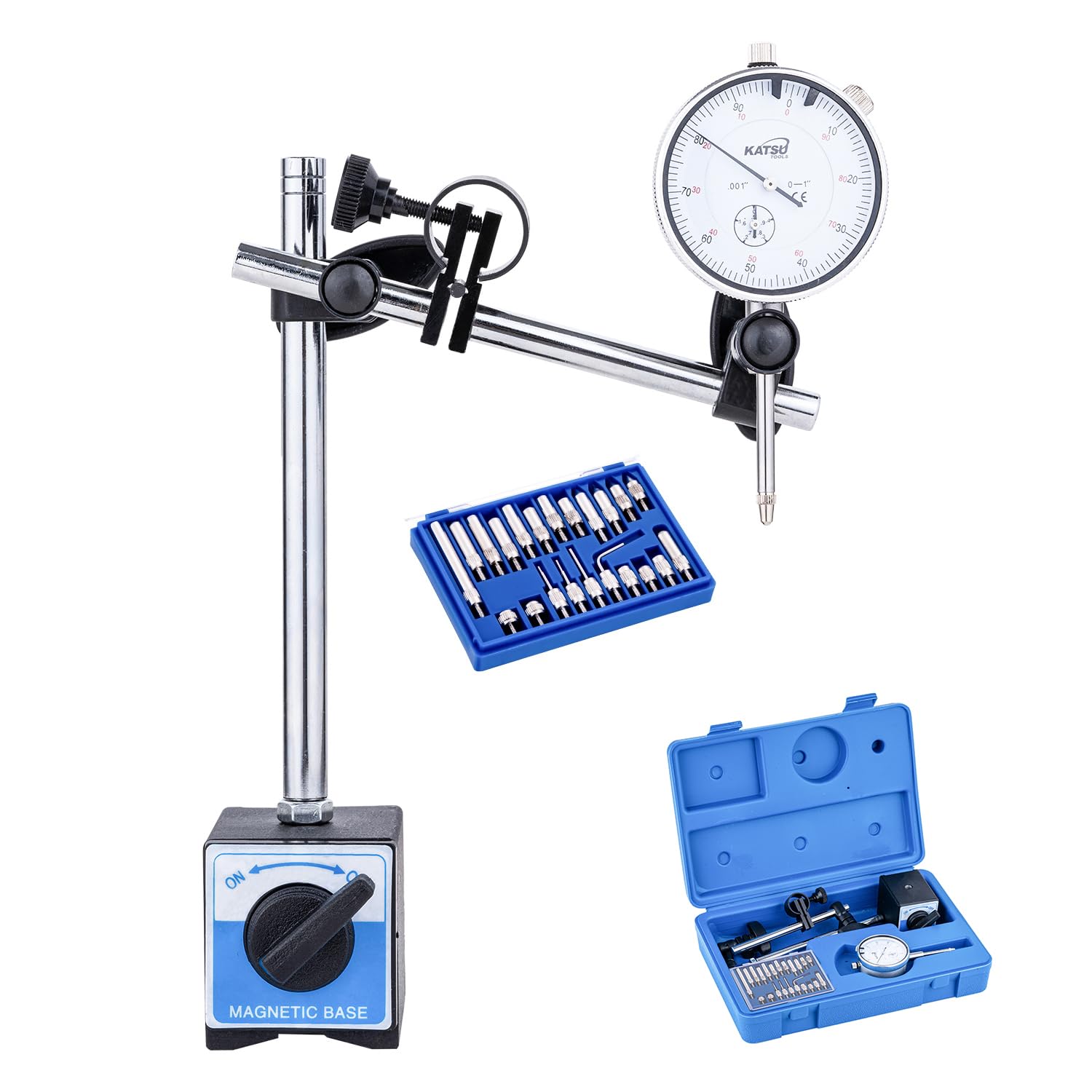

Dial Indicator with Magnetic Base and 22 Points Set - Precision

In this review the tester kit is evaluated for machinists and automotive technicians who need a compact, accurate dial indicator set. The bottom line: this kit combines a 0-1.0in range with 0.001in resolution and a strong magnetic base into a single, portable storage case, making it a sensible choice when repeatable, small-displacement measurement is required on the shop floor. The review focuses on build, ease of setup and the practical value of the included 22 indicator points for varied inspection tasks.

Key Features

• 0-1.0in measuring range: Provides a full inch of travel suitable for common alignment and runout checks on engine parts and fixtures.
• 0.001in accuracy: Delivers fine resolution for precision jobs where small variations matter, such as bearing or shaft inspection.
• 22-piece indicator points set: Offers a variety of contact tips so the indicator can be adapted to different shapes and reach requirements without improvisation.
• Magnetic base with 132lbs holding power: Secures the assembly to ferrous surfaces and reduces movement during measurement for steadier readings.
• Fine-adjustment long arm and cross arm: Allows multi-angle positioning and micro-adjustment of the indicator face for exact alignment to the measured surface.

Who It's For

This kit is aimed at professional mechanics, toolroom technicians and hobbyist machinists who need a modestly priced, portable gauge for setup, runout checks, and comparative measurement. The combination of a strong magnetic base and a comprehensive tip set makes it useful for automotive brake, rotor and suspension checks as well as small-part inspection in metalworking.

Less suitable are users who require metrology-grade calibration certificates or inch-to-metric interchangeable graduations built into the instrument; laboratory metrology applications or calibration labs should consider traceable, certified indicators from dedicated metrology suppliers instead.

Pros & Cons

Pros

• Solid magnetic base with on/off control and two magnetic faces keeps the setup stable during readings.
• Included 22 indicator points increase versatility and reduce downtime changing contacts.
• Fine adjustment and long arm give precise positioning for awkward angles and tight spaces.
• Convenient storage case keeps the indicator and accessories organized and transportable.

Cons

• The kit does not include a calibration certificate, so it may need verification for formal quality-control use.

Specifications

Measuring range	0-1.0in
Resolution/Accuracy	0.001in
Indicator points	22-piece set
Magnetic base holding power	132lbs (60kg)
Base faces	Bottom and back (switch on/off)
Included case	Handy storage case

Our Verdict

This dial indicator kit is a practical, good-value tool for workshop and garage use, offering fine 0.001in resolution, a broad set of contact points and a powerful magnetic base for stable measurements. It is recommended for mechanics and machinists who need a portable, versatile measuring setup; those needing certified calibration should plan to verify accuracy before use in controlled QC workflows.

Frequently Asked Questions

Does the kit include different contact tips?
Yes, it ships with a 22-piece indicator points set to cover a variety of contact geometries and reach situations.

How strong is the magnetic base?
The magnetic base has a rated holding power of 132lbs (60kg) and includes an on/off switch plus two magnetic faces for positioning.

Is this suitable for calibration lab use?
The indicator offers 0.001in resolution but does not include a calibration certificate, so labs should obtain traceable calibration if required.
