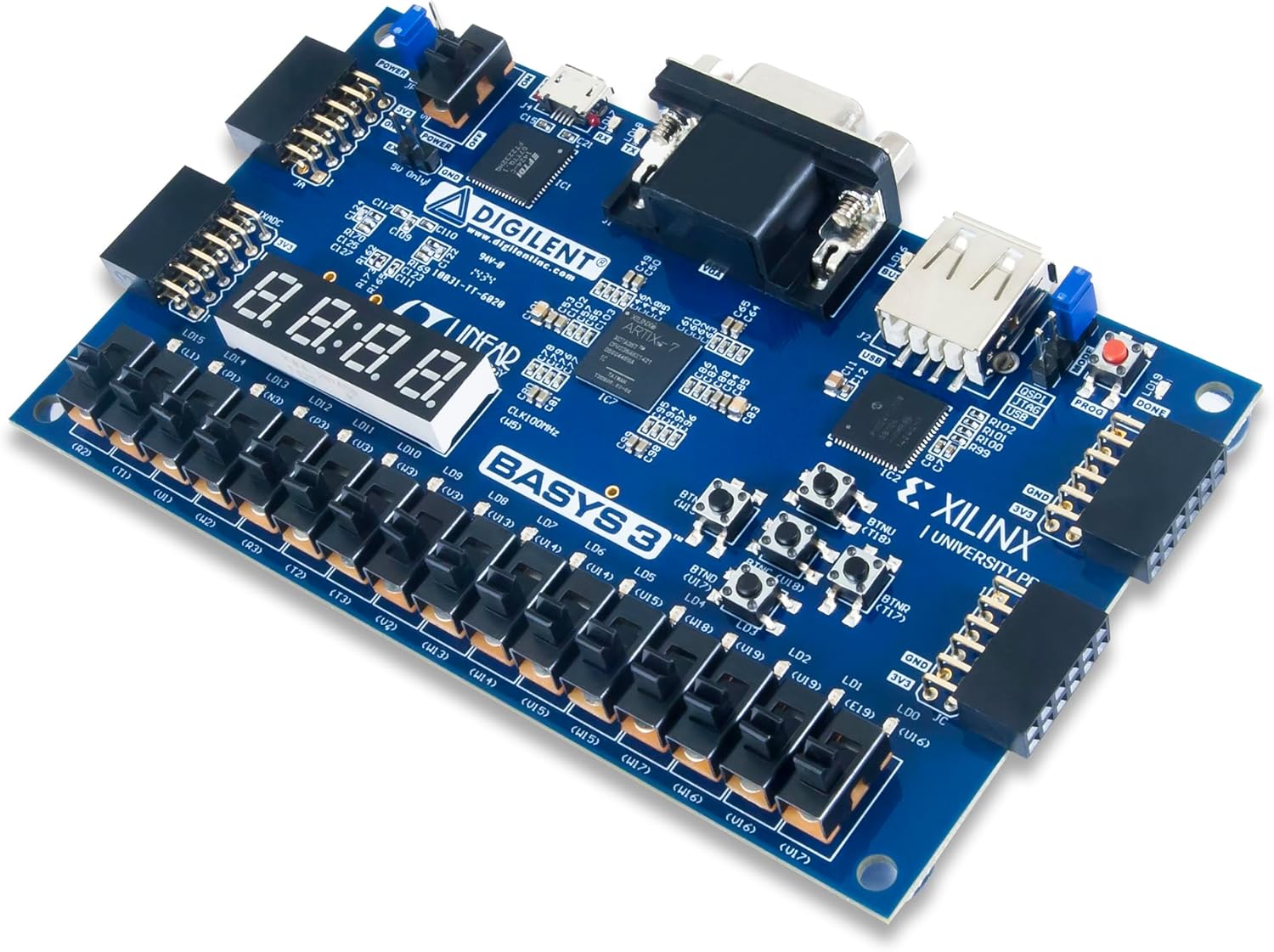

Digilent Basys 3 Artix-7 FPGA Trainer Board - Ideal for Beginners

In this review of the Digilent Basys 3 Artix-7 FPGA trainer board the bottom line is clear: it is a practical, classroom-ready learning board best suited to students and beginners who want hands-on experience with digital logic and FPGAs. The single biggest reason to buy is the board's focus on learning fundamentals: it uses the Xilinx Artix 7 FPGA and is compatible with the free Vivado Design Suite WebPACK Edition, which makes it straightforward to move from tutorials to real designs without needing expensive software. The review finds the hardware quality and I/O layout well matched to lab exercises, though buyers should note the package does not include a micro USB cable.

Key Features

• Xilinx Artix 7 FPGA: Provides a capable, real-world FPGA core that supports learning industry-standard workflows and synthesis tools.
• Vivado compatibility: Works with the Vivado Design Suite WebPACK Edition so students can use the same toolchain taught in many courses without extra cost.
• On-board user interfaces: Includes 16 user switches, 16 LEDs and 5 pushbuttons which let learners prototype and debug simple to moderately complex logic designs quickly.
• Pmod expansion: Four Pmod ports, including three standard 12-pin ports and one dual port, offer easy expansion for sensors, displays or communication modules used in projects.
• Educational focus: The board is designed with students and beginners in mind, making the layout and feature set approachable for classroom labs and self-study.

Who It's For

The Basys 3 is aimed at STEM students, hobbyists beginning FPGA development, and instructors building lab exercises who need a durable, well-documented trainer board with industry-compatible toolchain support. It is especially useful for those who want to learn digital logic fundamentals and move into synthesis, place-and-route and timing analysis with real FPGA hardware.

It is less appropriate for users who need a turnkey embedded system with on-board peripherals like Wi-Fi or an included USB cable, or for professional developers who require high-end FPGA capacity beyond an Artix 7 trainer device. Buyers should plan to supply a micro USB cable if one is not already available.

Pros & Cons

Pros

• Well suited to education with a clear set of on-board controls and indicators that make learning digital logic easier.
• Compatible with Vivado WebPACK Edition, allowing free access to the industry-standard toolchain.
• Multiple Pmod ports provide straightforward paths to expand projects with common add-ons and sensors.

Cons

• Does NOT ship with a micro USB cable, so a cable must be obtained separately.
• Some customers report mixed experiences around cable quality or missing cables from certain sellers.

Specifications

Product	Basys 3 Artix-7 FPGA trainer board
FPGA	Xilinx Artix 7
Toolchain	Vivado Design Suite WebPACK Edition compatible
On-board I/O	16 user switches, 16 LEDs, 5 user pushbuttons
Pmod ports	Four Pmod ports (three 12-pin, one dual)
Included cable	Does NOT ship with micro USB cable

Our Verdict

The Digilent Basys 3 is a strong educational FPGA trainer that gives students practical exposure to the Xilinx toolchain and real FPGA hardware at a reasonable value. Instructors and beginners will appreciate the clear I/O and Pmod expansion options, though buyers should note the missing micro USB cable and plan accordingly. For learning digital logic and basic FPGA workflows it is a sensible, cost-effective choice.

Frequently Asked Questions

Does the board work with free Xilinx tools?
Yes. The Basys 3 is compatible with the Vivado Design Suite WebPACK Edition, which is available as a free download from Xilinx.

Are cables and accessories included?
No. The product does NOT ship with a micro USB cable, so a compatible cable must be provided separately.

Can I expand the board with sensors and modules?
Yes. The board includes four Pmod ports (three standard 12-pin and one dual) to add sensors, displays and communication modules.
