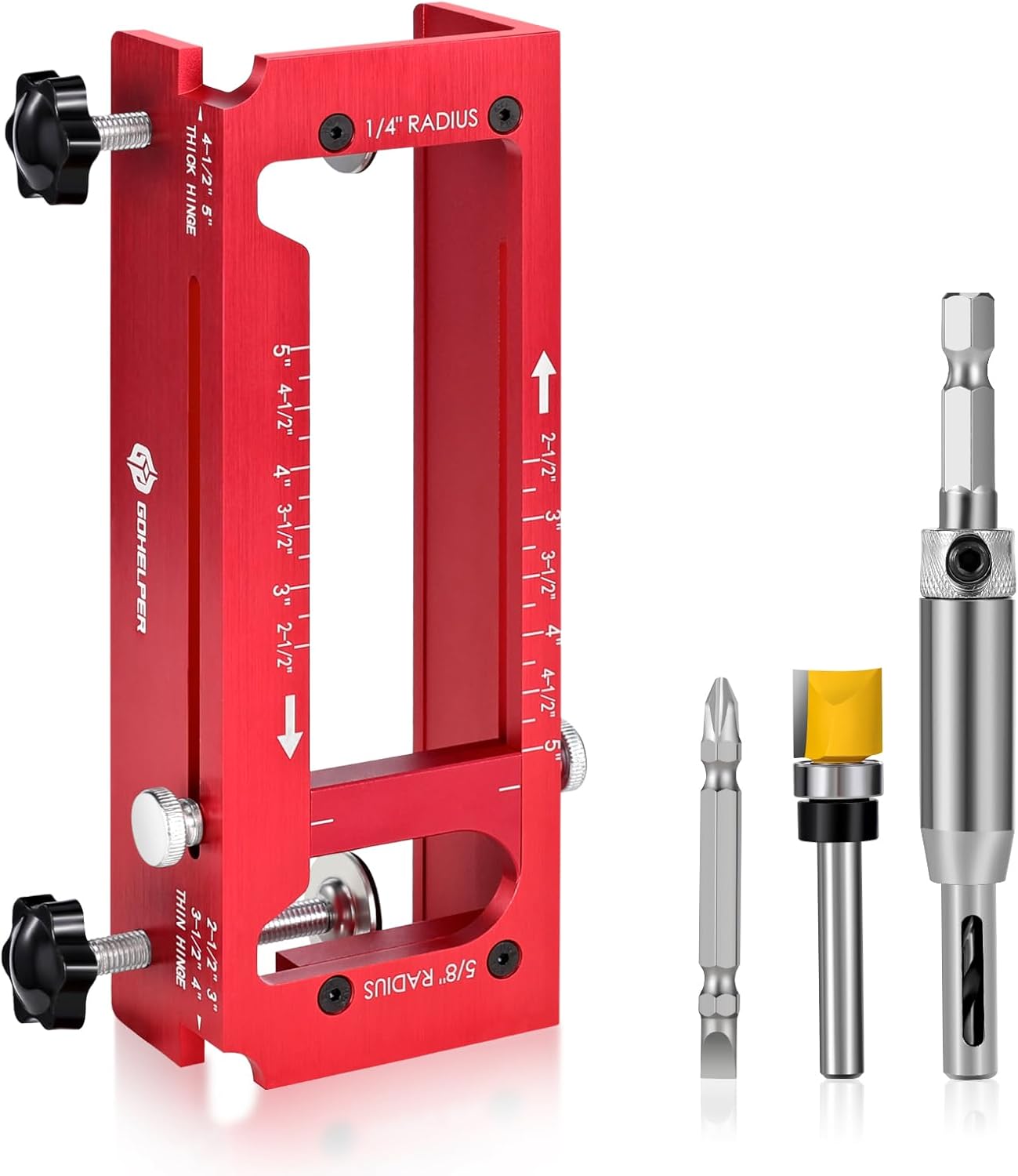

Door Hinge Jig Aluminum Alloy Template Kit - Precision Mortise Jig

In this review the Door Hinge Jig aluminum alloy template kit earns its place for homeowners and trade professionals who need repeatable, accurate hinge mortises. The single biggest reason to buy is its upgraded 6061 aluminum construction that resists deformation far better than plastic templates, so the jig holds alignment under a router and delivers consistent cuts. It is presented as a complete kit with bits and a user manual, making it a practical choice for those who want a durable, easy to use solution for fitting hinges from 2.5in to 5in.

Key Features

• Upgraded Aluminum Alloy Construction: Precision-machined 6061 aluminum with an anodized surface provides superior rigidity and longevity compared with plastic jigs.
• Wide Hinge Compatibility: Works with round radius hinges (1/4in and 5/8in) and can be used for square corner hinges when paired with a chisel, covering hinge lengths from 2.5in to 5in.
• Built-in Depth Gauge: The integrated gauge supports accurate mortise depths for both thin and thick hinges, reducing guesswork during routing.
• Included Bits and Tools: The kit includes a router bit, a self-centering hinge bit and a double-ended screwdriver bit so there are fewer trips to the tool box.
• Anti-Skid Stability: Silicone pads protect the door surface and keep the jig steady while routing, improving cut accuracy and reducing damage risk.

Who It's For

The jig is best suited to DIYers, carpenters and door installers who need a durable, dependable template for repeated hinge installations on interior and exterior doors. Its ease of use and included bits mean a novice can produce professional-looking mortises with minimal setup.

Those who should look elsewhere are users who need to rout hinge mortises on the jamb rather than the door, since this tool is intended to be used on the door only, or anyone who relies exclusively on automated CNC workflows instead of hand-held routing setups.

Pros & Cons

Pros

• Solid 6061 aluminum construction provides excellent stability and resists deformation under router pressure.
• Compatibility with 1/4in and 5/8in radius hinges plus square corners makes it versatile for most hinge types.
• Built-in depth gauge and included bits streamline setup and reduce the number of separate tools required.
• Silicone anti-skid pads help prevent slipping and protect the door surface during routing.

Cons

• Not intended for use on the jamb, so installers who need jamb work will need a different solution.
• Square corner hinges require a chisel to finish corners, adding a small extra step for those hinge types.

Specifications

Material	Precision-machined 6061 aluminum alloy, anodized
Compatible Hinge Lengths	2.5in to 5in
Radius Types	1/4in radius and 5/8in radius; square corner supported (chisel required)
Included Accessories	Router bit, self-centering hinge bit, double-ended screwdriver bit, user manual
Depth Adjustment	Built-in depth gauge for thin and thick hinges
Anti-Skid Feature	Silicone pads to protect door and improve stability

Our Verdict

The Door Hinge Jig aluminum template kit is a practical investment for anyone who fits multiple hinges and values repeatable precision and durability. With its solid 6061 construction, included bits and depth gauge, it saves time and produces cleaner mortises than plastic alternatives, making it good value for homeowners and professionals who rout on the door rather than the jamb.

Frequently Asked Questions

Can this jig be used on square corner hinges?
Yes, the template supports square corner hinges but you will need a chisel to finish the corners after routing.

Does the kit include router bits and other tools?
Yes, it ships with a router bit, a self-centering hinge bit and a double-ended screwdriver bit plus a user manual.

Can this jig be used on door jambs?
No, this jig is designed to be used on the door surface only and is not intended for jamb routing.
