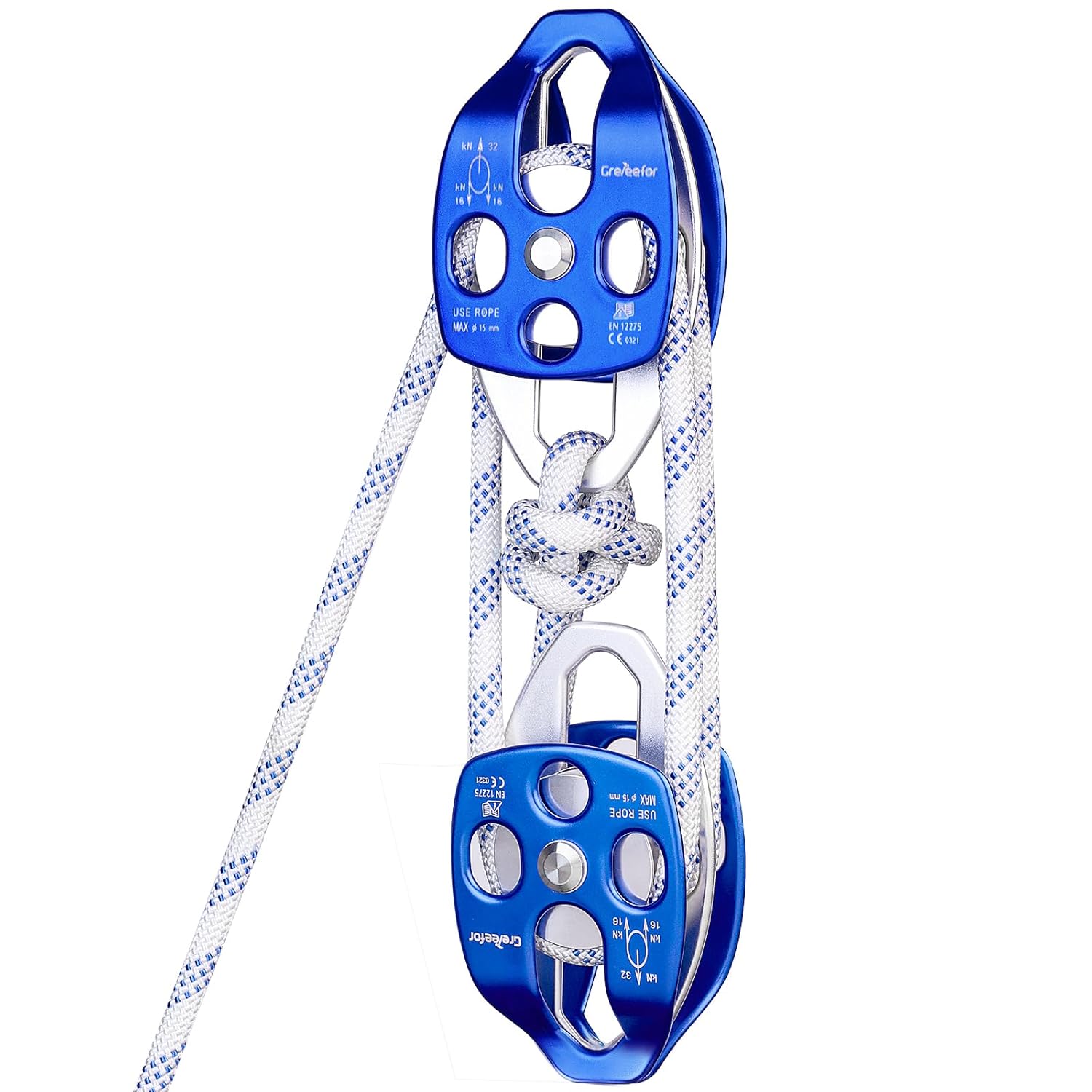

Double Block and Tackle Pulley System with 100ft Rope - 4:1 Lift

In this review of the Double Block and Tackle Pulley System with 100ft rope, the bottom line is simple: this is a practical, heavy-duty hoist for anyone who needs mechanical advantage without power. It suits homeowners, mechanics, hunters, and rescuers who need to lift or recover heavy loads with limited help. The single biggest reason to buy is the clear 4:1 effort reduction that turns a strenuous two-person lift into a controlled one-person operation, while the long 100ft polyester rope and forged aluminum blocks add durability and reach.

Key Features

• 4:1 Effort Reduction: The block and tackle configuration provides four times mechanical advantage so users lift heavy items with only a quarter of the applied force.
• High Breaking Strength Rope: The included 100ft x 1/2in polyester braided rope is rated at 35KN (7700 lb) for dependable strength and flexibility on long reaches.
• Forged Aluminum Pulleys: CE-certified dual pulley blocks are made from forged aluminum to resist rust and wear, giving smooth sheave action under load.
• Quick Assembly: Rotating plates and a swing side let the rope be installed or removed rapidly, making set up and teardown take only a minute or two.
• Versatile Use: The sheave block and tackle suits garage and attic hoisting, logging, vehicle and boat recovery, and rescue or training work where reliable lifting is required.

Who It's For

This system is best for DIY mechanics, hunters, small workshop owners, and outdoorsmen who need a portable, non-powered hoist that reduces effort and increases safety when moving heavy items. The long rope and robust pulleys make it a good choice for attic hoists, winch-free vehicle recovery, and boat or engine lifting.

It is less appropriate for permanent industrial overhead lifting where a dedicated winch, hoist, or rated rigging installation is required, or where a powered solution is preferred for repeated daily cycles. Users needing electric or automated lifting should look elsewhere.

Pros & Cons

Pros

• Significant effort reduction with a true 4x mechanical advantage for safer single-person lifts.
• Long, strong 100ft x 1/2in polyester rope rated at 35KN provides reach and high breaking strength for demanding tasks.
• Forged aluminum, CE-certified double pulleys resist corrosion and run smoothly under load.
• Fast to assemble and disassemble thanks to rotating plates and pre-drilled attachment points.

Cons

• Manual operation can still require careful rigging and deliberate handling for very heavy items; it is not a substitute for professional powered hoists.

Specifications

Rope length	100 ft (30 m)
Rope diameter	1/2 in (12 mm)
Rope breaking strength	35 KN (7700 lb)
Pulley type	Double sheave forged aluminum blocks
Rated load	32 KN (7200 lb)
Mechanical advantage	4:1 effort reduction

Our Verdict

The Double Block and Tackle Pulley System is a strong, practical solution for non-powered lifting where reach and mechanical advantage matter. With a long 100ft high-strength rope and forged aluminum pulleys, it offers solid durability and clear value for garage, attic, recovery, and outdoor uses. Buy it if you need dependable, portable lifting power without the complexity or cost of powered hoists.

Frequently Asked Questions

Can the rope handle repeated heavy lifts?
The 100ft polyester rope is rated at 35KN (7700 lb) and is designed for strong performance and flexibility, but inspect for wear and replace if damaged.

How quickly can it be set up?
Assembly is fast: the rotating plates and swing side allow rope installation in about a minute and disassembly in roughly 30 seconds.

What ropes work with the pulleys?
The 2in sheaves accept ropes up to 15mm (about 3/5 in), compatible with the supplied 1/2in rope for smooth operation.
