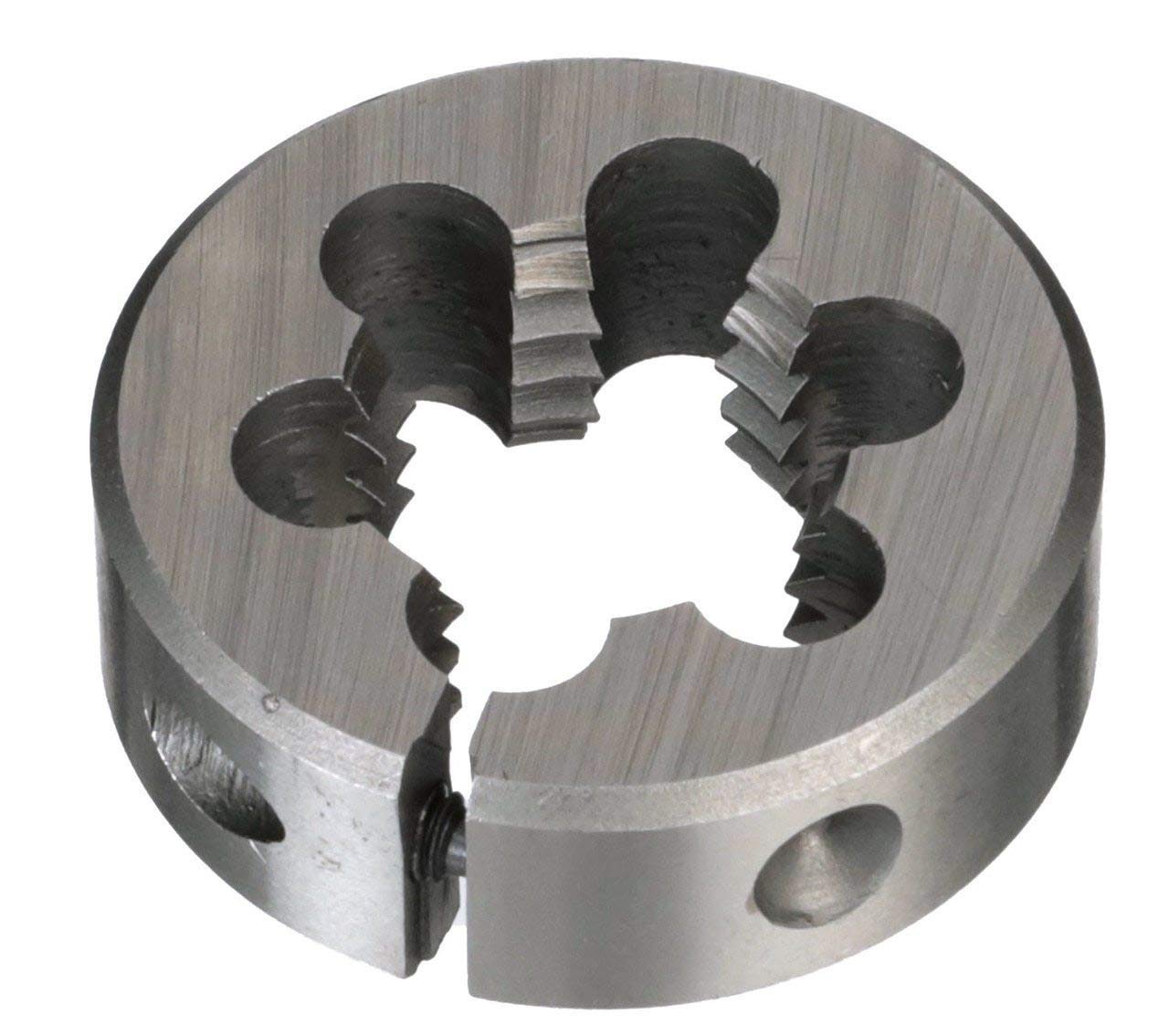

Drill America 1in-20 x 2in OD High Speed Steel Round Adjustable Die

In this review of the Drill America 1'-20 x 2' OD High Speed Steel Round Adjustable Die DWT Series, the bottom line is clear: this tool is for machinists and hobbyists who need a durable, adjustable round die that handles general purpose steel threading with good edge sharpness. The biggest reason to buy is the high-speed steel construction coupled with a fine-pitch adjustment screw, which together deliver a balance of wear resistance and control for cutting threads close to shoulders or on longer runs.

Key Features

• High-speed steel construction: Provides a combination of hardness and toughness for improved wear resistance across most general purpose applications.
• Right-hand cut: Designed to cut when rotated clockwise, matching standard machine and hand tool setups for predictable threading action.
• Dual chamfer faces: One face offers a 2 to 3 thread chamfer for starting threads and the opposite face has a 1 to 1-1/2 thread chamfer for threading close to a shoulder.
• Fine-pitch adjustment screw: Allows precise expansion or contraction of the die for controlling thread fit and compensation for wear.
• Beveled slot: Lets the die be adjusted in a machine holder with the adjusting screw removed, using the holder's screws for fine tuning.

Who It's For

This round adjustable die is aimed at professional machinists, maintenance technicians, and serious DIYers who need reliable threading on steel rod, tubing, or work held in a machine. Its HSS material and adjustable nature suit users who want to maintain good edge sharpness and tune thread fit over multiple jobs.

Those who primarily need left-hand threads, non-standard pitches, or a large production run with carbide tooling should look elsewhere; this die is best for versatile, general purpose work rather than high-volume specialized production.

Pros & Cons

Pros

• High-speed steel offers a solid balance of hardness and toughness for wear resistance in general use.
• The fine-pitch adjustment screw makes it straightforward to tweak thread fit as the die wears.
• Dual chamfer faces permit both standard threading starts and close-to-shoulder work without changing tools.
• Beveled slot supports machine-holder adjustment for more convenient setup in powered tooling.

Cons

• Some users report mixed results on thread finish and durability, so performance can vary with material and technique.
• The adjustment screw, while useful, may feel fiddly to users expecting rapid changes or in high-volume settings.

Specifications

Product	Round adjustable die, DWT Series
Size	1'-20 x 2' OD
Material	High-speed steel
Cut	Right-hand
Chamfer faces	2-3 thread chamfer and 1-1/2 to 1 thread chamfer
Adjustment	Fine-pitch screw, beveled slot for holder adjustment

Our Verdict

The Drill America DWT round adjustable die is a sensible choice for anyone needing a versatile, HSS threading die that can be tuned for fit and used near shoulders. It delivers good value when matched to general purpose steel work, offering sharp cutting and practical adjustability, though users seeking flawless, repeatable finish in high-volume production may prefer specialized tooling.

Frequently Asked Questions

Can this die be used in a powered machine?
Yes, the beveled slot and right-hand cut make it usable in machine holders; the adjusting screw can be removed and adjustment made via the holder.

What materials is it suitable for?
It is intended for general purpose applications and performs well on steel rod and similar materials thanks to the HSS construction.

How does the adjustment affect thread fit?
The fine-pitch screw forces the die sides apart or lets them spring together, allowing precise changes to thread tightness and compensating for wear.
