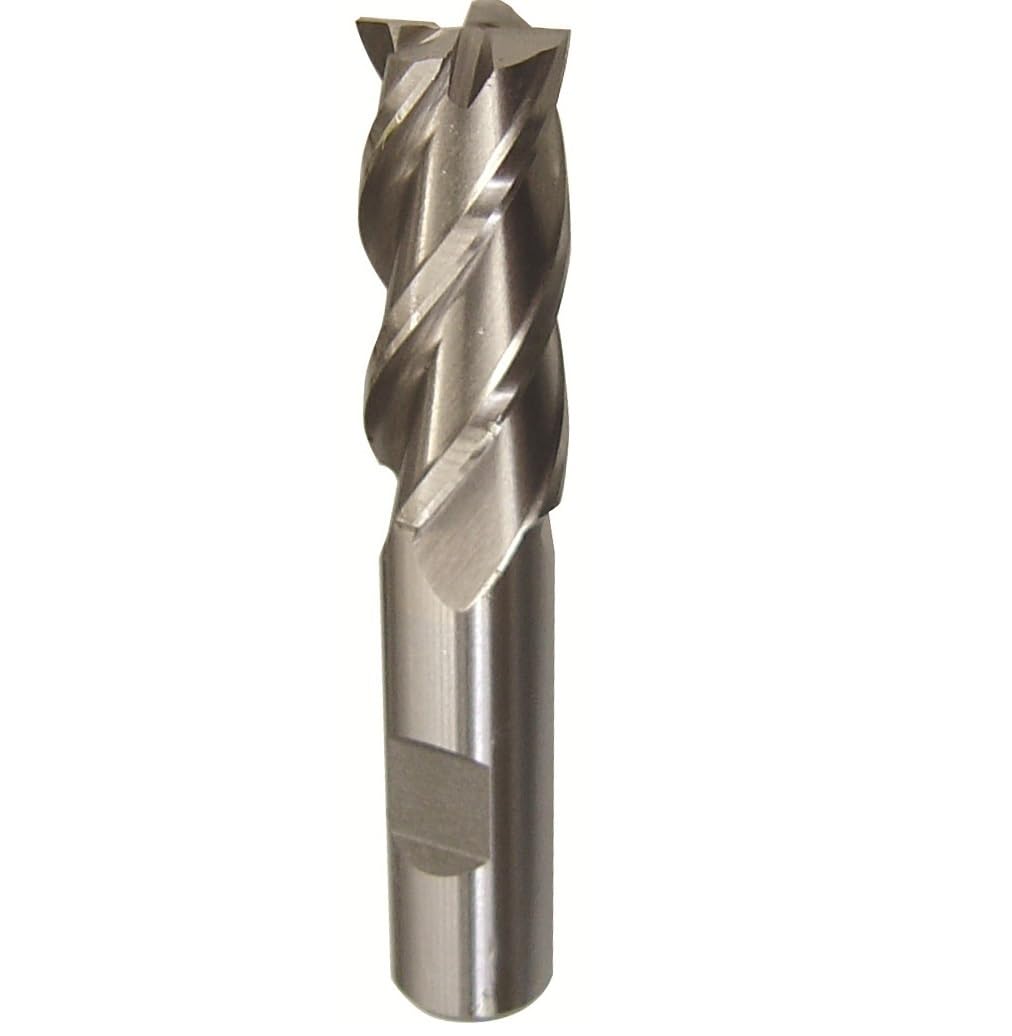

Drill America DWCF Series 4-Flute High-Speed Steel End Mill - Durable

Our review of the Drill America DWCF Series 4-flute high-speed steel end mill finds it best suited to machinists and hobbyists who need a rugged, general-purpose cutter for medium-hard materials. The single biggest reason to buy is its combination of a large core diameter and polished finish, which together improve rigidity and enable efficient stock removal when milling steel, brass, bronze or iron. For straightforward profiling, open-ended slots and keyways this tool delivers predictable performance at a budget-friendly price point.

Key Features

• High-speed steel construction: provides a balance of hardness and toughness for wear resistance in general-purpose milling work.
• Polished finish: helps reduce friction and can aid chip evacuation for smoother cuts on many materials.
• Weldon shank: offers secure clamping and easy indexing with flats machined into the round shank for alignment.
• Spiral flute geometry: evacuates chips up and out when run right-hand cut to reduce clogging during continuous cuts.
• Large core diameter: increases rigidity and reduces deflection, which supports faster material removal in tougher operations.

Who It's For

This end mill is aimed at metalworkers, small machine shops and serious hobbyists who need a robust, economical cutter for milling medium hardness materials like steel, brass, bronze and iron. It works well for profiling, open-ended slots and keyways, and for those who prioritize rigidity and stock removal over specialized geometries.

Those who require extreme cutting accuracy for precision finishing, very high feed speeds, or frequent work on very hard alloys may want to consider carbide cutters or specialty end mills instead, as users report mixed results on long-term sharpness and center-cut capability in demanding precision cuts.

Pros & Cons

Pros

• Good balance of hardness and toughness for everyday milling on medium-hard materials.
• Polished finish and spiral flutes help with chip evacuation and smoother cutting action.
• Weldon shank simplifies secure holding and indexing in tooling setups.

Cons

• Some users report the cutting edge dulls faster than expected, so tool life can be limited under heavy use.
• Not center cutting, which may limit certain plunge or pocketing operations that require a true center-cut geometry.

Specifications

Series	DWCF
Material	High-speed steel
Flutes	4 flute
Cutting length	2 in
Cutting diameter	1 5/16 in
Overall length	4-1/2 in
Shank	3/4 in Weldon shank

Our Verdict

The Drill America DWCF 4-flute HSS end mill is a solid value for general-purpose milling of medium-hard materials, offering useful rigidity and reliable chip evacuation. Buy it if you need an economical cutter for profiling, slots and keyways; consider carbide or a dedicated center-cut design for higher precision or longer-life performance under heavy production loads.

Frequently Asked Questions

Is this end mill suitable for steel?
Yes, it is designed to machine most materials of medium hardness including steel, provided speeds and feeds are appropriate.

Can it be used for slotting and profiling?
Yes, the geometry and four flutes support profiling and open-ended slotting, with good stock removal when set up correctly.

Does the Weldon shank help with holding?
Yes, the Weldon shank has flats for secure clamping and easy indexing in fixtures and holders.
