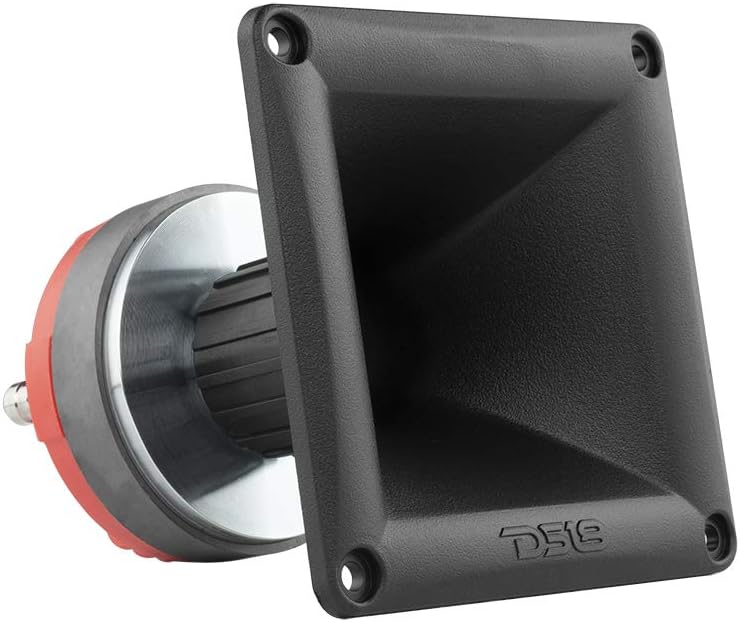

DS18 PRO-DR1PK44 1in Compression Driver with PRO-H44 Horn - High

In this review the DS18 PRO-DR1PK44 is evaluated as a focused high-frequency solution for car audio enthusiasts and small PA setups. The bottom line: it delivers remarkable loudness and clear high-end detail thanks to a phenolic diaphragm and very high sensitivity, making it a strong choice when maximum output per watt is the priority. It is best suited to users who need a compact, efficient tweeter to cut through mixes, though buyers should be aware of reported durability and functionality concerns so proper system matching and protection are advisable.

Key Features

• Power handling: 60W AES / 240W peak gives plenty of headroom for moments that need transient punch without immediate overload.
• Phenolic diaphragm: produces crisp, detailed highs across the stated 800Hz to 20kHz range so vocals and cymbals remain articulate.
• High sensitivity: 107.3 dB sensitivity yields high output from modest amplifier power, maximizing perceived loudness per watt.
• Compact square horn: the included PRO-H44/BK 45 x 45 square horn provides wide dispersion and easy mounting in tight installations.
• Robust construction: aluminum + ABS body, Kapton former and ferrite magnet are chosen for durability and consistent performance in mobile or installed use.
• Impedance compatibility: 8 ohm nominal impedance makes it straightforward to integrate into many car and home amplifier systems.

Who It's For

The PRO-DR1PK44 is ideal for car audio builders, club or bar PA installers, and DIY integrators who need a compact, very efficient high-frequency driver that produces strong SPL without a lot of amplifier power. Its high sensitivity and square horn suit situations where projection and vocal clarity are priorities.

It is less appropriate for listeners who need extended ultra-low distortion tweeters or who cannot add basic protection such as a crossover or limiter, since some users report units failing under heavy use. Those seeking longevity above all else or a softer, less forward high end may prefer alternate designs.

Pros & Cons

Pros

• Exceptional output for wattage due to 107.3 dB sensitivity, making it efficient with small amplifiers.
• Clear, pronounced high frequencies from the phenolic diaphragm that let vocals and lead instruments cut through.
• Compact square horn and screw-on throat make installation in tight spaces practical and reliable.
• Solid materials like aluminum + ABS body and Kapton former aimed at durable performance.

Cons

• Some customers report durability and functionality issues with units failing under heavy use, so protective crossovers and conservative gain settings are recommended.
• The aggressive high-end may not suit listeners preferring a very smooth or softened treble character.

Specifications

Model	PRO-DR1PK44
Voice coil	1in CCA voice coil
Power handling	60W AES / 240W peak
Impedance	8 ohm
Sensitivity	107.3 dB
Frequency response	800 Hz - 20 kHz
Horn	PRO-H44/BK 45 x 45 square horn, 4.88in depth

Our Verdict

The DS18 PRO-DR1PK44 is a high-value option for builders who need loud, clear high-frequency performance from a compact compression driver. When paired with appropriate crossovers and gain control it delivers clear vocals and aggressive top end while maximizing amplifier efficiency, making it a practical choice for car audio and small PA installs where output per watt matters.

Frequently Asked Questions

What input impedance does this driver present to an amplifier?
The unit is rated at 8 ohm nominal, so it behaves like a standard 8 ohm driver for amplifier matching.

Does the package include a horn?
Yes, the PRO-H44/BK 45 x 45 square horn with a screw-on throat is included for wide dispersion and simpler mounting.

Is this safe to use without a crossover?
For best longevity and to avoid damage, use a proper high-pass crossover or limiter to protect the compression driver from low-frequency content and excessive power peaks.
