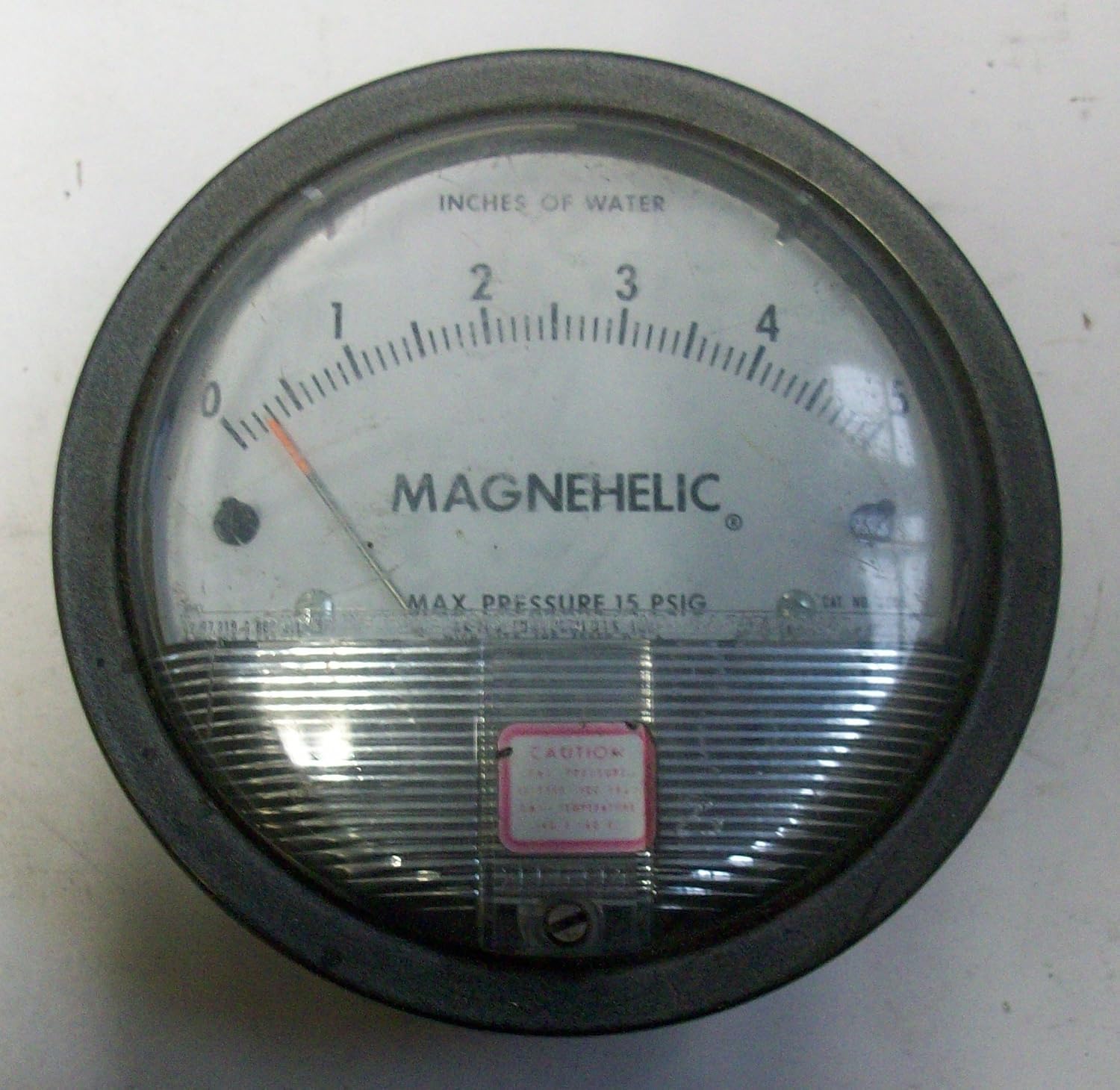

Dwyer 2005 Magnehelic Differential Pressure Gauge 0 to 5 in WC - 4 in

In this review of the Dwyer 2005 Magnehelic differential pressure gauge, the bottom line is simple: this is a dependable, straightforward instrument for HVAC techs and shop engineers who need an accurate, low-range pressure indicator. The gauge earns its place where routine monitoring matters because of its large, easy-to-read 4 in dial and a fluid-free sensing design that avoids evaporation or freeze issues. Our review focuses on build quality, common applications, and the few practical limitations installers should know before ordering.

Key Features

• Industry standard accuracy: The 0 to 5 in WC range is ideal for common HVAC tasks and filter resistance checks where small pressure differences matter.
• Large 4 in dial: The oversized, easy-to-read dial reduces reading errors when mounted on a panel or duct, improving routine checks.
• No manometer fluid: The absence of liquid eliminates evaporation, freezing, toxic hazards, or leveling problems in field installations.
• Damped motion: The movement is damped with high-viscosity silicone fluid to steady the pointer and produce stable readings under vibration.
• Rugged construction: O-ring sealing, jeweled bearings, and a precision helix provide shock, vibration, and overpressure resistance for demanding environments.
• Accessible zero adjustment: The zero set screw in the plastic cover allows field recalibration without disassembly.

Who It's For

The Dwyer 2005 is aimed at HVAC professionals, maintenance technicians, and test labs that monitor fan and blower pressures, furnace draft, and filter differential pressure. Its 4 in dial and fluid-free design make it especially useful for frequent visual checks on equipment racks or ductwork where clear, repeatable readings matter.

It is less suited for users who need specialized fittings included out of the box; several customers reported missing barbed fittings on arrival, so buyers who lack tubing or adapters should plan to source those separately. Also, those needing ranges outside the low differential band should choose a different model.

Pros & Cons

Pros

• Clear, large 4 in dial for fast, accurate visual reads in the field.
• Fluid-free sensing avoids evaporation or freezing and simplifies installation in varied climates.
• Robust internal components such as jeweled bearings and a precision helix improve long-term reliability.
• Simple zero adjustment without removing the cover speeds maintenance.

Cons

• Some customers received units without barbed fittings, so tubing adapters may need to be purchased separately.
• The product is purpose-built for low differentials (0 to 5 in WC) and is not appropriate for higher pressure measurement tasks.

Specifications

Brand	Dwyer
Model	2005 Magnehelic
Range	0 to 5 in WC
Dial Size	4 in (102 mm)
Sensing	Magnetic helix with samarium cobalt magnet, no manometer fluid
Seal	O-ring pressure tightness
Motion damping	High-viscosity silicone fluid

Our Verdict

The Dwyer 2005 Magnehelic is a practical, value-minded choice for HVAC and maintenance pros who need a reliable low-range differential gauge. Its large dial, fluid-free sensing, and rugged internals make it a long-lasting tool for filter monitoring and blower or furnace draft checks, provided buyers account for accessory fittings that may not be included.

Frequently Asked Questions

Does this gauge require manometer fluid?
No. The Magnehelic design uses a magnetic helix and requires no manometer fluid, avoiding evaporation and freeze issues.

Is the zero adjustable in the field?
Yes; the zero adjustment screw is located in the plastic cover and can be accessed without removing the cover.

Are barbed fittings included?
Some customers report receiving the gauge without barbed fittings, so plan to purchase tubing adapters if you do not already have them.
