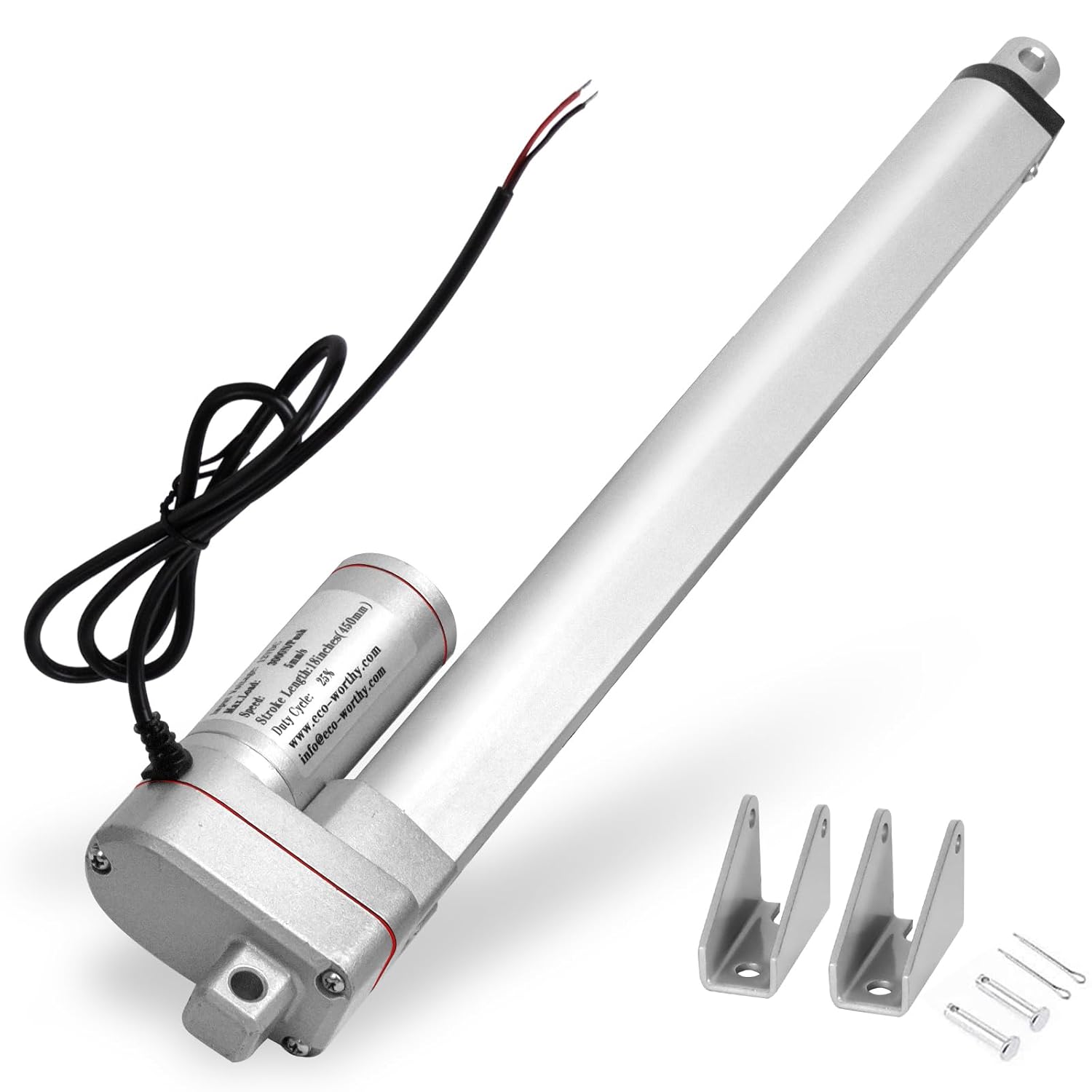

ECO-WORTHY Linear Actuator 3000N 18in Stroke - Heavy Duty

In this review the ECO-WORTHY Linear Actuator 3000N with an 18in stroke is examined for workshop and industrial use. It is aimed at buyers who need a robust, weatherproof actuator for projects that demand consistent push and pull force up to 675lbs and quiet operation. The single biggest reason to consider it is the combination of a heavy-duty 3000N rating with an IP65 aluminum housing, which makes it suitable for outdoor machinery, gates, or lifting equipment where durability and low noise matter.

Key Features

• Stroke length: The 18in stroke provides long travel for gates, hatches, or adjustable platforms without extra linkages.
• Load capacity: The 675lbs (3000N) maximum load supports demanding lift and push applications in industrial settings.
• Weather resistance: IP65-rated aluminum alloy housing protects the actuator from dust and water for reliable outdoor use.
• Built-in limit switch: The internal limit switch automatically cuts power at travel ends to prevent motor idling and overrun.
• Low current draw: A maximum current draw of about 3A keeps electrical demands modest for 12V systems.
• Quiet operation: Customers report quieter running than many alternatives, which helps in noise-sensitive installations.

Who It's For

This actuator is best for hobbyists, contractors, and small industrial users who need a long-stroke, heavy-duty linear actuator for outdoor or semi-exposed installations. Typical projects include solar tracker adjustment, gate automation, machinery motion, and lifting or tilting mechanisms where a 675lbs capacity and IP65 protection are required.

Those who need very fast actuation, precise micro-positioning at high speed, or loads above the 3000N limit should look elsewhere. Also consider a model with integrated controllers if you require complex motion profiles or feedback position sensing.

Pros & Cons

Pros

• Sturdy aluminum housing with IP65 protection makes it suitable for outdoor use and corrosive environments.
• High push/pull capacity with stable running characteristics gives confidence in heavy-duty applications.
• Quiet operation compared with many budget actuators reduces noise in workshops or residential sites.
• Low maximum current draw simplifies integration with 12V systems and reduces power requirements.

Cons

• Travel speed is modest at about 5mm/s, so it is not suited for applications that need rapid movement.
• There is no built-in position feedback beyond the internal limit switch, which limits precision control.

Specifications

Stroke length	18in (450mm)
Retracted length	480mm
Extended length	930mm
Maximum load	675lbs (3000N)
Travel speed (max)	5mm/s
Maximum current draw	3 Amps
Housing	Aluminum alloy, IP65-rated

Our Verdict

The ECO-WORTHY 3000N linear actuator is a pragmatic choice for users who need a long-stroke, heavy-duty actuator with solid weatherproofing and quiet operation. Its durable aluminum housing, internal limit switch, and modest power draw make it good value for outdoor machinery and lifting tasks, though users needing high speed or position feedback should choose a different model.

Frequently Asked Questions

Is this actuator suitable for outdoor use?
Yes. The aluminum alloy housing is IP65-rated, protecting against dust and water spray for outdoor installations.

How much force can it deliver?
The actuator is rated to a maximum load of 675lbs (3000N) in push or pull.

Does it include position feedback?
No. It uses an internal limit switch to stop at travel ends but does not provide continuous position feedback.
