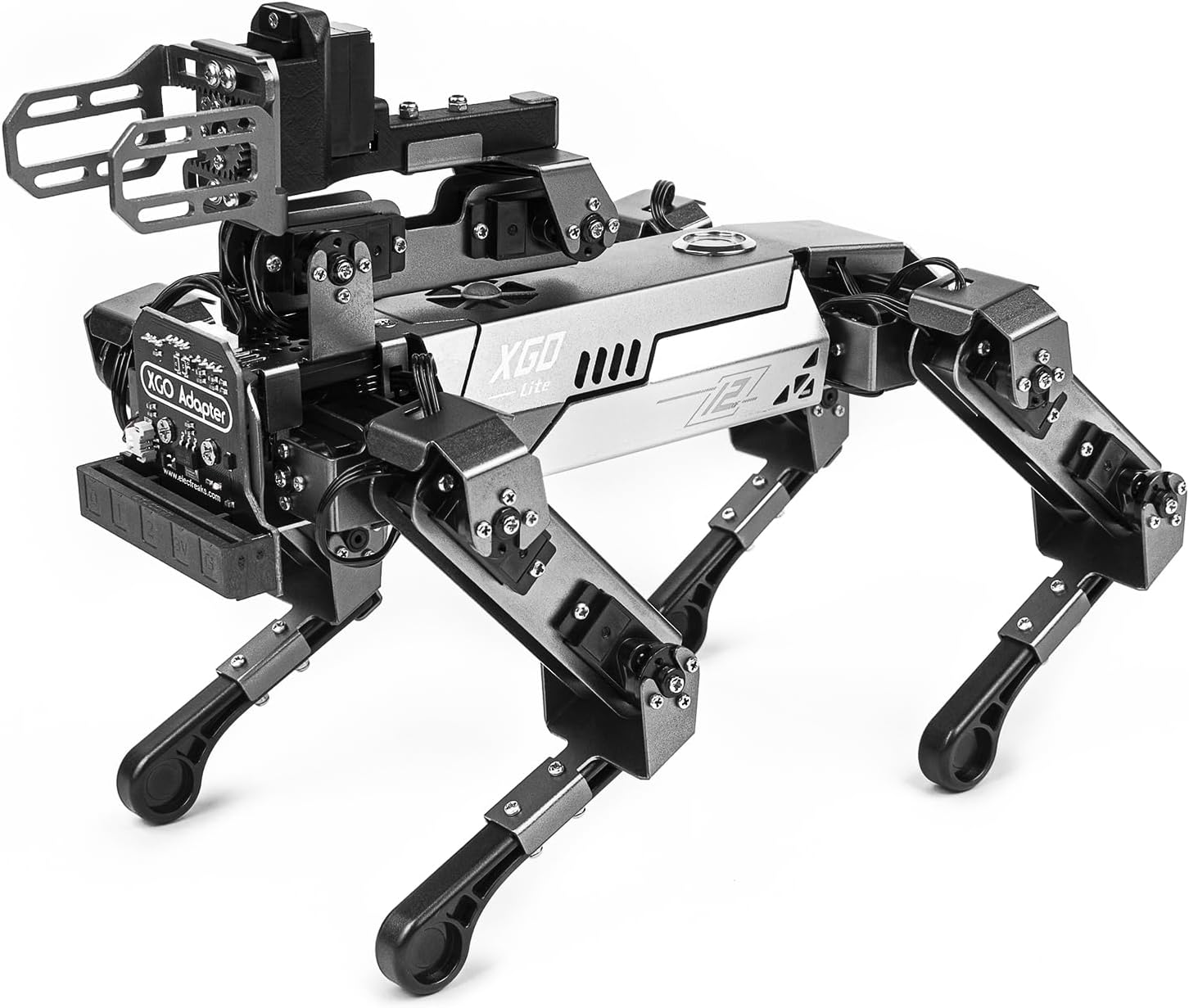

microbit Robotic Dog Xgo V2 Kit - 15DOF Full Metal Bionic Robot

In this review of the micro:bit Robotic Dog XGO V2 Kit the bottom line is simple: this is a hands-on STEM kit aimed at makers, educators, and hobbyists who want a compact, programmable quadruped with an integrated robotic arm. The reviewer found the V2's biggest strength is its mechanical versatility - 15 movable joints and a 3-axis arm let users experiment with walking gaits, object gripping, and attitude control while learning micro:bit programming. Note that the kit ships without a micro:bit, so buyers should be prepared to provide the controller separately.

Key Features

• 15 movable joints: Fifteen high-quality digital servos give the robot dog multi-axis movement and more realistic, varied gaits than many entry-level kits.
• Robotic arm with gripper: A 3-axis arm and end grippers allow the dog to pick up, push, and manipulate small objects for practical tasks and experiments.
• New expansion board: The redesigned adapter board fits golden-finger micro:bit style motherboards cleanly and keeps the head profile compact while adding GPIO and I2C access.
• Built-in actions: Over 19 preset actions such as sit, shake hands, and look for food make it easy to demonstrate behavior without custom code.
• Durable full-metal frame: A mostly metal chassis and serial bus servos provide a sturdy platform for classroom use and repeated builds.

Who It's For

The XGO V2 is best for intermediate students, hobbyist makers, and classroom instructors who want a programmable quadruped that demonstrates robotics concepts like degrees of freedom, IMU-based attitude control, and servo position feedback. It is also useful for micro:bit users who want to expand projects into mobile robotics and manipulation.

It is not ideal for complete beginners who expect a plug-and-play robot out of the box without sourcing a micro:bit controller, nor for users who need a turn-key AI pet with built-in high-level voice features; this kit assumes some comfort with assembly, app control, or MakeCode programming.

Pros & Cons

Pros

• High articulation with 15 DOFs and a 3-axis arm enables advanced motion experiments.
• Compact expansion board design keeps the head slim while offering GPIO and I2C for extensions.
• Multiple built-in actions let instructors demonstrate movement patterns quickly.
• Metal construction and serial bus servos make the kit robust for repeated classroom use.

Cons

• Controller not included; the micro:bit must be purchased separately before programming.
• Assembly and programming require a moderate learning curve for newcomers to robotics.

Specifications

Product type	Desktop bionic quadruped robot kit
Degrees of freedom	15 movable joints (15 DOF)
Arm	3-axis robotic arm with end grippers
Expansion	XGO Adapter with GPIO and I2C interfaces
Servos	2.3 kgcm bus serial port servos
Frame	Full metal chassis

Our Verdict

The XGO V2 is a well-engineered STEM kit that packs 15 DOFs and a functional robotic arm into a compact, durable frame, making it a great choice for schools and hobbyists who want hands-on robotics learning. Buyers should note the micro:bit is not included, but for those willing to assemble and program it, the kit delivers excellent value through expandability and real motion capability.

Frequently Asked Questions

Does the kit include a micro:bit?
No, the micro:bit controller is not included; you will need to supply your own micro:bit to program the robot.

Are there tutorials to help assembly and programming?
Yes, detailed wiki tutorials are available at the manufacturer wiki to guide assembly and micro:bit MakeCode or app control.

Can the expansion board be used for sensors and extras?
Yes, the XGO Adapter provides GPIO and I2C interfaces to connect sensors and other modules for extended projects.
