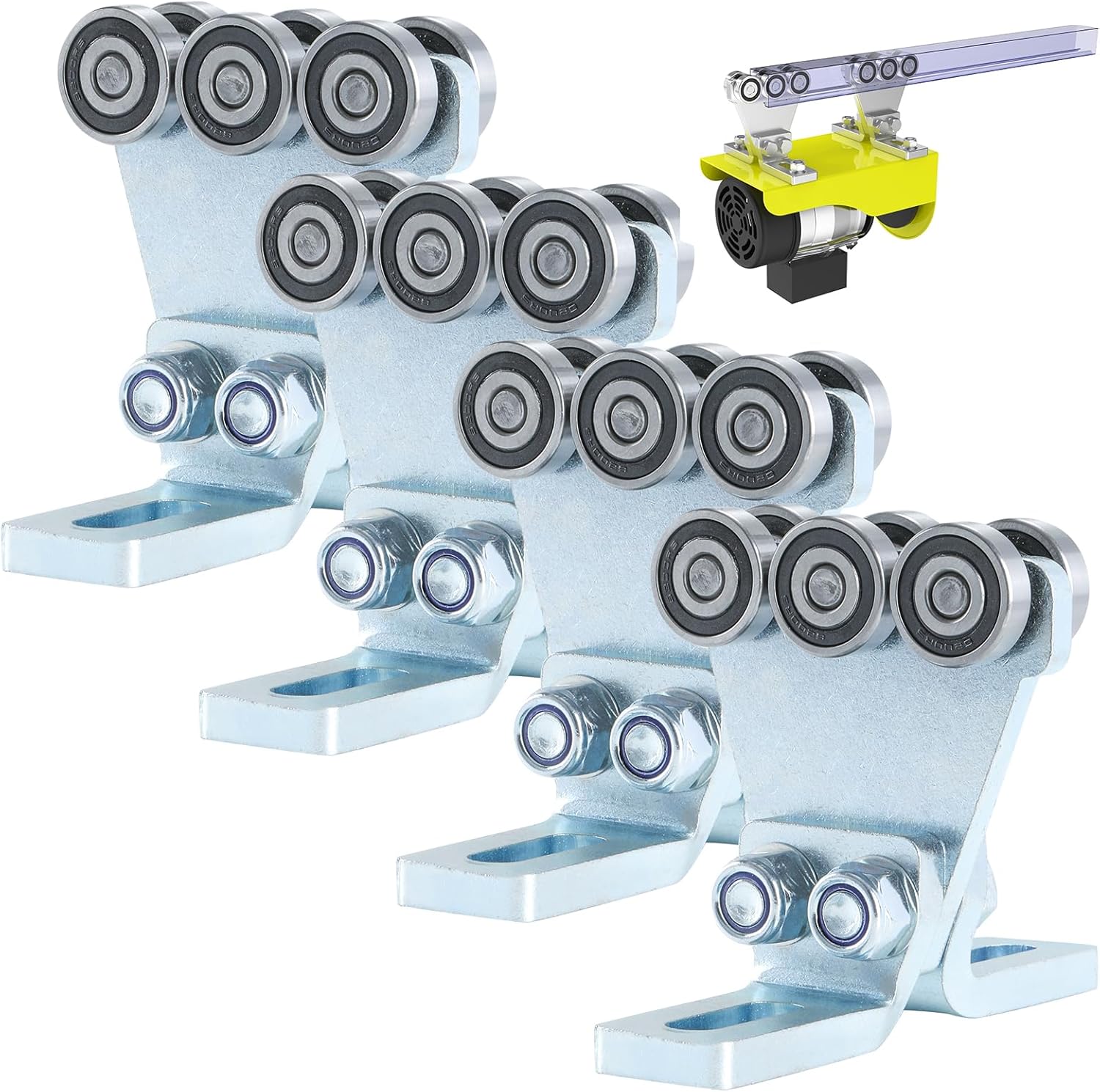

Electric Hoist 6 Wheel Trolley Assembly - Heavy-Duty Strut Trolley

Our review of the Electric Hoist 6 Wheel Trolley Assembly finds it best suited for workshops, garages, and light industrial spaces that need a durable, welding-free trolley solution. The single biggest reason to consider this trolley is its combination of high rated load capacity at realistic operating speeds and a robust galvanized steel construction that resists corrosion and impact. It is presented as a practical, serviceable roller assembly for 1-5/8' strut channel systems where safety and modular maintenance access matter.

Key Features

• Load Capacity: Provides progressively higher rated loads at lower speeds, enabling safe handling of heavy suspended items during slow hoist movement.
• Ultimate Break Strength: Built with an ultimate break strength of 7870 lbs for an added margin of safety in demanding pick-and-place tasks.
• Premium Bearings: Uses rubber-sealed low-speed bearings that allow grease maintenance and improved sealing for longer service life in dusty garage settings.
• Welding-Free Construction: Modular, bolt-together design eliminates welded joints and reduces the risk of fracture or voids while easing replacement of parts.
• Galvanized Solid Steel: The trolley plate material gives strong corrosion and wear resistance, suitable for occasional outdoor or high-humidity storage areas.
• Omnidirectional Movement: Four-wheel contact across the strut channel allows smooth movement in confined aisles and small warehouses.

Who It's For

This trolley assembly is ideal for hobbyists, small repair shops, and property owners who run electric hoists or sliding mechanisms from 1-5/8' wide strut channel or taller channel. Installers who value a maintainable bearing system and a modular, nonwelded assembly will appreciate the design.

It is less suited for applications requiring custom strut sizes under 1-5/8' or for projects where the back holes of the strut channel are significantly oversized, which can allow screw heads to pass through and prevent proper securement. Those needing a fully sealed, maintenance-free bearing for high-speed continuous duty should evaluate alternatives.

Pros & Cons

Pros

• High rated loads at low RPMs make it safe for slow hoist operations and heavy suspensions.
• Galvanized solid steel and rubber-sealed bearings improve longevity in workshop environments.
• Welding-free, modular assembly with Grade 8 anti-loosening hardware simplifies maintenance and increases safety.
• Designed to work with 1-5/8' wide strut channel and taller, enabling wide compatibility for common installations.

Cons

• Not compatible if the strut channel back holes are much larger than standard, which can prevent proper screw seating.
• The bearings are optimized for low-speed duty; extremely high-speed continuous use is not the intended application.

Specifications

Compatible Channel	1-5/8' wide and all 1-5/8' or taller strut channel
Rated Load (300 RPM)	780 lbs
Rated Load (100 RPM)	1180 lbs
Rated Load (50 RPM)	1470 lbs
Rated Load (25 RPM)	1820 lbs
Ultimate Break Strength	7870 lbs
Material	Galvanized solid steel with rubber-sealed low-speed bearings

Our Verdict

The Electric Hoist 6 Wheel Trolley Assembly is a solid value for garage and light industrial users who need a maintainable, heavy-capacity trolley for 1-5/8' strut systems. Its galvanized steel construction, modular welding-free design, and serviceable bearings make it a reliable choice where safety margins and ease of maintenance matter most.

Frequently Asked Questions

Will this fit my strut channel?
If your strut channel is 1-5/8' wide or taller it should fit, but check that the back holes are not oversized because large holes can let screws pass through and prevent proper securement.

Are the bearings serviceable?
Yes, the trolley uses rubber-sealed low-speed bearings designed for grease maintenance to extend service life.

Is welding required for installation?
No, the assembly is welding-free and uses Grade 8 anti-loosening nuts and bolts for secure modular attachment.
