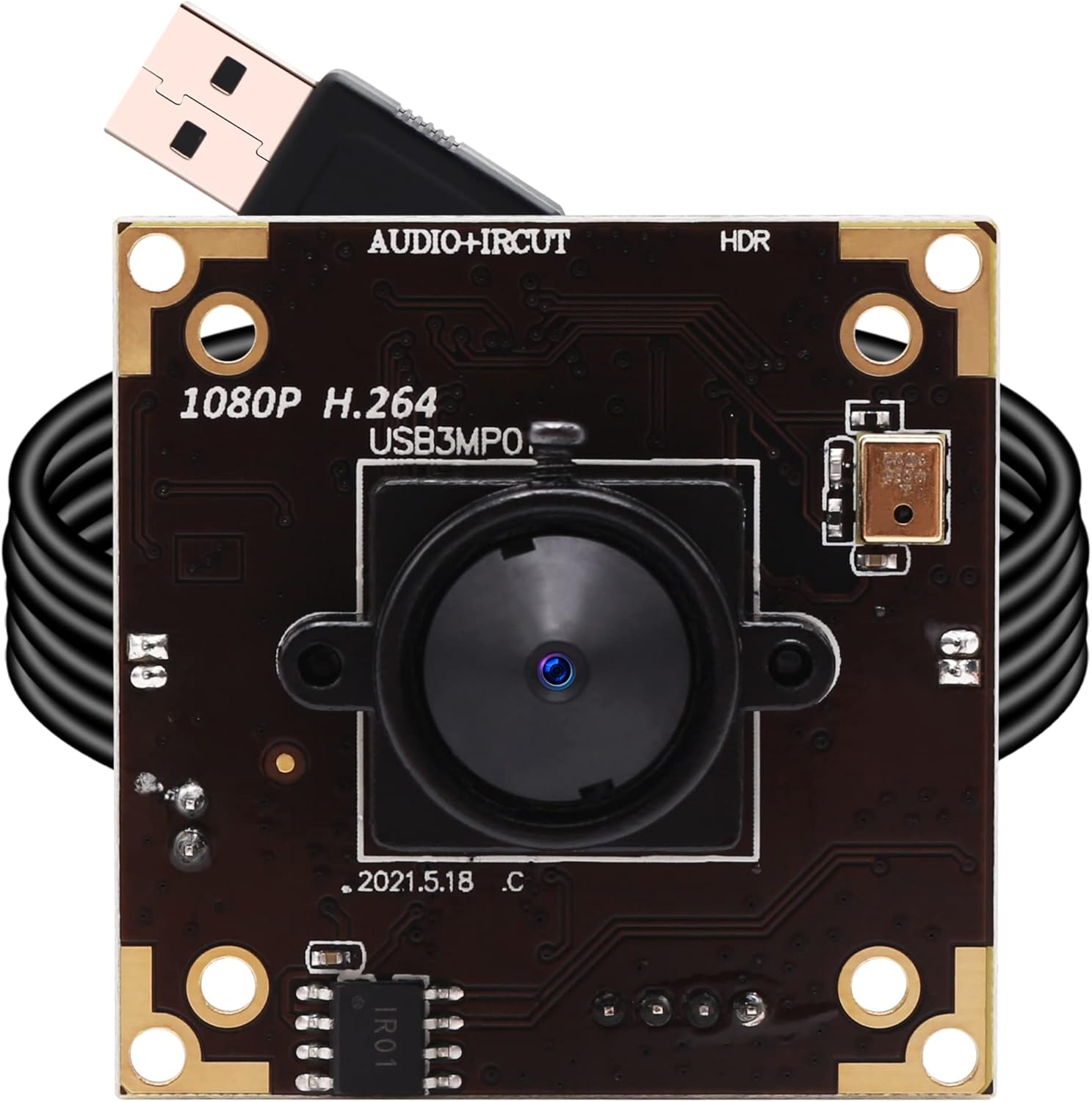

ELP USB Camera WDR H.264 3MP 1536p Camera Module - Hidden Pinhole

Our review of the ELP USB Camera WDR H.264 3megapixel module finds it best suited for projects that need a compact, high dynamic range camera board with audio. The bottom line: this tiny 3MP board delivers clear daytime and challenging lighting captures thanks to the MICRON AR0331 sensor and up to 100 dB wide dynamic range, while offering H.264 and MJPEG compression to reduce storage and bandwidth demands. It is a practical choice for embedded surveillance, dash cam prototypes, and machine vision experiments where a discreet 3.7mm pinhole lens and plug and play USB connectivity matter.

Key Features

• 3MP MICRON AR0331 sensor: captures up to 2048x1536 resolution for detailed stills and cropping room in postprocessing.
• 100 dB wide dynamic range: preserves scene detail in strong sunlight and deep shadows, useful for license plate or high contrast scenes.
• 3.7mm pinhole lens: small and concealable for hidden installation or tight enclosures while maintaining a wide enough field of view.
• H.264 and MJPEG compression: reduces storage and network load so high frame rates stream smoothly from modest systems.
• UVC plug and play: works with Windows, Mac, Linux, Android and Raspberry Pi without extra drivers for fast setup.
• Built-in microphone: provides basic audio capture alongside video for simple monitoring or prototype recording.

Who It's For

This module fits developers, hobbyists and integrators building compact surveillance, dash cam or machine vision projects who need a high dynamic range sensor in a tiny package. The board is especially useful when space is limited or concealment is required and when the ability to stream using H.264 or MJPEG helps conserve bandwidth on embedded platforms.

People who want a polished consumer webcam with housing, autofocus, or advanced software features should look elsewhere; this is a bare camera board intended for installation into devices or enclosures and assumes the user can handle basic mounting and cabling.

Pros & Cons

Pros

• Excellent dynamic range up to 100 dB for handling high contrast scenes without blown highlights.
• High resolution 3.0 megapixel sensor with max 2048x1536 for detailed captures and cropping.
• H.264/MJPEG/YUY2 options let users balance quality and bandwidth on modest systems.
• UVC compliant plug and play support across major OS makes integration straightforward.

Cons

• Delivered as a bare board with a 1 m USB cable and pinhole lens, so installation requires enclosure or mounting work.
• Single microphone provides basic audio only, not a replacement for dedicated audio systems.

Specifications

Model	ELP-USB3MP01H-L37
Sensor	1/3 in MICRON AR0331 CMOS
Maximum resolution	2048 x 1536 (3.0 MP)
Lens	3.7mm pinhole
Dynamic range	Up to 100 dB WDR
Video formats	H.264, MJPEG, YUY2
Connectivity	UVC USB2.0, 1 m USB cable

Our Verdict

The ELP USB Camera WDR 3MP module is a strong value for anyone building compact surveillance or machine vision projects that need a discreet, high dynamic range sensor and flexible compression. It is not a finished consumer webcam but delivers reliable image quality, H.264 streaming and broad OS support, so integrators who need a concealed camera board will find it especially useful.

Frequently Asked Questions

Does this module need drivers?
It is UVC compliant and typically works plug and play on Windows, Mac, Linux, Android and Raspberry Pi without extra drivers.

Can it record audio?
Yes, the board includes a single built-in microphone for basic audio capture alongside video.

What compression and frame rates are supported?
Supports H.264 and MJPEG at 30 fps for 1920x1080, and YUY2 at 30 fps at 640x480; higher resolutions use the listed formats.
