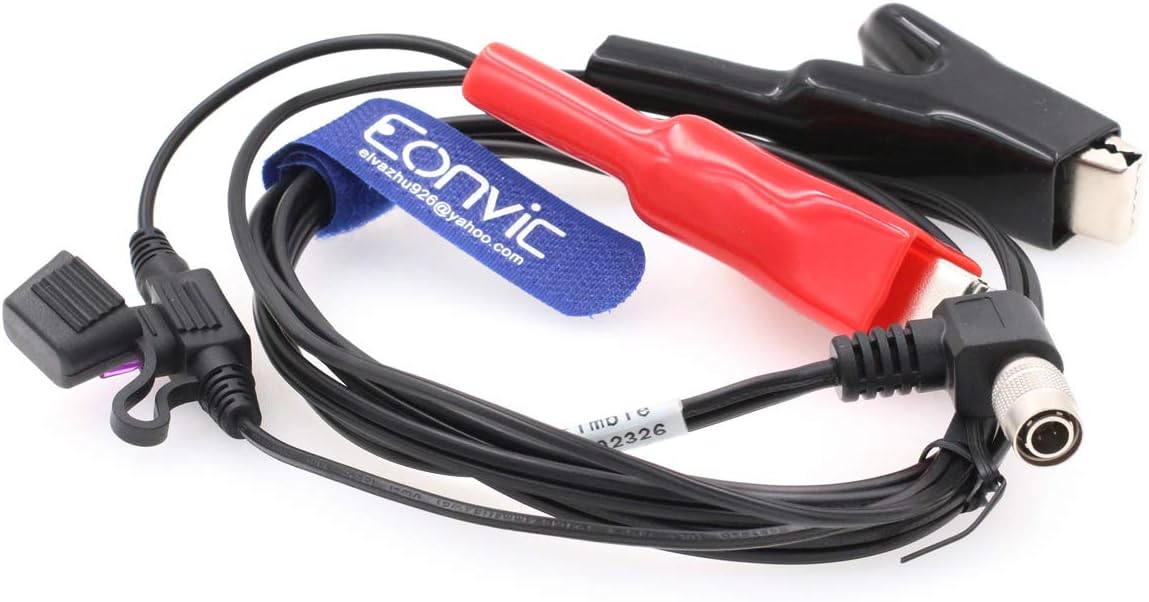

Eonvic Right Angle Hirose 4 Pin 12v Power Cable for Trimble 5600

In this review the Eonvic Right Angle Hirose 4 Pin 12v power cable is judged as a practical replacement for surveyors and technicians who need a reliable 12V connection for Trimble and similar instruments. The bottom line: it is a purpose-built cable primarily for Trimble 5600 and 3600 series instruments and compatible units like Geodimeter and Spectra Precision Focus 10, and its biggest selling point is dependable construction and pre-shipment testing that reduces field failures.

Key Features

• Right angle Hirose connector: the angled plug reduces stress at the instrument jack and keeps the cable out of the way during setups and movement.
• 12V power compatibility: designed specifically to connect Trimble 5600 Series and 3600 Series total stations to a 12V battery for field use.
• Works with multiple instruments: confirmed compatible with Trimble 5600, Geodimeter, and Spectra Precision Focus 10, making it useful for mixed fleets.
• 1.8 m cable length: offers a balance of reach and manageability so users can place the battery a short distance from the instrument without excess slack.
• Durable, tested assemblies: each cable is inspected and tested for pin continuity and high voltage to reduce the chance of early failure in the field.
• High reliability connector design: the Hirose connector family used here is rated for many insertions and resists vibration and corrosion in survey environments.

Who It's For

This cable is aimed at surveyors, field technicians, and instrument rental operations that use Trimble 5600 or 3600 Series total stations, Geodimeter units, or Spectra Precision Focus 10 instruments and need a rugged, tested 12V power lead. It is especially useful when a right angle connector is preferred to avoid strain at the instrument power socket.

Those who should look elsewhere include users who need a different connector type, longer bespoke cable lengths, or multi-voltage adaptors; this is a single-purpose 12V Hirose lead and not a universal power supply or charger.

Pros & Cons

Pros

• Fits Trimble 5600/3600 and similar instruments, providing a straightforward 12V battery connection.
• Right angle Hirose connector reduces strain and improves cable routing on tripods and mounting setups.
• Each assembly is continuity and high-voltage tested, which improves reliability in the field.
• Durable connector design offers good resistance to vibration and corrosion typical of surveying work.

Cons

• Single fixed length of 1.8 m may be short for some setups; custom lengths are not included here.
• Purpose-built for specific instruments, so it is not a universal charger or multi-voltage cable.

Specifications

Connector type	Right angle Hirose 4 pin
Voltage	12V
Compatible instruments	Trimble 5600, Trimble 3600 Series, Geodimeter, Spectra Precision Focus 10
Cable length	1.8 m
Build quality	Durable assemblies with continuity and high-voltage testing
Connector features	EMC shielding, vibration and corrosion resistance implied by Hirose design

Our Verdict

The Eonvic Right Angle Hirose 4 Pin 12V power cable is a solid, value-focused replacement lead for users of Trimble 5600/3600 series and similar instruments who need a dependable field-ready connection. Its right angle connector, tested assemblies, and durable construction make it a sensible purchase for survey teams and technicians who prioritize reliability over universal compatibility.

Frequently Asked Questions

Will this cable power a Trimble 5600 total station?
Yes. It is designed to connect Trimble 5600 Series total stations to a 12V battery.

How long is the cable?
The cable is 1.8 m long, intended to give modest reach without excessive slack.

Is the connector tested for reliability?
Yes. Each cable assembly is inspected and tested for pin continuity and high-voltage integrity before shipment.
