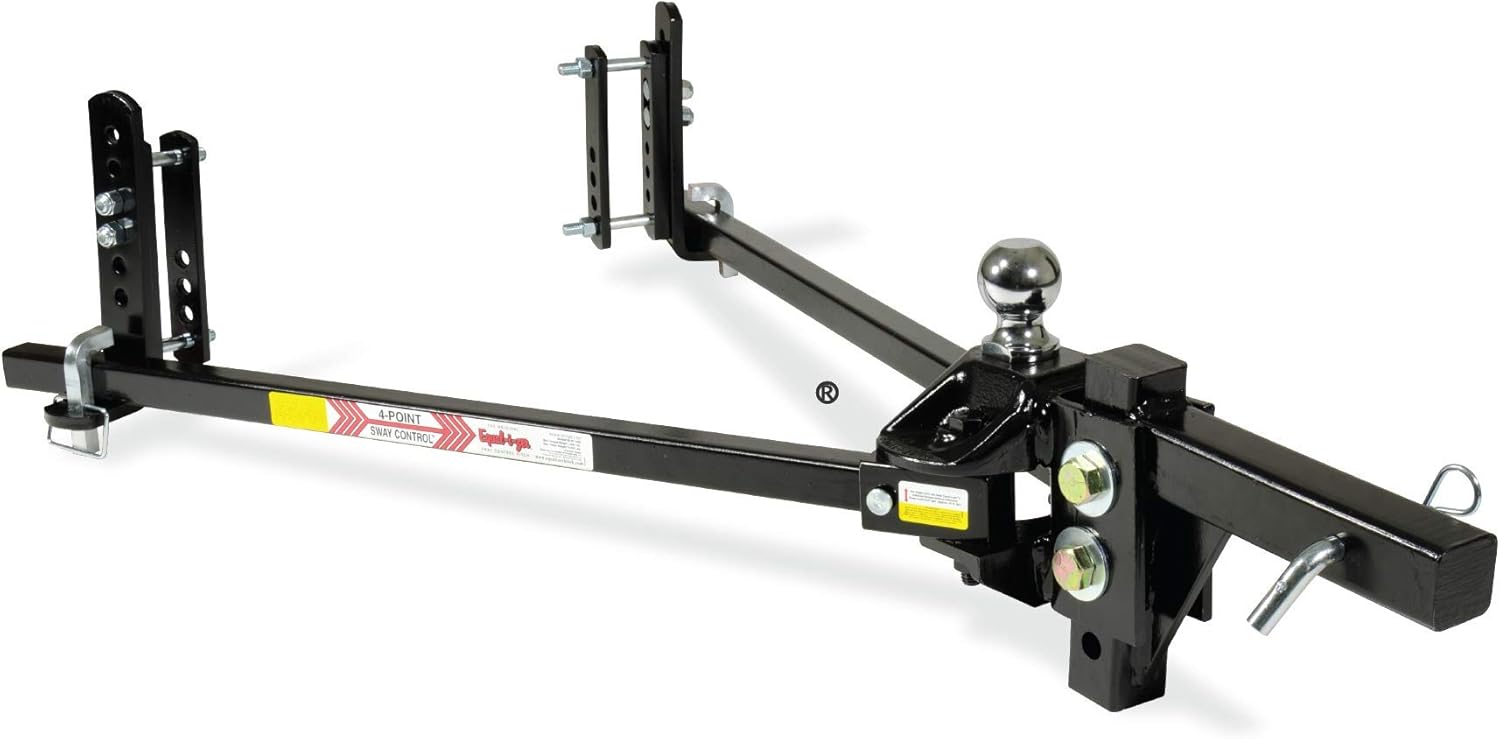

Equal-i-zer 4-Point Sway Control Hitch 12,000 lb - Stable Towing

In this review of the Equal-i-zer 4-point sway control hitch, the bottom line is clear: this is a heavy-duty solution for drivers who tow bumper-pull trailers and prioritize maximum sway resistance and improved handling. The hitch combines integrated sway control with weight distribution so that tongue weight is transferred across axles, improving steering and braking. For anyone towing RVs, horse trailers, boats, or cargo trailers up to 12,000 lb gross weight, this hitch is worth close consideration because its unique 4-point design provides a level of sway control few competitors match.

Key Features

• Integrated 4-point sway control: Delivers the highest resistance to trailer sway to keep the trailer tracking straight at highway speeds.
• Weight distribution design: Transfers tongue weight to all axles so the tow vehicle front end stays planted for better steering and braking.
• Broad trailer compatibility: Engineered to work with most bumper-pull trailers including RVs, horse, cargo, boat, and utility trailers, and compatible with surge brakes.
• High capacity: Rated for up to 12,000 lb gross towing weight with 1,200 lb tongue weight for larger trailers and heavier loads.
• Adjustable geometry: Sway control bracket positions between 27 in and 32 in back from coupler center to suit common trailer setups.
• Serviceable spring bars: Uses 36 in by 1-1/2 in spring bars to provide reliable leverage for weight distribution.

Who It's For

This hitch is best for owners who tow heavier bumper-pull trailers and need both strong sway control and weight distribution in a single assembly. It appeals to RV owners, equine transporters, and boat haulers who regularly tow close to the 12,000 lb limit and want improved steering and braking stability on long trips.

It is less appropriate for occasional light trailer use where a simpler, lighter hitch would suffice, or for those who cannot accommodate the required shank and bracket positioning. Also note the ball is not included, so buyers should plan to source a 2-5/16 in ball separately.

Pros & Cons

Pros

• Exceptional sway control from the integrated 4-point design that reduces trailer oscillation.
• Effective weight distribution that improves tow vehicle handling and braking under load.
• Built for high capacity towing up to 12,000 lb, making it suitable for a wide range of trailers.
• Works with surge-braked trailers and many common bumper-pull configurations.

Cons

• Heavy and substantial hardware that can be cumbersome to handle during setup and removal.
• Some users report creaking or noise during use, especially at certain speeds, which may require periodic inspection or lubrication.

Specifications

Gross towing weight	12,000 lb
Tongue weight rating	1,200 lb
Ball size	2-5/16 in (ball not included)
Sway bracket position	27 in - 32 in back from center of coupler
Spring-bar dimensions	36 in long x 1-1/2 in wide
Shank length	12 in
Max trailer frame height	6 in (max rise 7 in / max drop 3 in)

Our Verdict

The Equal-i-zer 4-point sway control hitch is a smart buy for serious tow vehicle owners who need robust sway resistance and effective weight distribution in one unit. It is durable, compatible with many bumper-pull trailers, and improves steering and braking under load, offering clear value for heavier towing applications despite added weight and occasional creak under certain conditions.

Frequently Asked Questions

Is the hitch compatible with surge brake trailers?
Yes. The Equal-i-zer is engineered to work with virtually all bumper-pull trailers, including those fitted with surge brakes.

Does the kit include the hitch ball?
No. The kit includes the weight distribution hitch and shank but the 2-5/16 in ball must be purchased separately.

What is the maximum trailer weight this hitch supports?
The hitch is rated for a maximum gross towing weight of 12,000 lb with a 1,200 lb tongue weight rating.
