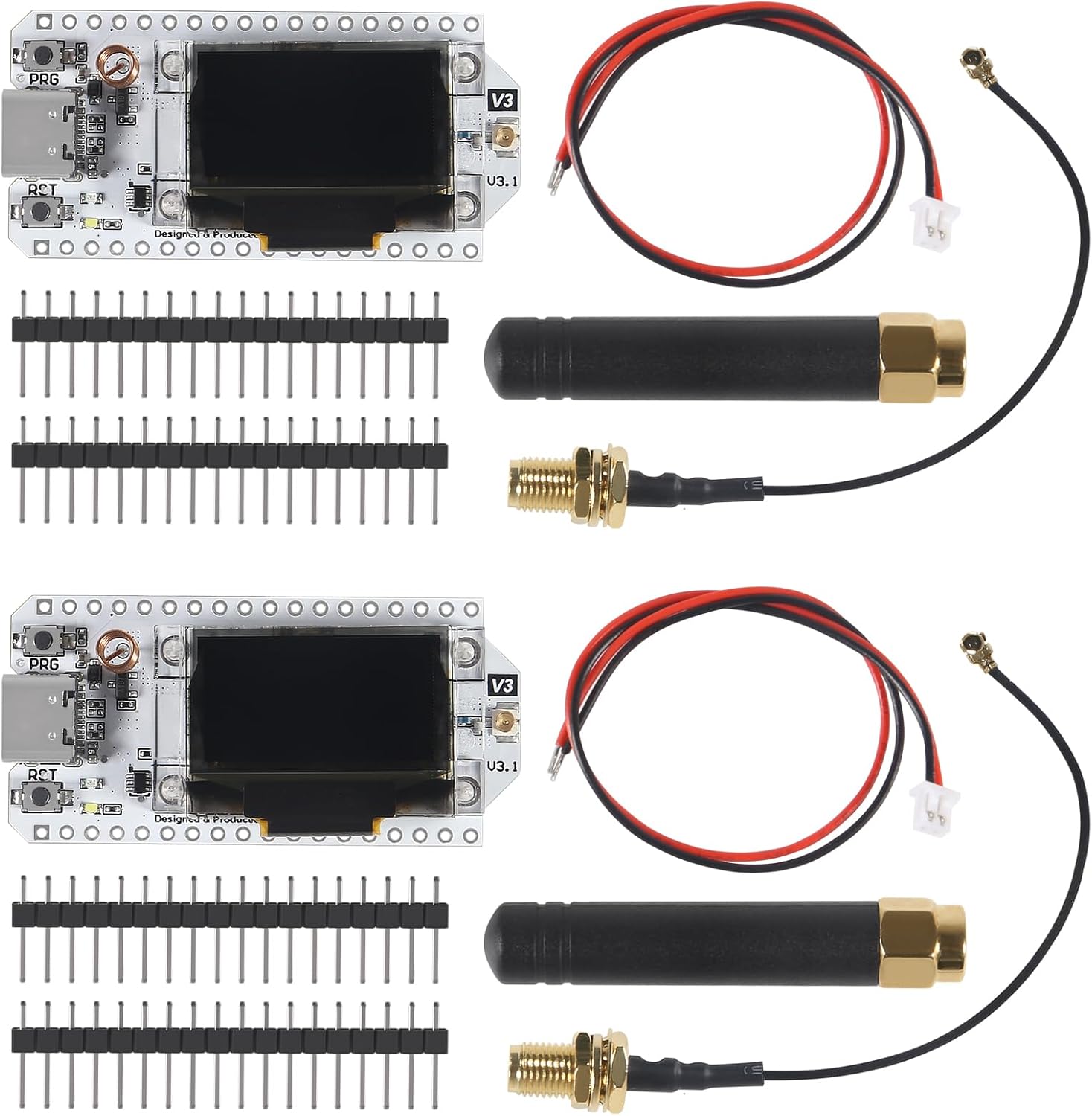

ESP32 LoRa 0.96in OLED Development Board 915MHz - Dual Pack

Our review of the AITRIP ESP32 LoRa development board pair finds these modules best suited to hardware makers and IoT tinkerers who need long-range wireless combined with local display and battery support. The single biggest reason to buy is the integrated combination of an ESP32-S3 MCU, SX1262 LoRa transceiver and a built-in 0.96in 128x64 OLED that lets developers prototype LoRa nodes without adding separate modules. For anyone building battery-powered sensors or experimental LoRa networks, the boards offer convenience and clear debugging data on the small screen.

Key Features

• ESP32-S3 MCU: Dual-core 32-bit processor up to 240 MHz provides ample CPU headroom for networking, encryption and sensor handling.
• SX1262 LoRa chip: High sensitivity and up to +20 dBm output enable reliable long-range transmission in open areas, suitable for rural or campus links.
• 0.96in OLED display: The onboard 128x64 dot matrix screen shows debug messages, battery level and status without a serial monitor.
• Battery management: Onboard lithium battery interface with charge/discharge protection and automatic USB/battery switching simplifies portable projects.
• Type-C and CP2102: USB Type-C port with CP2102 USB-serial and voltage regulation makes programming and power convenient on modern laptops.
• Antennas and connectivity: Built-in Wi-Fi, BLE and a reserved IPEX for LoRa plus an included LoRa antenna provide flexible RF options for mixed networks.

Who It's For

The pair is aimed at makers, students and engineers who prototype LoRaWAN or point-to-point LoRa links and want a compact, battery-ready node with a local display. It is also convenient for those who value an integrated USB Type-C port and CP2102 serial bridge to speed up development and flashing.

Those who should look elsewhere include users needing a certified LoRaWAN gateway, commercial-grade industrial nodes, or devices requiring integrated sensors and enclosures out of the box; this kit is a development board, not a finished product.

Pros & Cons

Pros

• Integrated ESP32-S3 and SX1262 give combined Wi-Fi, BLE and LoRa in one board for flexible networking.
• Onboard 0.96in OLED provides immediate visual feedback for debugging and battery status.
• Battery support with charging and protection makes it easy to run remote prototypes without external power modules.
• USB Type-C and CP2102 simplify programming and power connections on modern hosts.

Cons

• As a development module, it lacks an enclosure and integrated sensors, so additional parts are needed for finished deployments.
• The detailed radio performance will vary by regional frequency plan; users must match the board to local LoRa frequency bands.

Specifications

MCU	ESP32-S3 dual-core LX7 up to 240 MHz
LoRa chip	SX1262 transceiver (LoRa V3)
Display	0.96in 128x64 dot matrix OLED
USB	Type-C with CP2102 USB-serial
Battery	Onboard SH1.25-2 lithium interface with charge and protection
Frequency	915 MHz (V3); product also references 433/868 MHz capability variants
Antenna	Included LoRa antenna and reserved IPEX for external LoRa antenna

Our Verdict

The AITRIP ESP32 LoRa 0.96in OLED development boards are a strong value for hobbyists and developers who need a compact, battery-ready LoRa node with a local display and modern USB connectivity. They remove several integration headaches by combining the ESP32-S3, SX1262 and battery management on the same board, making rapid prototyping and small deployments straightforward.

Frequently Asked Questions

Does this board support battery charging?
Yes, it includes a lithium battery interface with charging, overcharge protection and automatic USB/battery power switching.

What wireless protocols are available?
The board integrates Wi-Fi, BLE and LoRa via the ESP32-S3 and SX1262 chips for mixed connectivity options.

Is an external antenna required?
An antenna is included and there is a reserved IPEX connector if a different external LoRa antenna is preferred.
