ESP32 LoRa V3 Development Board with Battery - Practical IoT Tool

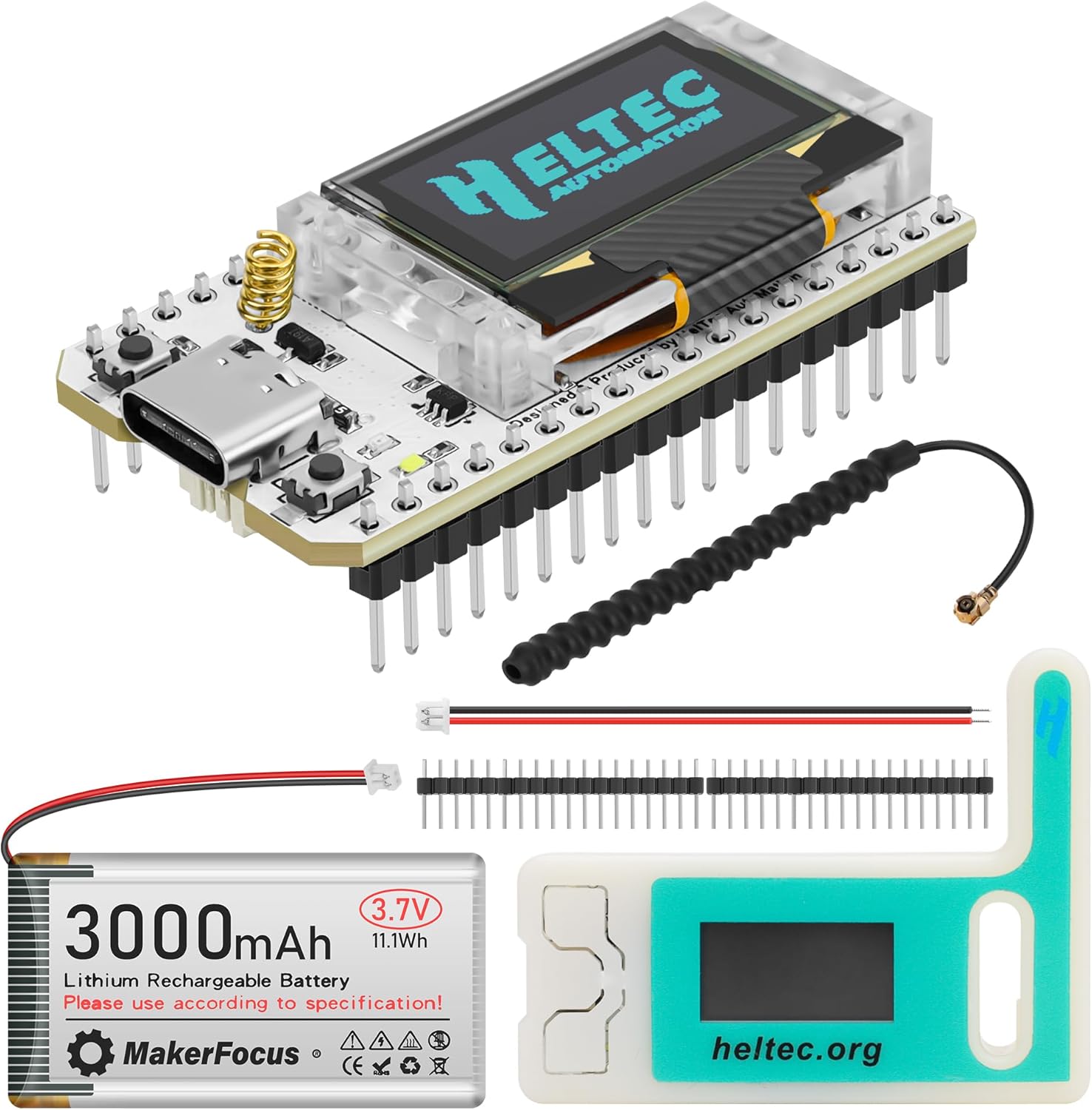

In this review of the ESP32 LoRa V3 development board, a reviewer-level inspection focuses on who will benefit most and why. The board is aimed at developers and tinkerers who need a compact, battery-powered node with integrated WiFi, Bluetooth and LoRa connectivity. Its biggest selling point is the combination of an ESP32-S3 microcontroller with an SX1262 LoRa node chip plus a built-in 3000mAh battery and OLED display, which makes it ready for field testing and meshtastic-style networks without requiring a separate power pack.

Key Features

• ESP32-S3 processor: Provides a capable MCU platform up to 240 MHz for Arduino sketches and network stacks.
• SX1262 LoRa radio: Enables long-range LoRa communication compatible with LoRaWAN gateways following the standard protocol.
• Integrated battery management: Onboard SH1.25-2 battery interface and charging system let the board run from the included 3000mAh battery or Type-C power safely.
• Multiple radios: Built-in WiFi, Bluetooth and LoRa let the same board be used for hybrid projects or fallback links without extra modules.
• Onboard OLED display: The 0.96-in 128x64 display is useful for quick diagnostics, showing battery level and simple debug output in the field.
• Type-C and CP2102 USB: Type-C power and an integrated CP2102 USB-serial chip make programming and debugging straightforward from a laptop.

Who It's For

This board suits IoT developers building mesh or long-range sensor nodes, hobbyists using Meshtastic or custom LoRa networks, and field testers who need a rechargeable, self-contained node. Its mix of radios and the onboard display simplify rapid prototyping of smart-city, farm or home monitoring use cases.

Those who need guaranteed ultra-low power for multi-month battery life, or who require extensive vendor documentation and enterprise support, should consider dedicated low-power modules or development kits with richer documentation. Also, check antenna length before buying a case if you plan to use long LoRa antennas.

Pros & Cons

Pros

• Integrated WiFi, Bluetooth and LoRa provide flexible networking options for hybrid projects.
• Built-in 3000mAh battery and battery management make it ready for portable deployments without additional hardware.
• Onboard OLED and CP2102 simplify debugging and firmware work during development.
• Type-C power and solid RF circuit design make it practical for field use.

Cons

• Some users report mixed stability and battery life that can be power hungry under heavy use.
• Not all LoRa antennas will fit the protective case without trimming the antenna shell, which requires care.

Specifications

Microprocessor	ESP32-S3FN8 up to 240 MHz
LoRa Chip	SX1262
Battery	3000mAh lithium, onboard management, SH1.25-2 interface
Display	0.96-in 128x64 OLED
USB and Serial	Type-C power, integrated CP2102 USB-serial
Antennas	Onboard 2.4 GHz metal spring for WiFi/Bluetooth, reserved IPEX (U.FL) for LoRa

Our Verdict

The ESP32 LoRa V3 development board is a practical, well-rounded choice for makers and IoT developers who want a single node that handles WiFi, Bluetooth and LoRa with an onboard battery and display. It offers good value for rapid prototyping and field trials, though those seeking the lowest possible power consumption or formal documentation support may need a different kit.

Frequently Asked Questions

Does this board work with Arduino?
Yes. It supports the Arduino development environment and libraries for ESP32 and LoRa, allowing standard Arduino sketches and LoRaWAN stacks.

Can the LoRa antenna be used inside the protective case?
Sometimes the full antenna shell is too long for the case; you may need to shorten the antenna protective shell carefully to fit without damaging the internal copper tube.

How is battery charging handled?
The board includes a lithium battery management system on the SH1.25-2 interface and can also be powered or charged via the Type-C port with built-in protection measures.
