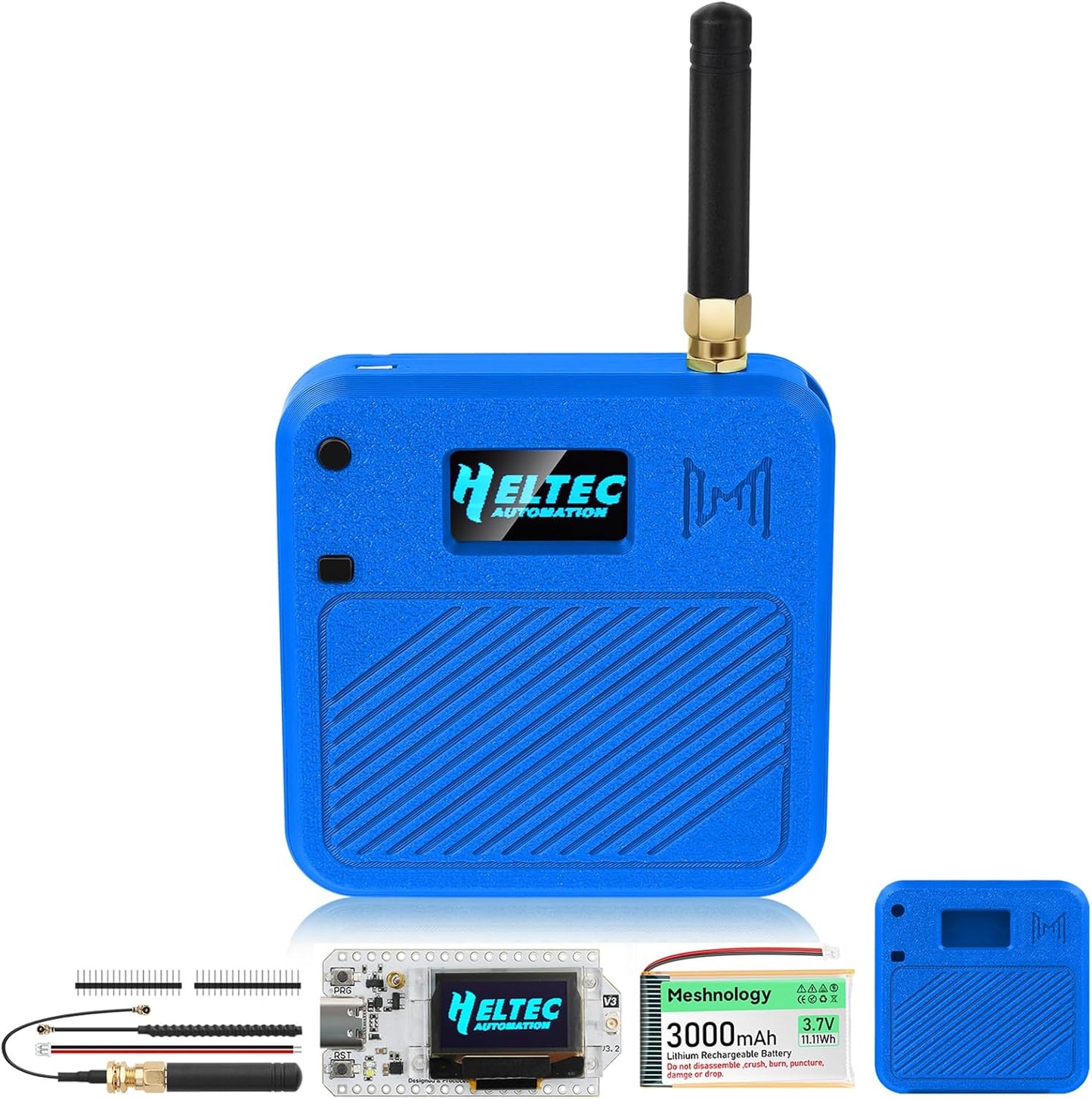

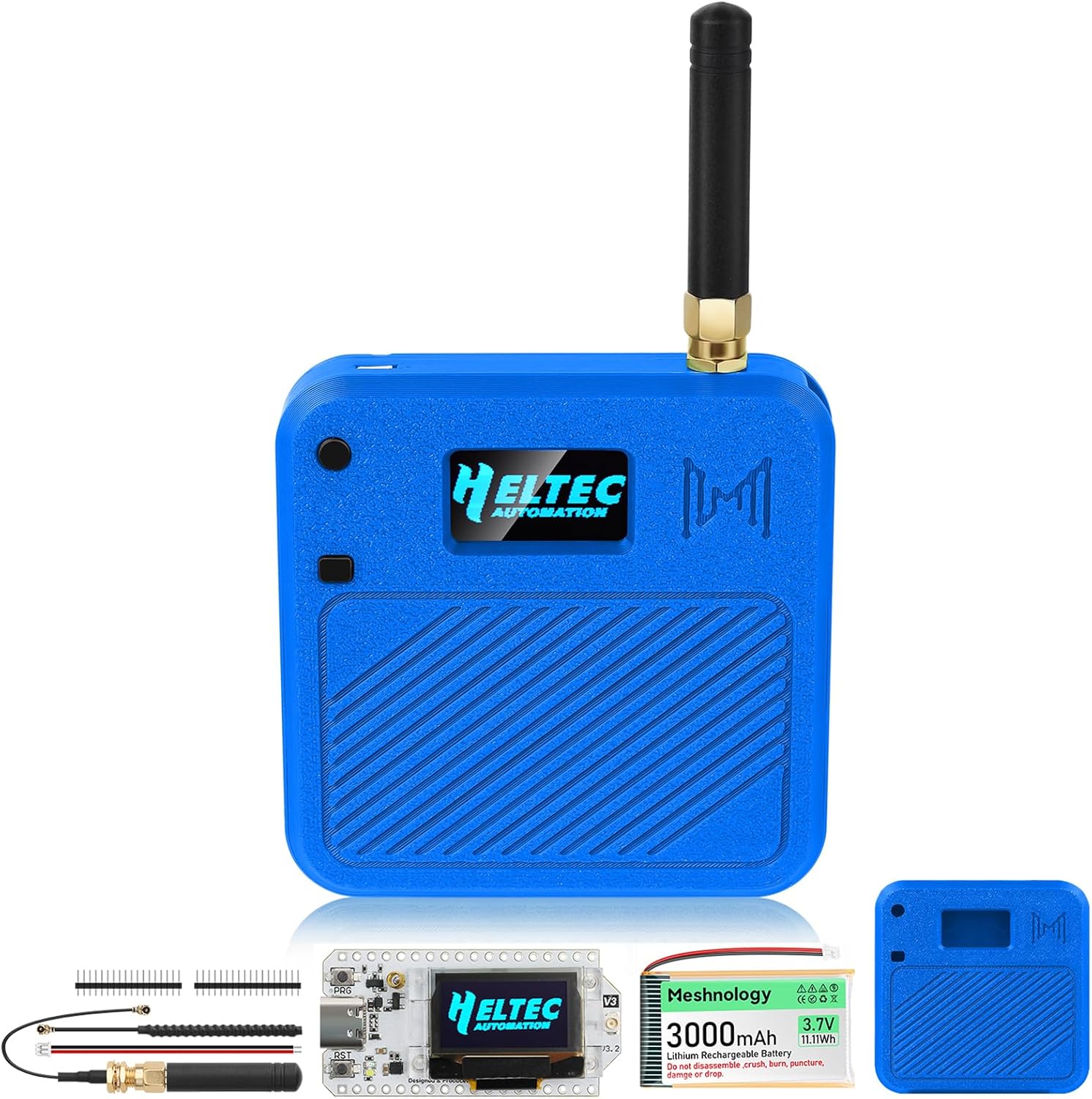

ESP32 LoRa V3 Development Board with SX1262 Antennas - Versatile IoT

In this review the ESP32 LoRa V3 Development Board is judged as a practical, ready-to-deploy option for makers and field engineers who need long-range wireless links plus on-board computing. The single biggest reason to buy is its combination of an advanced ESP32-S3 microcontroller and a high-performance SX1262 LoRa radio in a packaged kit that includes antennas, a 3000mAh battery and a tailored case, so prototypes can move from bench to field without hunting for parts.

Key Features

• Processor: The ESP32-S3FN8 dual-core LX7 processor at up to 240 MHz provides plenty of headroom for multitasking network stacks and sensor code.
• Wireless combo: Integrated WiFi, Bluetooth 5 LE and LoRa support lets projects bridge local and long-range networks without extra radios.
• Long-range radio: The SX1262 LoRa node chip delivers up to 21dBm transmit power and -134dBm sensitivity for reliable long-distance links in LoRaWAN or meshtastic setups.
• Portable power: The included 3000mAh Li-ion cell with protection and an integrated battery management system supports USB/battery auto-switching and capacity readout on the OLED.
• Field-ready enclosure: The N32 blue case is cut to fit the display, buttons, charging port and antennas for a snug, durable deployment shell.
• Developer interfaces: Type-C USB, multiple ADCs, UART, I2C, SPI and a 2102 USB-to-serial converter make Arduino-style development and debugging straightforward.

Who It's For

This board is well suited to hobbyists and developers working on IoT projects that require long-range communication, such as mesh networks, remote sensors, or LoRaWAN prototyping, and to users who want an integrated, portable kit that includes antennas and a battery. The built-in OLED and battery monitoring make it convenient for field testing and short deployments.

Those who need enterprise-level certification, very long battery life beyond the included 3000mAh cell, or a guaranteed perfect case fit for large custom antennas should consider alternative modules or separate enclosures, since some users report mixed fit and moderate battery endurance in heavy-use scenarios.

Pros & Cons

Pros

• Integrated ESP32-S3 with WiFi and Bluetooth plus LoRa on one board reduces the need for extra modules.
• Powerful SX1262 radio provides strong range and sensitivity for rural or city deployments.
• Includes a 3000mAh battery and a custom case so the kit is ready for field trials out of the box.
• Developer-friendly interfaces and a USB-to-serial bridge simplify programming and debugging.

Cons

• Some customers report imperfect fit of the case around ports and connectors, which can require minor adjustments.
• Battery life is variable under heavy use and may require larger cells for multi-day powered deployments.

Specifications

Microcontroller	ESP32-S3FN8 dual-core LX7 (up to 240 MHz)
LoRa chip	SX1262, up to 21dBm transmit, -134dBm sensitivity
Wireless	WiFi, Bluetooth 5 LE, LoRa 915MHz
Battery	3000mAh Li-ion with protection and battery management
Display	0.96-in OLED for status and battery level
Interfaces	Type-C USB, UART, I2C, SPI, ADCs, touch sensors, U.FL reserved
Case	N32 blue shell sized for board, battery and antennas

Our Verdict

The ESP32 LoRa V3 kit is a practical, cost-effective choice for makers and field testers who want an all-in-one device that marries a capable ESP32-S3 core with a high-performance LoRa radio and a ready-to-use battery and case. It delivers strong value for prototyping and short deployments, though power-hungry applications or those demanding perfect case fit may need additional accessories.

Frequently Asked Questions

Does the kit include antennas for 915MHz?
Yes, the package includes 915MHz antennas matched to the SX1262 radio for immediate radio testing.

Can it be programmed with Arduino?
Yes, the board is compatible with Arduino-style development and includes a 2102 USB-to-serial converter for easy flashing and debugging.

Is the battery protected and monitored?
Yes, the 3000mAh battery has a protection circuit and the board provides battery level monitoring on the OLED with USB/battery auto-switching.
