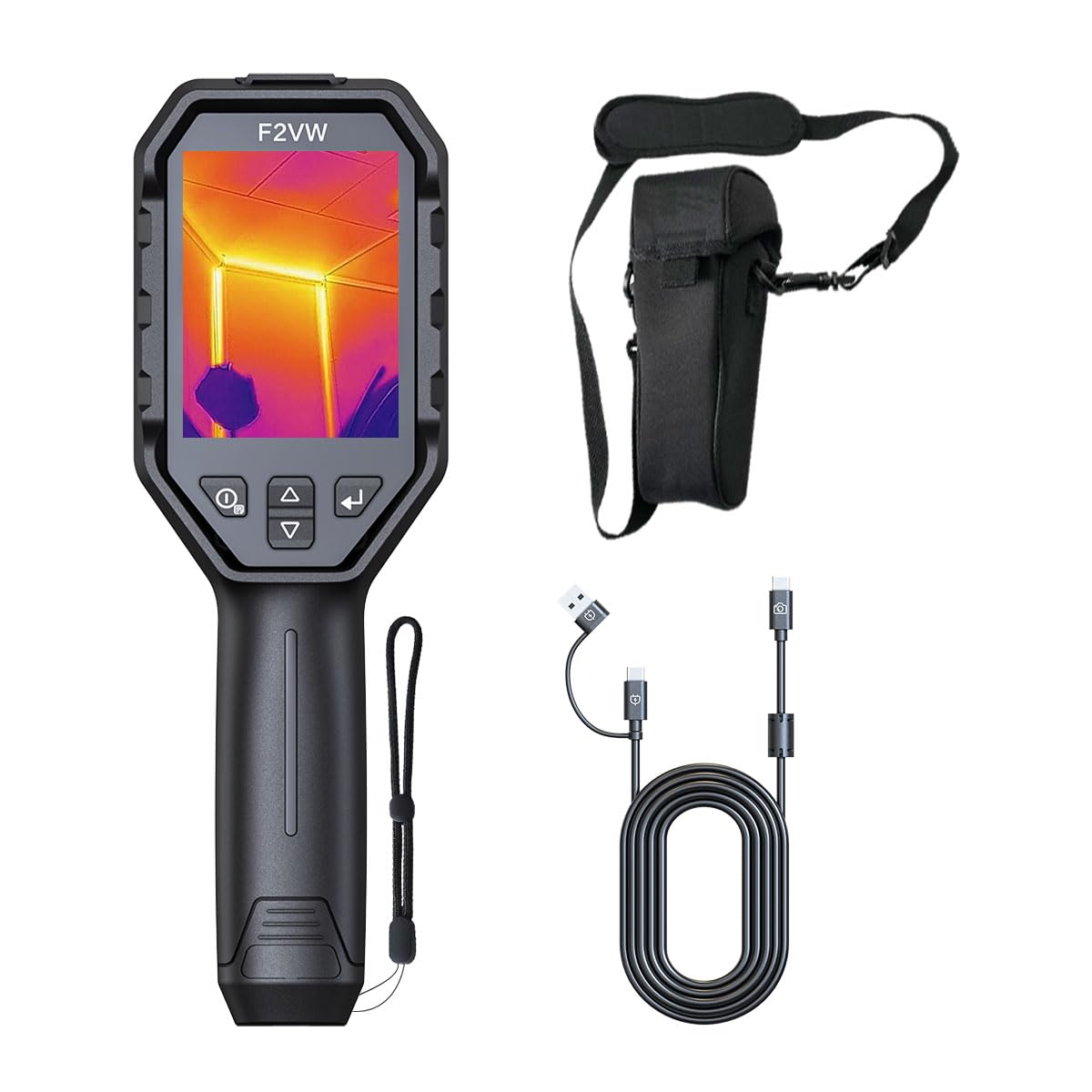

F2VW Thermal Camera 256x192 to 640x480 - Dual Camera Thermal Imager

In this review the F2VW thermal camera is evaluated as a midrange inspection tool for technicians and facility managers who need fast anomaly detection and clear thermal detail. The single biggest reason to consider it is the Live Super Resolution processing that boosts observed image quality on the builtin 3.2' screen, making small temperature differentials and edge details far easier to interpret in the field. The review focuses on practicality: image modes, temperature reporting, portability and how the imager performs during routine troubleshooting.

Key Features

• Live Super Resolution: Enhances the raw 256x192 detector output to a simulated 640x480 imaging resolution for clearer onscreen detail when inspecting components.
• Dual Camera: Builtin visual camera works with the thermal sensor to provide Visual, Thermal, Fusion and PIP modes so users can document readable labels and align thermal anomalies with photographs.
• Wide temperature range: Measures from about -4F to 1022F and can track hottest, coldest and center spots plus three user defined spots for quick anomaly recognition.
• Fast refresh and sensitivity: A 25 Hz frame rate combined with thermal sensitivity below 40 mK helps reveal subtle temperature changes and moving targets with minimal motion blur.
• Connectivity and storage: WiFi support allows image transfer to a smartphone or tablet and the unit includes 16 GB of internal storage for onsite documentation.
• Field convenience: Compact design with a carrying case, builtin LED flashlight and a 1/4'20 tripod hole make it practical for inspections in dim or hard to reach locations.

Who It's For

The F2VW is aimed at electrical and mechanical technicians, building inspectors and maintenance teams who need a portable thermal imager that balances image clarity with practical inspection features. The enhanced resolution and dual camera modes make it useful for identifying hot spots on panels, motors, insulation or roofing while recording visual context.

Less suitable users include those who need laboratorygrade accuracy or very high detector resolution for advanced research; while the device provides accurate readings for field work, it is positioned as an inspection tool rather than a metrology instrument.

Pros & Cons

Pros

• Live Super Resolution makes thermal images easier to interpret on the 3.2' display for routine inspections.
• Dual visual and infrared cameras with Fusion and PIP modes improve documentation and correlation of issues.
• Wide temperature range, automatic spot tracking and user spots speed up anomaly detection on site.
• WiFi, onboard 16 GB storage and practical accessories support workflow and sharing.

Cons

• Not intended as a laboratory metrology tool; measurement accuracy is suitable for field diagnostics but not precision calibration work.
• Simulated higher imaging resolution is algorithmic enhancement rather than a native detector resolution increase.

Specifications

Detector resolution	256x192
Imaging resolution (super resolution)	640x480
Screen size	3.2' LCD, 25 Hz refresh
Temperature range	-4F to 1022F
Thermal sensitivity	<40 mK (0.04C)
Storage	16 GB internal
Image modes	Visual / Thermal / Fusion / PIP

Our Verdict

The F2VW thermal imager offers strong value for maintenance professionals who need a portable, easy to use camera that improves onscreen detail with Live Super Resolution and provides useful workflow features like WiFi and 16 GB storage. It is a practical inspection camera for facility troubleshooting and preventive maintenance, but those needing laboratory accuracy or native high detector resolution should consider specialized instruments.

Frequently Asked Questions

Can this camera share images to a phone?
Yes. The unit supports WiFi for transferring images to a smartphone or tablet for quick sharing and reporting.

How is temperature accuracy managed?
It uses a VOx detector with sensitivity below 40 mK and allows emissivity and distance adjustments; stated discrepancy is within max(3.6F, 2%) for practical field measurements.

Does it record both thermal and visual images at once?
Yes. Pulling the trigger captures synchronized thermal and visual images and the camera supports Fusion and PIP modes for combined views.
