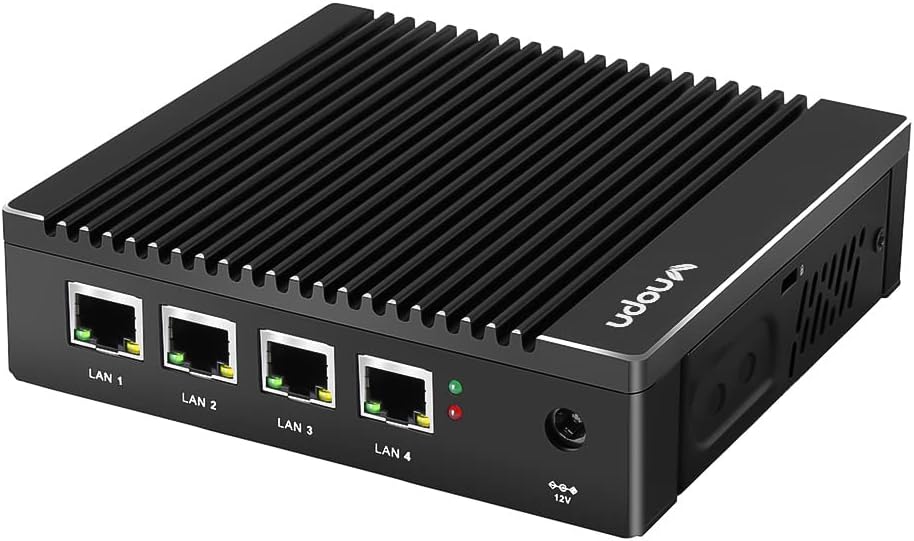

Fanless Micro Firewall Appliance Intel J4125 Quad Core - Compact 4 NIC

In this review of the Fanless Micro Firewall Appliance with the Intel J4125 quad core, the bottom line is simple: this is a compact, low-power hardware platform for users who need a quiet, reliable edge router or soft firewall. The unit's biggest selling point is its combination of four Intel GbE ports and support for AES NI, which makes it especially useful for encrypted VPN throughput and stable soft routing. It arrives preinstalled and supports popular open source firewall distributions, so reviewers found it straightforward to deploy as a home or small office gateway.

Key Features

• Intel J4125 Processor: A quad core CPU up to 2.7GHz provides enough processing headroom for typical firewall, VPN and routing tasks without high power draw.
• 4x Intel GbE Ports: Four Intel i225/i226 gigabit LAN ports deliver stable wired connectivity and predictable throughput for multi-WAN and VLAN setups.
• Fanless Design: Passive cooling means completely silent operation and reduced maintenance for always-on network appliances.
• 8GB RAM and 128GB mSATA: Included memory and storage allow for modern firewall images and some hypervisor or logging use cases, with upgrade paths available.
• Small Footprint: At roughly 5.27 x 5 x 1.43 in and with a VESA mount, it can hide behind a monitor or be wall-mounted to save desk space.
• Boot and Power Options: Supports Auto Power On, Wake on LAN, RTC wake and PXE boot which helps in remote and headless deployments.

Who It's For

This box suits home lab enthusiasts, small office IT admins and anyone building a compact gateway who prioritizes silent operation and reliable Intel NICs. Because it supports AES NI and has four gigabit ports, it is a natural fit for VPN termination, multi-WAN failover and VLAN-segmented networks where software routing stacks like pfSense or Ubuntu-based routers are used.

It is less appropriate for users who need very high RAM or storage density on a single device, or those who plan heavy virtualization: the system has only one SODIMM slot (max 16GB) and one mSATA slot (max 512GB), so larger-scale hypervisor hosts should look at larger mini PCs or rack hardware.

Pros & Cons

Pros

• Quiet, fanless operation ideal for 24/7 use in offices or homes.
• Four Intel GbE ports using i225/i226 chips offer stable wired networking performance.
• Preinstalled system and support for popular open source firewall software shorten setup time.
• Low 10W TDP and full aluminum case make it durable and energy efficient.

Cons

• Only one SODIMM slot limits maximum RAM to 16GB, which constrains large-scale virtual appliances.
• Fanless, all-aluminum case runs warm under sustained high load since the chassis acts as the heatsink.

Specifications

Processor	Intel J4125 quad core up to 2.7GHz
Network Ports	4x Intel GbE (i225/i226) RJ45
Memory	8GB DDR4 (1x SODIMM, upgradable to 16GB)
Storage	128GB mSATA SSD (1x mSATA, up to 512GB)
Power	12V/3A adapter included, 10W typical TDP
Video & I/O	1x HDMI, 1x VGA, 2x USB3.0, 1x DC IN
Dimensions & Weight	5.27 x 5 x 1.43 in, 0.6kg with VESA bracket

Our Verdict

The Fanless Micro Firewall Appliance with the Intel J4125 is a sensible, value-oriented choice for home labs and small offices that need a quiet, capable gateway with reliable Intel network ports and AES NI support. It is compact, energy efficient and easy to deploy with popular open source firewall software; buy it if you need a dedicated soft router with low noise and solid wired performance, but look elsewhere if you require large RAM or storage capacity for heavy virtualization.

Frequently Asked Questions

Can this run pfSense or other open source firewall OS?
Yes. The device was tested with pfSense, Linux and Ubuntu flavors and supports common open source firewall and router distributions.

Is the unit noisy during operation?
No. The unit uses a fanless passive cooling design so it runs silently and is suitable for 24/7 use in quiet environments.

How many NICs and what type are provided?
It includes four Intel GbE ports using i225/i226 chips, providing stable gigabit wired connectivity for routing and VLAN setups.
