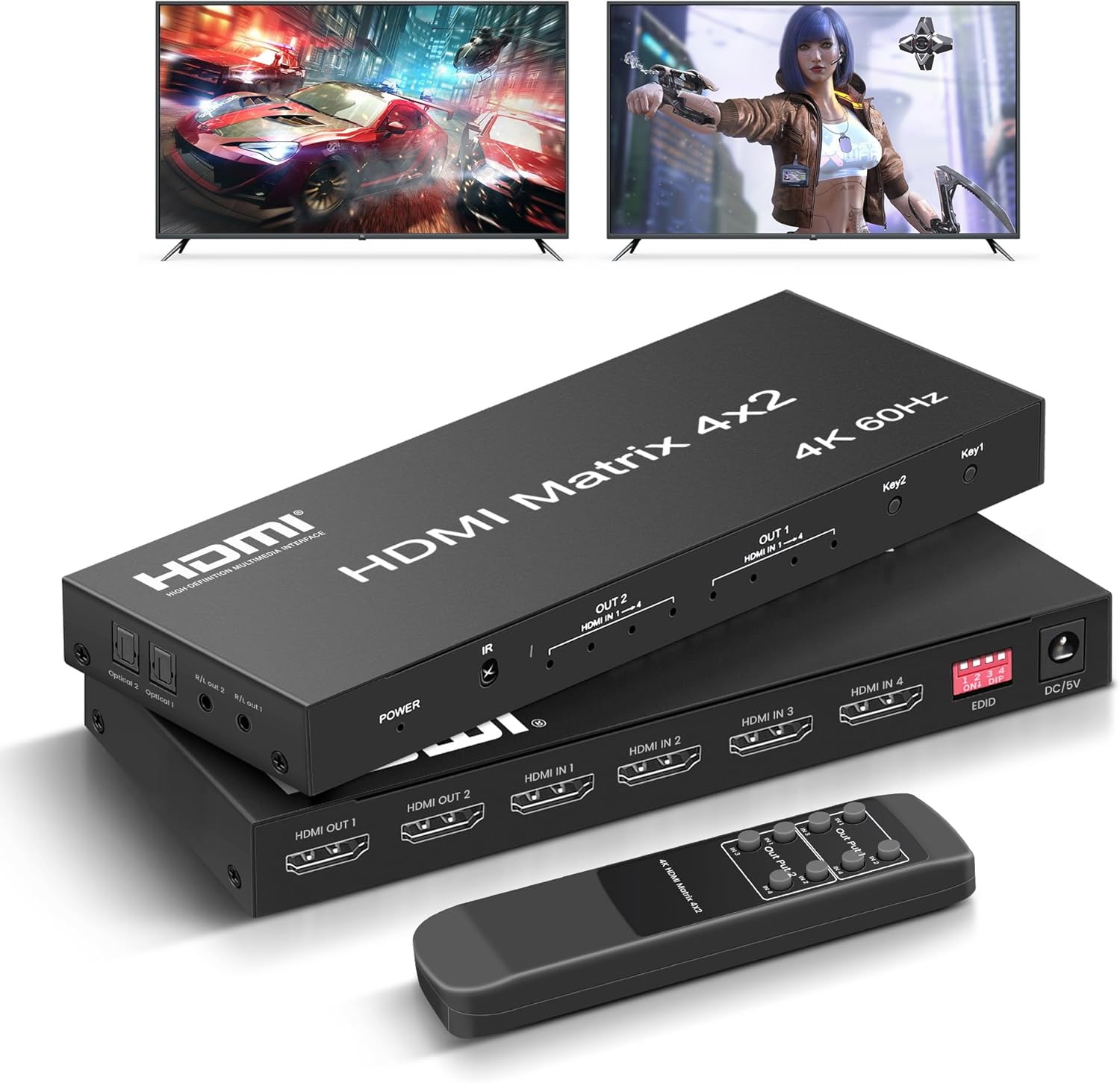

FERRISA 4x2 HDMI Matrix 4K@60Hz - Flexible 4-in 2-out Switch Splitter

In this review the FERRISA 4x2 HDMI Matrix earns a recommendation for anyone who needs reliable signal routing and simple audio extraction between multiple 4K sources and two displays. The biggest reason to buy is straightforward: it lets a user switch or mirror four HDMI sources to two displays while offering independent SPDIF or 3.5mm audio outputs, making it useful for home theater, meeting rooms, or retail displays. Setup is plug-and-play and the metal case feels durable, so it performs like a professional distribution tool without complicated configuration.

Key Features

• 4K@60Hz 4x2 switching: Freely switch or mirror up to four HDMI sources across two displays, useful for sharing multiple inputs without rewiring.
• High resolution support: Supports up to 4K@60Hz, 1080P and 3D with HDMI 2.0 and HDCP2.2 compatibility for current media players and consoles.
• Audio extraction: Extract audio from any input independently via optical SPDIF or 3.5mm output so sound can feed a receiver or headphones.
• Auto downscaler: Automatically downgrades 4K to 1080P when needed so mixed-resolution displays can be used together.
• EDID and format control: Smart EDID management helps match resolution and audio format to connected displays and sound systems.
• Durable metal chassis: Metal shell provides heat dissipation and long-term durability for continuous operation in installations.

Who It's For

This device is aimed at homeowners building a flexible media center, AV installers in small offices or classrooms, and retail or exhibit operators who need to mirror multiple inputs to two screens. It is especially handy where independent audio extraction is required for a separate sound system or headphones.

Those who need extended desktop displays, daisy-chaining of more than two outputs, or advanced matrix routing beyond mirroring should look elsewhere. Also, users requiring on-screen configuration menus or network management will find this unit intentionally basic.

Pros & Cons

Pros

• Solid build quality and simple plug-and-play setup works well in real installations.
• Supports modern video features including 4K@60Hz, 3D and up to 12-bit deep color for clean images.
• Flexible audio options with both optical SPDIF and 3.5mm outputs allow separate sound routing.
• Automatic equalization and amplification preserve signal quality over typical cable runs.

Cons

• Only mirrors outputs; it does not support extended displays or individual windowed outputs per screen.
• Remote requires AAA batteries which are not included, so a small extra purchase is needed.

Specifications

Device type	4x2 HDMI Matrix Switch Splitter
Video support	Up to 4K@60Hz, 1080P, 3D
HDMI version	HDMI 2.0 with HDCP2.2
Audio outputs	Optical SPDIF and 3.5mm stereo
Data rate	Up to 18 Gbps, 600 MHz bandwidth
Build	Metal shell with IR remote and manual buttons
Included items	Matrix unit, IR remote, 5V power adapter, user manual

Our Verdict

The FERRISA 4x2 HDMI Matrix is a practical, well-built solution for anyone who needs to mirror multiple HDMI sources to two displays while extracting audio separately. It offers modern video support, dependable signal handling and useful EDID control at a price that represents good value for small theaters, conference rooms and retail displays.

Frequently Asked Questions

Can this unit output different resolutions to each display?
Yes - the matrix can send a 4K signal to one monitor and 1080P to another by using the auto downscaler when needed.

Does it extract multichannel audio?
It supports LPCM and common surround formats such as DTS 5.1 and Dolby AC3 via SPDIF or stereo on the 3.5mm jack depending on EDID settings.

Is the remote included and ready to use?
The IR remote is included but requires AAA batteries which are not supplied in the box.
