Flange Two Hole Alignment Pins 1-1/8 & 1-5/8 - Built-In Level

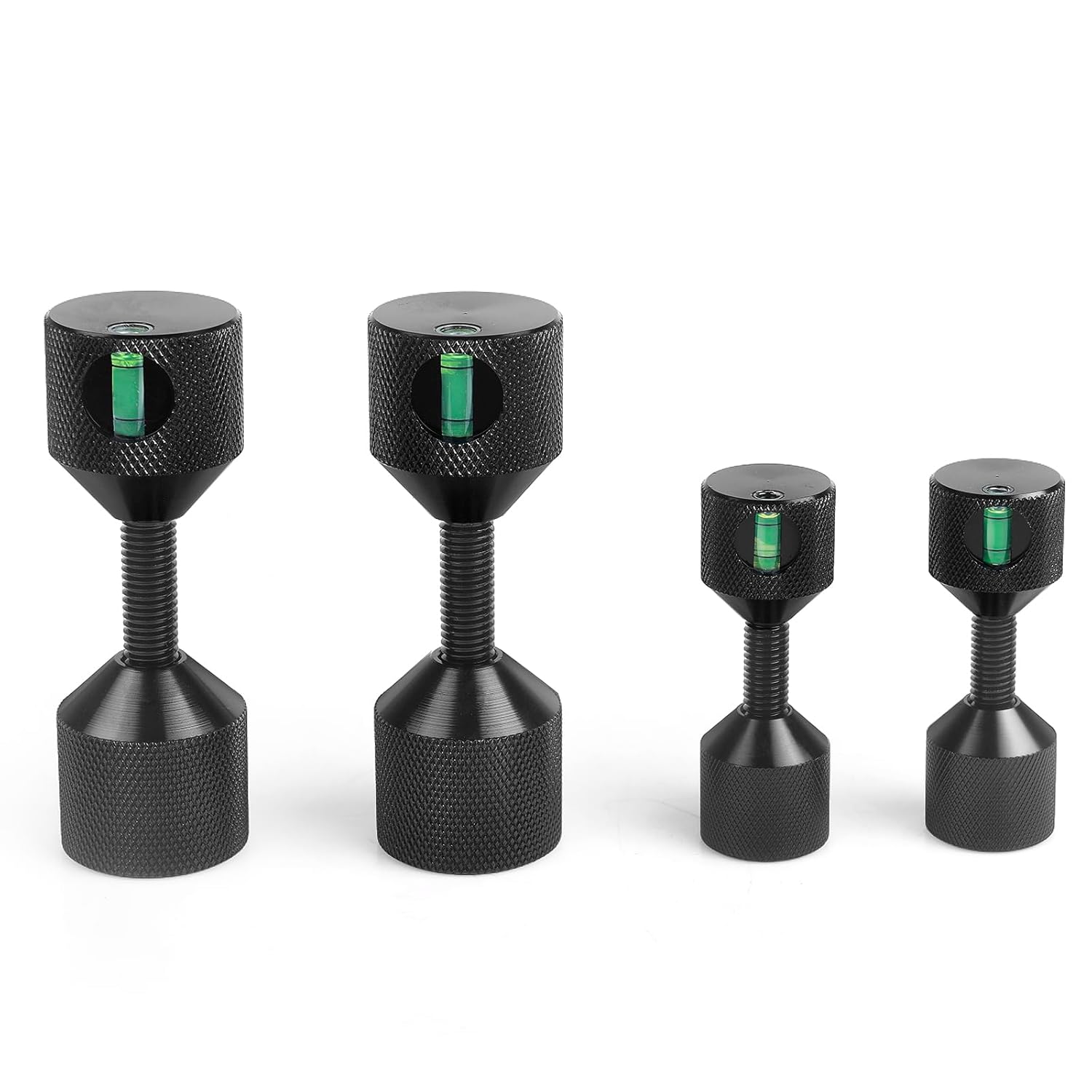

In this review the reviewer examines a set of flange two hole alignment pins designed for mechanical and industrial use, highlighting the single biggest reason to buy: the integrated bubble level that speeds up setup and reduces the need for extra tools. The set includes two sizes, 1-1/8 in and 1-5/8 in, and is crafted from high-grade aluminum with a black finish. For technicians who need quick, repeatable flange alignment on assemblies or vehicles, the built-in level and two-hole alignment ensure a fast and accurate fit, while longevity comes from the corrosion-resistant aluminum construction.

Key Features

• Built-In Level: The integrated bubble level lets users confirm a flange is plumb without fetching a separate level, saving time on setup and aligning components at first try.
• Two Hole Alignment: The two-hole design gives a secure, repeatable locating method that maintains precise positioning of attached parts and reduces play.
• Dual Pin Sizes: Including 1-1/8 in and 1-5/8 in pins accommodates multiple mounting patterns and increases compatibility with varied equipment.
• Aluminum Construction: High-grade 6061 aluminum offers resistance to corrosion and wear for longer service life in industrial and automotive environments.
• Detachable Flange Design: The detachable flange option simplifies installation and removal when access is limited or when components must be swapped quickly.

Who It's For

The set is aimed at mechanics, shop technicians, and engineers who perform routine flange alignments, fixtures, or equipment returns to service and need a compact alignment tool that reduces steps in the workflow. The built-in level and two sizes make it useful for field service and shop work where carrying fewer tools is an advantage.

Those who should look elsewhere include heavy-load structural applications that require hardened steel pins or where dimensional specs beyond the provided sizes are mandatory; this aluminum set is optimized for alignment and moderate-duty use rather than high-shear structural fastening.

Pros & Cons

Pros

• Integrated level speeds installation and reduces the need for an extra tool on site.
• Two different pin sizes increase versatility across multiple mounting scenarios.
• Aluminum construction resists corrosion and keeps the pins lightweight for handling.

Cons

• Aluminum pins can bend under heavy loads, so not ideal where high-strength steel pins are required.

Specifications

Our Verdict

The flange two hole alignment pins are a practical, good-value tool for technicians who prioritize quick, accurate setups and portability. With a built-in level and two useful pin sizes, the set reduces the need for separate alignment tools and offers reliable corrosion resistance, but buyers needing maximum shear strength should choose steel alternatives.

Frequently Asked Questions

Are these pins suitable for outdoor use?
Yes, the 6061 aluminum resists corrosion and performs well outdoors, though prolonged exposure to harsh chemicals may require additional protection.

Do both pins include the built-in level?
Yes, the design includes the built-in bubble level so users can check flange level without a separate tool.

Can these pins be used for heavy structural loads?
They are intended for alignment and moderate-duty connections; aluminum pins can bend under heavy shear or impact loads, so steel pins are preferable for heavy structural use.
