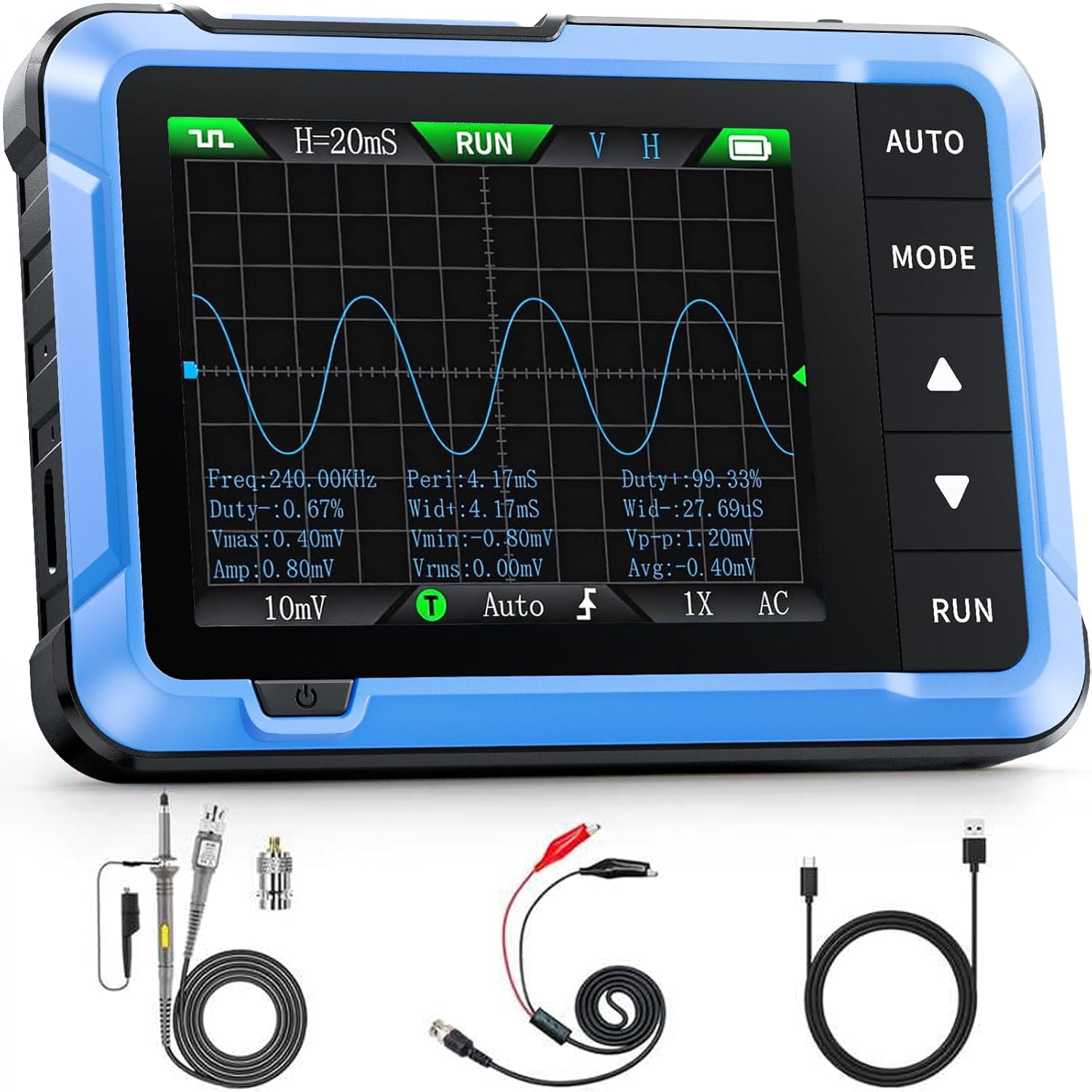

FNIRSI DSO-510 Handheld Oscilloscope/DDS Signal Generator - Portable

In this review the FNIRSI DSO-510 is examined as a compact, two-in-one tool aimed at hobbyists and automotive technicians who need a portable oscilloscope with a built-in signal generator. The biggest reason to consider it is the combination of a 10 MHz oscilloscope and a DDS signal generator in a pocketable package: it covers basic waveform capture and can output up to 13 waveform types to simulate signals for testing or diagnosis. For quick checks and field work the device trades heavyweight lab features for convenience and value.

Key Features

• 10 MHz bandwidth: Provides enough frequency response for common automotive and audio troubleshooting up to 10 MHz with a 48 MS/s sampling rate for clearer waveform detail.
• Wide time base range: The 50 ns to 20 s time base span supports both fast transients and long, slow signal observation for varied diagnostic tasks.
• Built-in DDS signal generator: Outputs 13 waveform types with frequencies up to 50 kHz so users can simulate diverse signals and verify circuit responses.
• Portable 2.8 in TFT display: The 320x240 screen is compact and clear enough for field use and benefits from infinite afterglow to help capture transient features.
• One-key AUTO: Automatic parameter optimization makes it straightforward to capture periodic analog and non-periodic digital signals without deep setup.
• Long battery life and USB-C charging: The 1000 mAh battery and Type-C rechargeability make it convenient for extended use away from a bench.

Who It's For

The DSO-510 is best suited to automotive enthusiasts, car audio technicians, and electronics hobbyists who need a compact tester for on-vehicle diagnostics, signal tracing, and basic lab tasks. Its portability and the integrated signal generator make it handy for field checks where carrying a bench instrument is impractical.

It is less appropriate for users who require high-precision laboratory measurements or bandwidth well above 10 MHz; professionals needing advanced triggering, deep memory, or higher resolution should look at larger bench scopes.

Pros & Cons

Pros

• Combines an oscilloscope and a DDS signal generator in a compact handheld unit for flexible field testing.
• Good value for money with useful features like infinite afterglow, waveform save/export, and one-key AUTO for quick setup.
• USB-C charging and a 1000 mAh battery make it convenient for extended portable use.

Cons

• Readability and build impressions are mixed among users; the small 2.8 in screen can be challenging in bright light or for fine detail.
• Not designed for high-end lab work - bandwidth and sampling limitations make it unsuitable for demanding precision applications.

Specifications

Bandwidth	10 MHz
Sampling Rate	48 MS/s
Time Base Range	50 ns to 20 s
Maximum Measurable Voltage	Up to 400 V
Display	2.8 in TFT, 320x240 resolution
Signal Generator	DDS, 13 waveform types, up to 50 kHz
Battery	1000 mAh, USB-C charging

Our Verdict

The FNIRSI DSO-510 is a practical, affordable handheld oscilloscope and DDS signal generator for hobbyists and automotive technicians who need portability and basic lab functions. It delivers strong value with its combined features and battery life, but those who need higher bandwidth or finer readability should consider a larger bench model.

Frequently Asked Questions

Can this unit generate test waveforms?
Yes. The DSO-510 has a built-in DDS signal generator that outputs 13 waveform types and frequencies up to 50 kHz for signal simulation.

Is the display usable outdoors?
The 2.8 in 320x240 TFT is clear for many tasks, but some users report limited readability in very bright conditions due to its small size.

How long does the battery last and how is it charged?
The oscilloscope has a 1000 mAh battery and recharges via a Type-C USB interface for convenient field charging.
