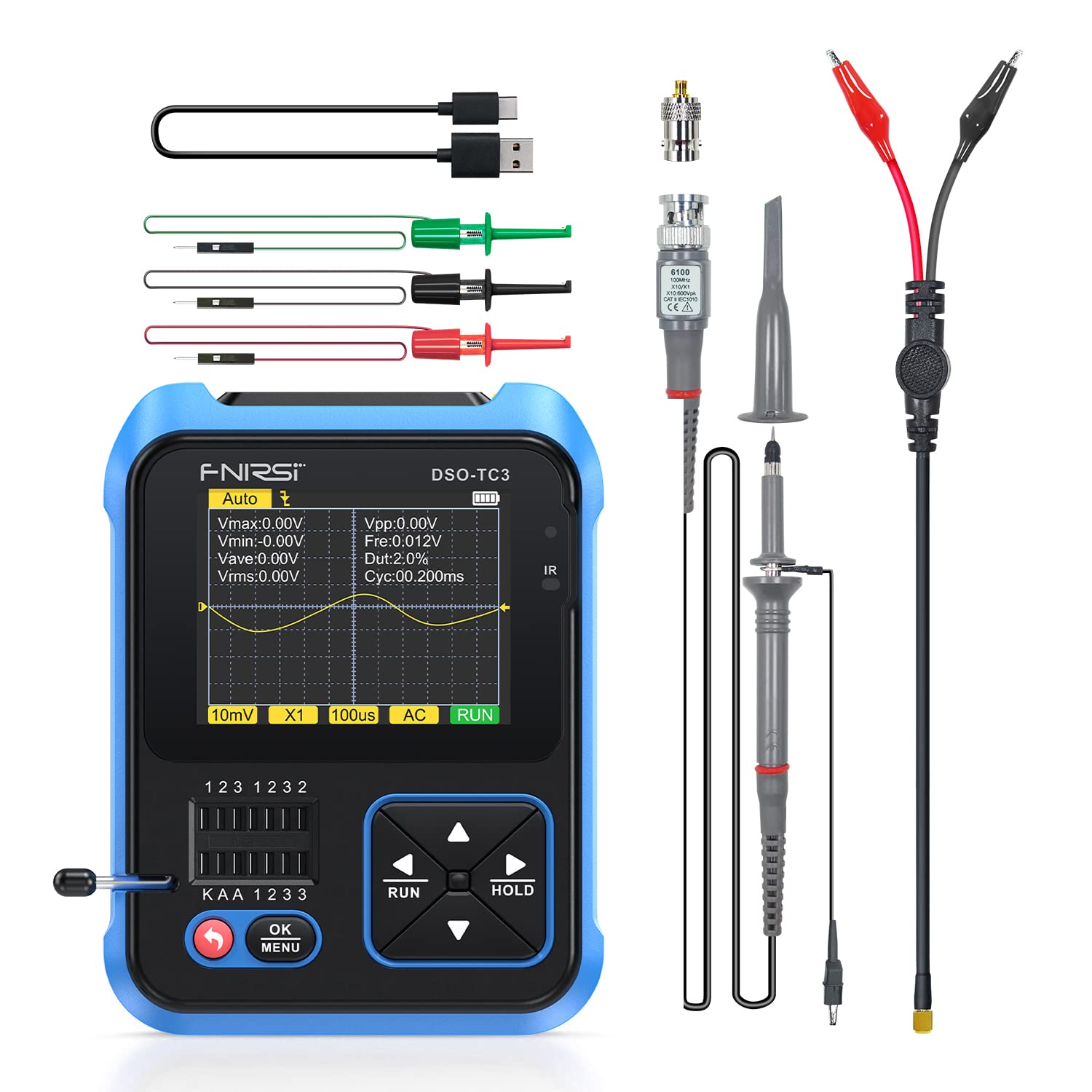

FNIRSI DSO-TC3 Oscilloscope - 3-in-1 Handheld Tester

In this review the FNIRSI DSO-TC3 is assessed as a compact, multipurpose tool for hobbyists and technicians who need a portable oscilloscope plus a component tester and signal generator. The single biggest reason to buy is its combination of useful measurement functions in one handheld unit: a 2.4 in TFT display, a 10 MSa/s sampling rate and a 500 kHz bandwidth make it practical for basic analog and digital troubleshooting on the bench or in the field. It is especially attractive for circuit debugging where a full bench oscilloscope is not available.

Key Features

• Integrated instruments: Combines a digital oscilloscope, component tester and DDS function generator so users carry one compact unit instead of several devices.
• Clear display: The 2.4 in TFT screen provides immediate visual feedback of waveforms and test results in a small, portable package.
• Reasonable bandwidth and sampling: 500 kHz bandwidth with a 10 MSa/s sampling rate is suitable for common analog signals and many digital troubleshooting tasks.
• Component testing: The transistor tester identifies NPN/PNP and N-/P-channel FETs, detects pinouts automatically and measures capacitance and resistance for quick component checks.
• Function generator: Built-in DDS generator produces six waveforms including sine, square, pulse, triangle, ramp and DC for simple signal injection and testing.
• Convenience features: Rechargeable lithium battery and one-key AUTO mode simplify setup and let the device be used away from mains power.

Who It's For

The DSO-TC3 is aimed at electronics hobbyists, students and field technicians who need a lightweight, portable diagnostic tool that covers basic oscilloscope duties plus component identification and a small signal generator. Its combination of functions is useful for quick checks, learning, and small repair tasks where carrying multiple instruments is impractical.

Professionals who require high bandwidth, deep memory, multiple channels or laboratory-grade accuracy should look elsewhere; the DSO-TC3 is not a substitute for a full bench oscilloscope in advanced design or high-frequency test work.

Pros & Cons

Pros

• Very portable 3-in-1 design that replaces several single-purpose tools.
• Useful component tester with automatic pin detection and MOS test mode for capacitance and resistance checks.
• Built-in DDS function generator offering six waveform types for basic signal injection.
• Rechargeable battery and one-key AUTO make it convenient for quick field use.

Cons

• Bandwidth and sampling are modest, so it is limited for high-frequency or precision lab measurements.
• Some users report mixed experience with measurement accuracy and signal strength on harder tests.

Specifications

Our Verdict

The FNIRSI DSO-TC3 is a strong value for hobbyists and technicians who need a portable, all-in-one troubleshooting tool. It delivers practical oscilloscope capability together with a handy component tester and function generator, making it a good buy for everyday repairs and learning. For advanced high-frequency work or precision lab measurements, a dedicated bench instrument is still recommended.

Frequently Asked Questions

Can it test transistors and identify pinouts?
Yes, the component tester automatically detects pin definitions and can identify NPN, PNP and N/P-channel FETs.

What waveforms does the function generator offer?
The DDS generator provides sine, square, pulse, triangle, ramp and DC outputs for basic signal injection.

Is it suitable for professional lab work?
It is useful for field and hobbyist tasks, but its 500 kHz bandwidth and 10 MSa/s sampling limit suitability for professional high-frequency testing.
