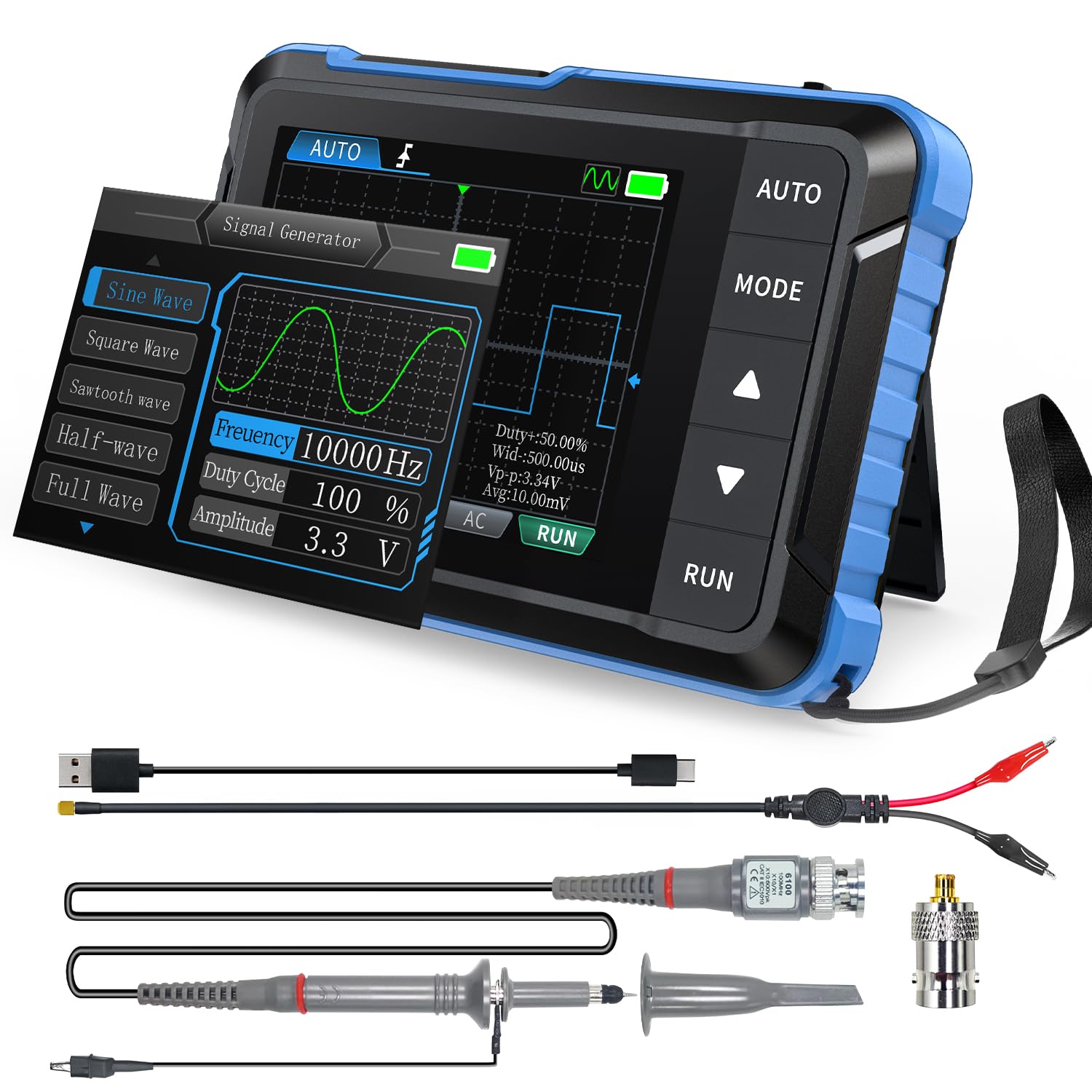

FNIRSI DSO153 Handheld Oscilloscope and DDS Signal Generator

Our review of the FNIRSI DSO153 finds it a compact, practical tool for hobbyists and technicians who need a portable oscilloscope with built-in signal generation. The single biggest reason to buy is its dual-mode functionality: a 1 MHz handheld oscilloscope paired with a DDS signal generator in one pocketable unit, which makes basic circuit diagnosis and component verification much faster without hauling bench equipment. It is particularly useful for field work, automotive checks, and quick bench troubleshooting where space and portability matter.

Key Features

• 1 MHz Bandwidth: Provides sufficient frequency range for many hobby and automotive signals, allowing clear observation of common analog waveforms.
• 5 MS/s Sampling Rate: Offers adequate sampling for signal inspection and simple waveform capture during routine testing.
• DDS Signal Generator: Outputs 14 waveform types with frequencies up to 10 KHz for stimulus and circuit checking without a separate generator.
• Wide Time Base Range: The 500 ns to 20 s time base range handles both fast pulses and long-duration signals for flexible measurements.
• Auto One-Click Setup: Intelligent AUTO calibration quickly stabilizes baseline and displays waveforms without extensive manual adjustment.
• Rechargeable Battery: Built-in 1000 mAh battery with Type-C charging gives hours of use for portable diagnostics.

Who It's For

This unit is aimed at electronics hobbyists, makers, and technicians who need a small, versatile oscilloscope for field or bench use and value portability and convenience over laboratory-grade performance. The integrated DDS generator makes it a good choice for circuit testing, signal injection, and basic component checks.

It is less suited to users who require deep bandwidth, high sample rates, or advanced analysis features for professional lab or RF work; those users should look for higher-spec bench models. Beginners who want a simple, transportable tool will appreciate this unit more than someone needing precision measurement for certification or research.

Pros & Cons

Pros

• Compact form factor and clear 2.8 in TFT display make it easy to use on the go.
• Combined oscilloscope and DDS generator reduces the need for multiple instruments during basic troubleshooting.
• Good battery life for portable use, with convenient Type-C charging and users reporting several hours per charge.
• One-click AUTO setup simplifies measurements and gets usable waveforms quickly.

Cons

• 1 MHz bandwidth and 5 MS/s sampling limit usefulness for high-frequency or precision applications.

Specifications

Model	DSO153 (Enhanced DSO152 version)
Bandwidth	1 MHz
Sampling Rate	5 MS/s
Time Base Range	500 ns to 20 s
Maximum Measured Voltage	Up to 400 V
DDS Output	14 waveforms, up to 10 KHz
Display	2.8 in TFT, 320x240 resolution
Battery	Built-in 1000 mAh, Type-C charging, ~4 hours typical

Our Verdict

The FNIRSI DSO153 is a smart buy for hobbyists and field technicians who need a portable oscilloscope with a useful built-in DDS generator at a modest price. Its compact size, straightforward AUTO setup, and decent battery life deliver strong value for routine signal checks and automotive or electronics troubleshooting, while its limited bandwidth means professionals with demanding frequency needs should consider higher-end alternatives.

Frequently Asked Questions

How long does the battery last?
Typical battery life is about 4 hours per charge under normal use, with some users reporting longer run times depending on settings.

What waveforms can the DDS generator produce?
The built-in DDS can output 14 different waveform types and reaches frequencies up to 10 KHz for basic stimulus and testing.

Is this suitable for automotive diagnostics?
Yes. The portable form factor, 1 MHz bandwidth, and ability to measure voltages up to 400 V make it practical for many common automotive signal checks.
