Four Door Access Control Kit VIS-6570 - TCP/IP Wiegand System

In this review the Visionis VIS-6570 kit is assessed as a turnkey four door access control solution aimed at small businesses, property managers, and installers who need centralized control for multiple entrances. The biggest reason to consider it is the combination of a networked controller with desktop software that supports up to 10,000 users, so day-to-day access management, scheduled rules, and reporting can be handled without cloud subscription. The review focuses on ease of setup, included hardware, and the practical benefits of proximity cards and key tags for routine use.

Key Features

• Four door control: The included VS-AXESS-4ETL controller provides TCP/IP and Wiegand connectivity so four doors can be managed from a single system and integrated with standard readers.
• Large user capacity: Built-in support for up to 10,000 users means businesses can add employees, contractors, and temporary credentials without hitting immediate limits.
• RFID access options: The kit ships with VIS-3101 outdoor IP66 card readers and a set of proximity cards and key tags so users can authenticate by card or fob outdoors.
• Fail safe and fail secure strikes: The package includes four VIS-EL104-FSESA electric strikes with selectable fail safe or fail secure behavior to match different door and safety requirements.
• Schedule and reporting: Desktop software lets administrators create date and time based access rules and keeps an audit trail when registered users use cards or key tags.

Who It's For

The VIS-6570 kit is well suited to small to mid sized commercial sites, multi-tenant buildings, and facilities that need a local, software-driven access system without recurring cloud fees. Installers will appreciate the included hardware and the ability to expand by adding additional door panels if the site grows.

It is less appropriate for homeowners seeking a simple single-door smart lock or for organizations that require a cloud-managed mobile credential platform; this is a LAN-based system that expects on-site integration and basic network configuration.

Pros & Cons

Pros

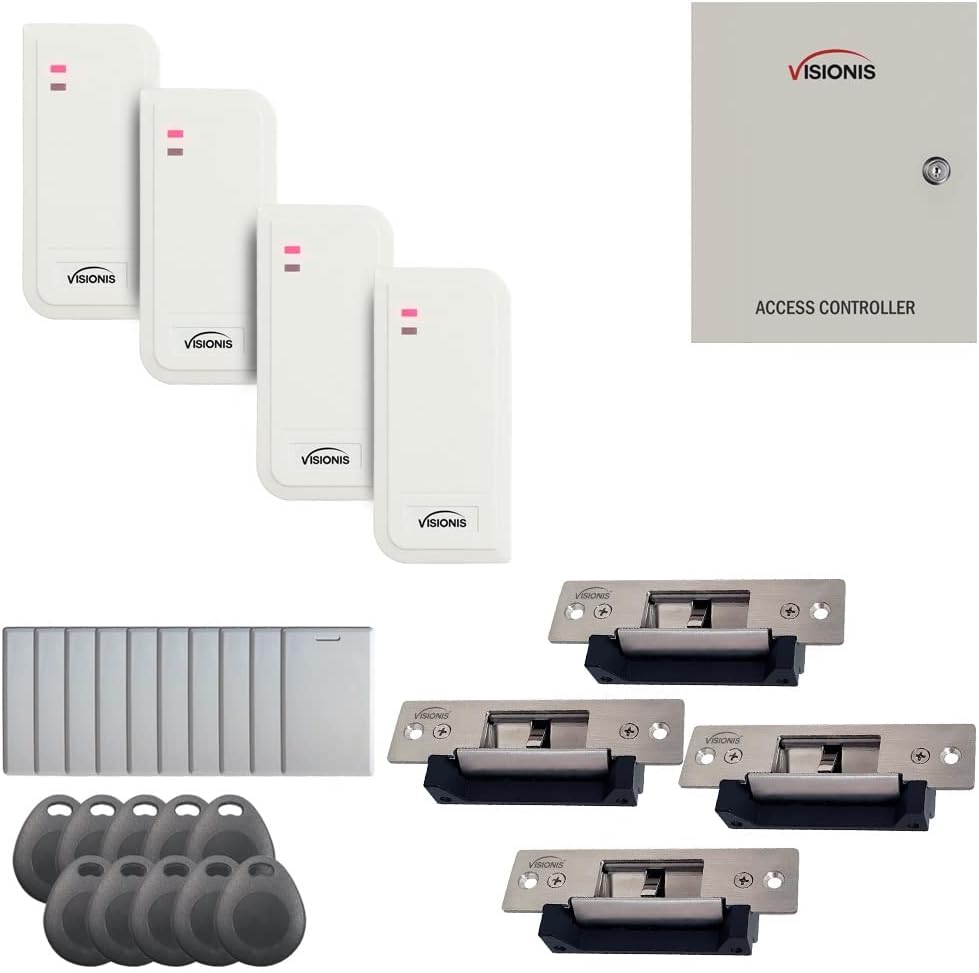

• Complete kit includes controller, four electric strikes, outdoor readers, cards and key tags for faster deployment.
• High user capacity and desktop software allow flexible scheduling and audit reporting without subscription fees.
• Readers are IP66 rated for outdoor installation and the strikes support both fail safe and fail secure modes for varied door setups.

Cons

• Requires local installation and software setup, so an installer or IT-literate user is recommended for reliable configuration.
• There is no native cloud or mobile credential management included, which may be a limitation for teams that want remote administration.

Specifications

Brand	Visionis
Controller	VS-AXESS-4ETL Four Door Network Access Control
User capacity	10,000 users
Readers	VIS-3101 Outdoor IP66 Wiegand 26 Bit
Electric strikes	VIS-EL104-FSESA 2200 lbs, 12V, fail safe/secure
Credentials included	VIS-APROXCARD cards and VIS-KEYTAG keytags (10 each)

Our Verdict

The VIS-6570 is a practical, cost-effective access control kit for organizations that need reliable local control for up to four doors and a large user base. With robust outdoor readers, selectable strike modes, and desktop software for scheduling and reporting, it delivers strong value when on-site installation and LAN management are acceptable tradeoffs.

Frequently Asked Questions

Can the system expand beyond four doors?
Yes; additional door panels can be purchased and integrated to increase the number of controlled doors.

Are the readers weatherproof for exterior use?
Yes; the VIS-3101 readers are rated IP66 for outdoor installations.

How are user schedules and access rules managed?
Access schedules, user permissions, and reporting are managed through the included desktop software that communicates with the VS-AXESS-4ETL controller.
