Four Door Access Control System for Outswing Doors - Time Attendance

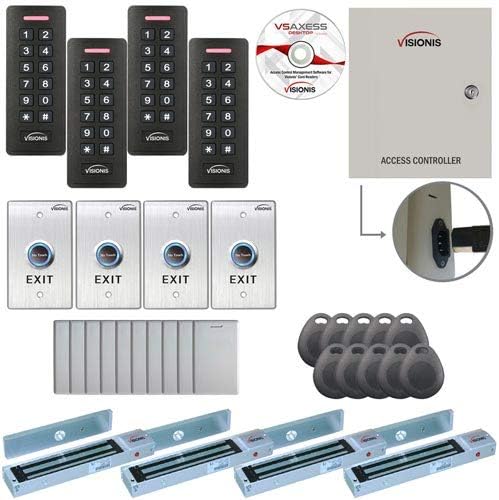

In this review of the Visionis FPC-7295 kit, the bottom line is that it is a complete, hardware-focused four-door access control solution aimed at small to medium sites that need integrated time and attendance. The kit stands out because it bundles heavy-duty 600lb maglocks, IP66 outdoor keypad/readers, a four-door TCP/IP controller with desktop software, and no-touch exit buttons so installers get a nearly turnkey package for outswing doors. It is best for organizations that can run wiring and want on-site control rather than cloud dependency.

Key Features

• Four 600lb maglocks: Each VIS-ML600LED maglock includes an LED sensor so installers can confirm lock status at a glance and secure outswing doors up to 600lbs.
• Weatherproof keypad/readers: The VIS-3008 IP66 card reader and keypad provide outdoor-rated, Wiegand-compatible access with toggle modes and 125kHz EM card support for up to 1,000 users per reader.
• Four-door TCP/IP controller: The VS-AXESS-4ETL controller supports up to 10,000 card or keyfob users and includes desktop software for time and attendance and event reporting.
• No-touch exit buttons: Stainless steel VIS-7013 exit buttons with LED and adjustable time delay offer hygienic, reliable egress and three output options (NC, COM, NO) for flexibility.
• Cards and keyfobs included: The kit ships with ten proximity cards and ten key tags so sites can start enrolling users immediately with 26-bit 125kHz credentials.

Who It's For

The FPC-7295 kit is best suited to small businesses, clinics, schools, or multi-tenant properties that need a self-hosted access control and time attendance package with full hardware included. Installers and facility managers who prefer on-premise desktop software and a TCP/IP controller will appreciate the reporting and door restriction features.

It is not ideal for users who require wireless credential provisioning or cloud-based mobile credentials out of the box, nor for projects that cannot accommodate running power and data cables to each door since install wiring is not included.

Pros & Cons

Pros

• Comprehensive hardware bundle simplifies procurement and ensures compatibility across locks, readers, controller, and exit buttons.
• Desktop software with time and attendance and event reporting gives local control and audit capability without recurring cloud fees.
• Durable, IP66-rated outdoor readers and stainless steel no-touch exit buttons suit exterior installations and high-traffic doors.
• Supports up to 10,000 card/keyfob users via the controller for larger user databases while keypads allow limited PIN use.

Cons

• The keypad PIN option is limited to 65 pin users, so sites that need many PIN-only users will be constrained.
• Install wiring is not included, so labor and cable costs add to the total project expense.

Specifications

Brand	Visionis
Controller	VS-AXESS-4ETL Four Door TCP/IP Wiegand
Maglocks	(4) VIS-ML600LED 600lb indoor maglocks with LED
Readers	(4) VIS-3008 IP66 keypad/card readers 125kHz EM
Exit Buttons	(4) VIS-7013 stainless steel no-touch exit buttons
Included Credentials	(10) proximity cards and (10) keyfobs 26-bit 125kHz
User Capacity	Up to 10,000 card/keyfob users (65 PIN users max on keypad)

Our Verdict

The Visionis FPC-7295 is a practical, value-oriented choice for organizations seeking a complete, on-premise four-door access control and time attendance kit. It delivers robust hardware, weatherproof readers, and strong user capacity for cards and keyfobs, making it a good investment when installers can handle wiring and want the control of local software.

Frequently Asked Questions

How many users can the system support?
The controller supports up to 10,000 card or keyfob users; the keypad PIN feature is limited to 65 PIN users.

Are the readers weatherproof for exterior doors?
Yes, the VIS-3008 readers are IP66 rated for outdoor use and include keypad and Wiegand support.

Is software and power supply included?
Yes, desktop software, a power supply, power cord, and a CD are included; however install wiring is not provided.
