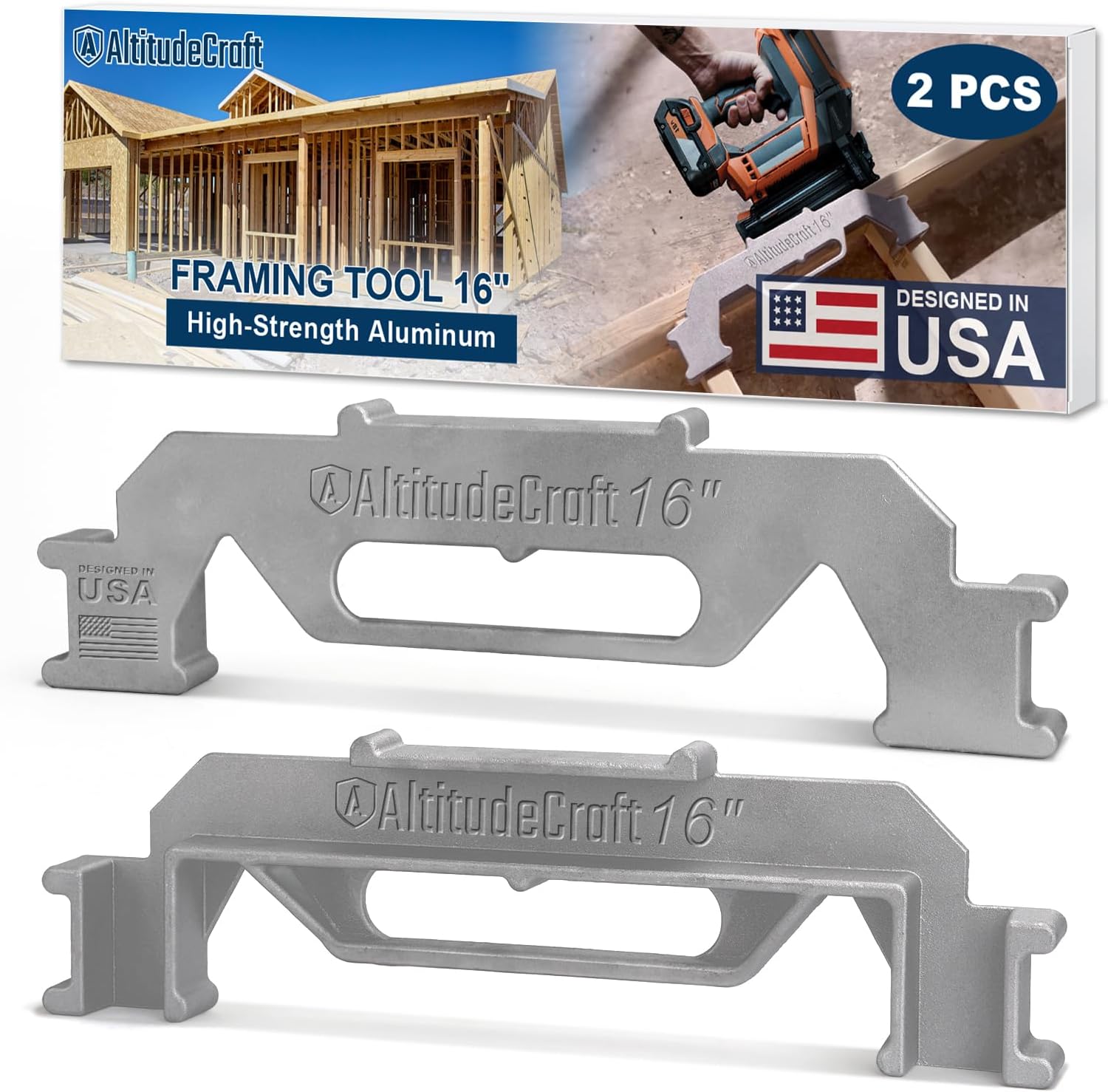

Framing Tools - 16ft Framing Stud Layout Tool for 16 in On-Center

Our review of the AltitudeCraft 16' framing stud layout tool finds it best suited to carpenters and experienced DIYers who need faster, repeatable stud placement on 16 in on-center layouts. The biggest reason to buy is the clear time savings: the 2-piece set is claimed to boost framing speed substantially by letting users slide and seat studs quickly without repeated measuring. In plain terms, this is a simple, durable jig that replaces tape-measuring and marking for common stud spacing tasks and makes multi-stud runs notably faster and more consistent.

Key Features

• Time-saving design: The 16' guide cuts measuring and marking time so framing runs can be completed much faster.
• 2-piece set: Two matched tools provide improved precision by allowing alignment at both ends of a plate for consistent spacing.
• Cast aluminum construction: Solid metal build stands up to jobsite use and resists damage from drops up to about 6 ft.
• Easy to use: The jig slides onto the top plate and holds studs in place, making nailing and attachment quicker for users of any skill level.
• Versatile application: Works for drywall, plywood, shed framing, and other common wall builds where 16 in on-center spacing is required.

Who It's For

This tool is aimed at framing crews, contractors and dedicated DIY builders who regularly cut and set multiple stud runs and want to reclaim measuring time. The 2-piece set is particularly helpful when long walls require consistent spacing across several studs and when speed and repeatability matter.

Hobby crafters or very occasional framers may find a single setup or tape measure adequate and might not need the robustness or extra accuracy the two-piece jig offers. Also, projects that use nonstandard spacing or purely decorative framing will see less benefit.

Pros & Cons

Pros

• Durable 100% solid cast aluminum construction that handles jobsite conditions.
• Obvious speed gains when laying out multiple studs, reducing repetitive measuring tasks.
• Two-piece kit improves accuracy by allowing alignment at both ends of the plate.
• Simple operation so nonprofessionals can achieve consistent, professional results.

Cons

• Designed specifically for 16 in on-center work, so it is not as useful for alternate spacings without modification.

Specifications

Product	16' framing stud layout tool (2-piece set)
Primary use	16 in on-center wall stud framing
Material	100% solid cast aluminum
Design	Slides onto top plate as a jig to seat studs
Durability	Survives typical jobsite drops (tested to ~6 ft)
Included	Two matching framing tools for opposing ends

Our Verdict

The AltitudeCraft 16' framing stud layout tool is a practical, well-built jig for anyone who frames regularly and wants to speed up 16 in on-center stud layout. The two-piece set adds measurable accuracy and repeatability, and the cast aluminum construction promises long service on the jobsite, making it a good value for tradespeople and serious DIYers who value time savings.

Frequently Asked Questions

Can this tool handle long wall runs?
Yes, the 2-piece set is intended to be used at opposite ends of a run to keep spacing consistent across longer walls.

Is it easy for a novice to use?
Yes, the jig is straightforward: slide onto the top plate, insert studs, and nail; novices can get professional-grade spacing with minimal learning.

Will it work for plywood and drywall framing?
Yes, it is designed for common framing tasks including drywall and plywood installations at 16 in on-center spacing.
