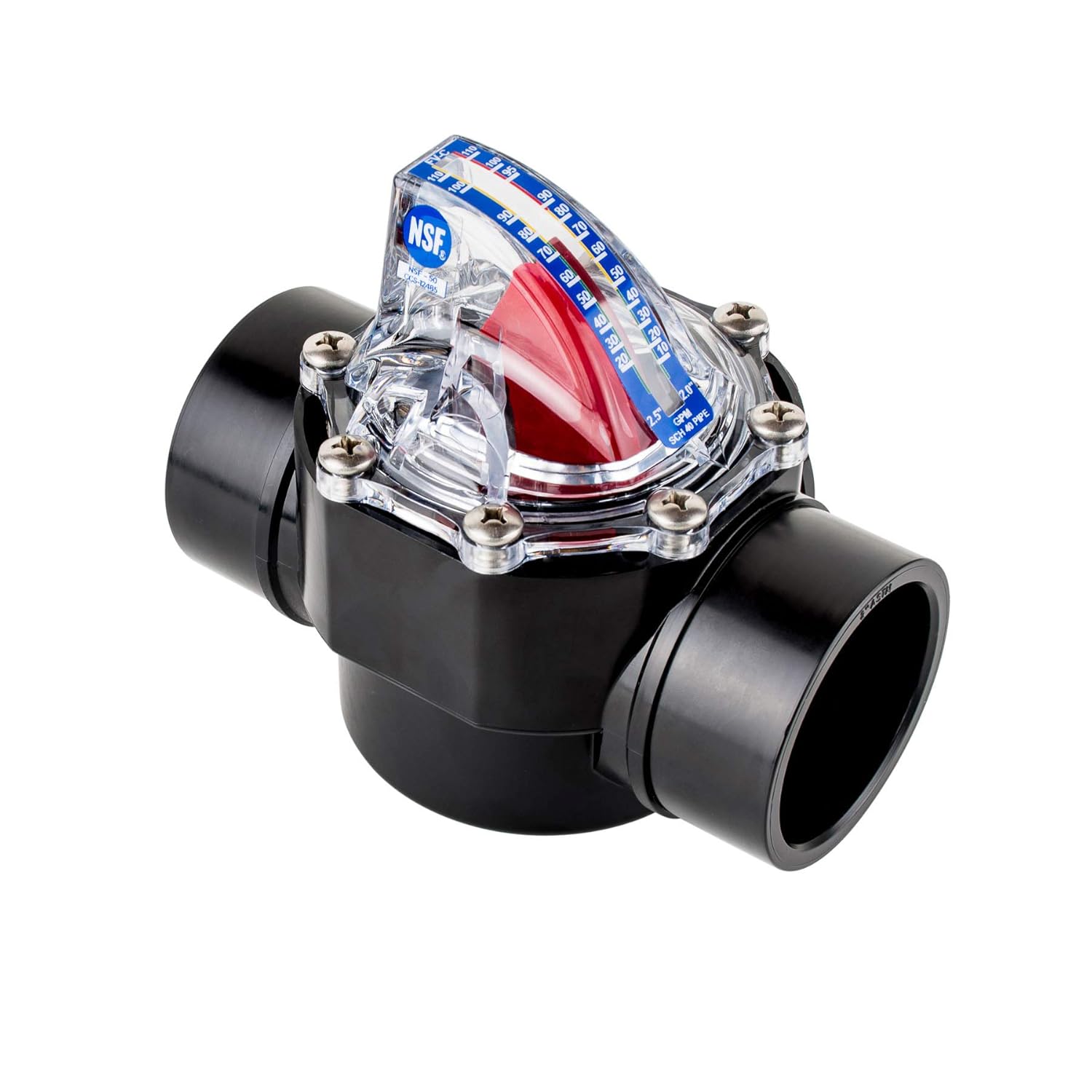

FV-C Control FlowVis 2 x 2.5in Complete Pool Flow Meter and Check

In this review the FV-C Control FlowVis 2 x 2.5in is examined for pool service technicians and facility managers who need a simple, reliable way to measure and prevent backflow. The single biggest reason to consider it is that it combines a clear, easy-to-read flow meter and a built-in check valve in one inline unit, removing the need for separate components and frequent calibration. Installation is straightforward and the unit reads in GPM or optional LPM with velocity points, making it a practical tool for routine flow verification and system balancing.

Key Features

• Combined flow meter and check valve: Consolidates two functions into one inline device so fewer fittings are required and system layout is simplified.
• Clear readable scale: The dial shows flow in GPM or optional LPM with key velocity points so technicians can confirm rates at a glance without calculations.
• Versatile installation: Can be installed horizontally, vertically, upside down, or adjacent to elbows and fittings, reducing constraints during retrofit work.
• High average accuracy: Offers average accuracy of about 2.01% between 20 and 110 GPM, which is useful for most pool and light industrial flow checks.
• NSF rating and pressure tolerance: Certified to 50 PSI, giving confidence for common pool system pressures and saline environments.
• Maintenance-free calibration: Installs inline with no saddle clamps or flat rubber seals to corrode, and never requires calibration for ongoing use.

Who It's For

This unit is well suited to pool service professionals, municipal and commercial pool operators, and plumbers who need a compact solution for confirming flow rates and preventing backflow without adding separate fittings. The combined design saves space and simplifies routine inspections.

It is less appropriate for users requiring flow readings below 20 GPM as the stated accuracy band centers on 20-110 GPM, or for applications needing pressure ratings above 50 PSI. Also, if a fully metal body or metal cover is required for extreme environments, buyers should consider alternative materials.

Pros & Cons

Pros

• Combines a visible flow rate display and check valve to reduce parts and installation time.
• Easy to read scale improves speed of system balancing and troubleshooting.
• Simple inline installation with no calibration makes routine checks low effort.
• NSF certified to 50 PSI and maintains good accuracy across the rated range.

Cons

• Some users reported occasional small leakage issues from the plastic cover, which may affect long-term durability in certain conditions.
• Accuracy and usefulness are best within the 20-110 GPM range, so very low-flow applications may see reduced precision.

Specifications

Product	FV-C Control FlowVis 2 x 2.5in
Functions	Flow meter and check valve combined
Flow units	GPM (standard) or optional LPM
Accuracy	Average ~2.01% between 20-110 GPM
Pressure rating	NSF certified to 50 PSI
Installation	Inline; horizontal, vertical, upside down, adjacent to elbows

Our Verdict

The FV-C Control FlowVis 2 x 2.5in is a practical, time-saving tool for pool technicians and facility managers who need reliable inline flow measurement plus backflow prevention. Its clear scale, simple installation, and NSF certification make it a sensible value for most pool and light industrial uses, provided the lower-flow and cover-material limitations are acceptable.

Frequently Asked Questions

Can the unit be installed in any orientation?
Yes, it is designed to be installed horizontally, vertically, upside down, or next to elbows and other fittings.

What flow range is the accuracy specified for?
Average accuracy is stated at about 2.01% within the 20-110 GPM range.

Does it require calibration after installation?
No calibration is required; the unit is designed to operate accurately inline without further adjustment.
