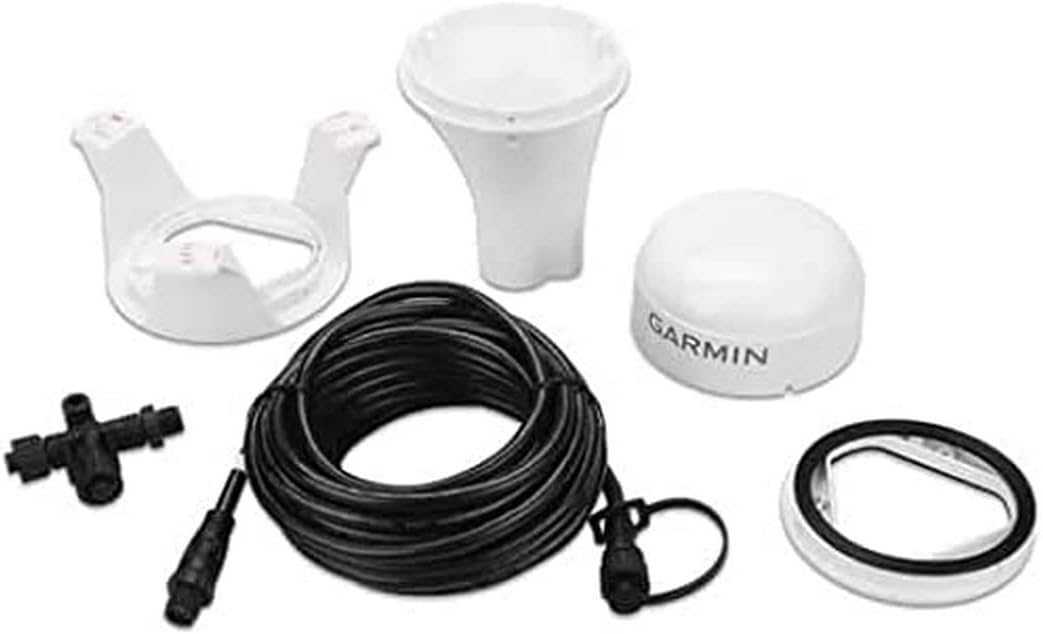

Garmin GPS 24xd Antenna/Receiver NMEA 2000 - Precise Multi-Band GNSS

Our review finds the Garmin GPS 24xd Antenna/Receiver best suited for boaters and marine electronics installers who need a compact external GNSS source with strong heading and position performance. In this review the unit stands out for delivering multi-band GNSS accuracy close to 1 meter to compatible displays and autopilots, and for providing a magnetic heading that stabilizes charts and radar overlays at slow speeds. It is a focused navigation component for those who want improved satellite tracking and steady heading data without changing core displays.

Key Features

• Multi-band GNSS: Provides precise location accuracy to within 1 meter to compatible multifunction displays, helping reduce position drift during coastal and inshore navigation.
• Magnetic heading: The magnetic heading sensor delivers accuracy to within 3 degrees, which helps stabilize chart orientation, radar overlay and MARPA targets even when moving slowly.
• High-sensitivity GPS: Fast 10 Hz position update rates give smooth, frequent position, velocity and time data useful for responsive charting and autopilot inputs.
• Expanded GNSS support: Access to GPS, Galileo, GLONASS and BeiDou improves satellite availability and tracking in challenging reception areas compared with single-system receivers.
• Multi-SBAS compatible: Support for multiple SBAS corrections helps reduce measurement errors and improves position reliability in areas with augmentation services.

Who It's For

This device is aimed at boat owners, captains and electronics professionals who need a compact, high-performance external antenna/receiver to feed NMEA 2000 networks and compatible multifunction displays. It benefits installations where an integrated GNSS in the display is marginal or where improved heading stability is required for radar overlay or autopilot tuning.

It is not a stand-alone chartplotter or a full navigation system, so users seeking a complete display, charting, or legacy NMEA 0183-only setups should look elsewhere. Also, those needing integrated sonar or networked camera features will still require additional equipment.

Pros & Cons

Pros

• Delivers precise location with multi-band GNSS for tighter position fixes than GPS alone.
• Provides a reliable magnetic heading that stabilizes charts and radar overlays at slow speeds.
• Fast 10 Hz updates supply responsive position and velocity data for autopilots and instruments.
• Supports multiple GNSS constellations and SBAS for better reception in difficult conditions.

Cons

• Designed only as an antenna/receiver; it must be connected to compatible displays or autopilots to be useful.
• Source description lacks detail on mounting hardware and cable length, so installers should confirm physical fit before purchase.

Specifications

Product type	Antenna/receiver for marine use
GNSS	Multi-band GNSS (GPS, Galileo, GLONASS, BeiDou)
Position accuracy	Precise location to within 1 meter to compatible displays
Heading accuracy	Magnetic heading accuracy to within 3 degrees
Update rate	10 Hz position update
Network	NMEA 2000
SBAS	Multi-SBAS compatible

Our Verdict

The Garmin GPS 24xd is a strong choice for marine users who need improved satellite tracking and a stable magnetic heading fed into their NMEA 2000 network. It provides clear value when added to displays, instruments or autopilots because of its multi-band GNSS accuracy and 10 Hz updates, though it is an add-on receiver rather than a full navigation system.

Frequently Asked Questions

Does this antenna provide heading as well as position?
Yes. The unit includes a magnetic heading sensor rated to about 3 degrees accuracy to stabilize overlays and MARPA.

Will it work with my chartplotter?
It supplies position and heading over NMEA 2000 to compatible multifunction displays and autopilots; verify your display supports external GNSS over NMEA 2000.

Does it support multiple satellite systems?
Yes. The GPS 24xd provides access to GPS, Galileo, GLONASS and BeiDou and is compatible with multiple SBAS services.
