GeeekPi Metal Case for Raspberry Pi 5 - M.2 HAT+ Active Cooler

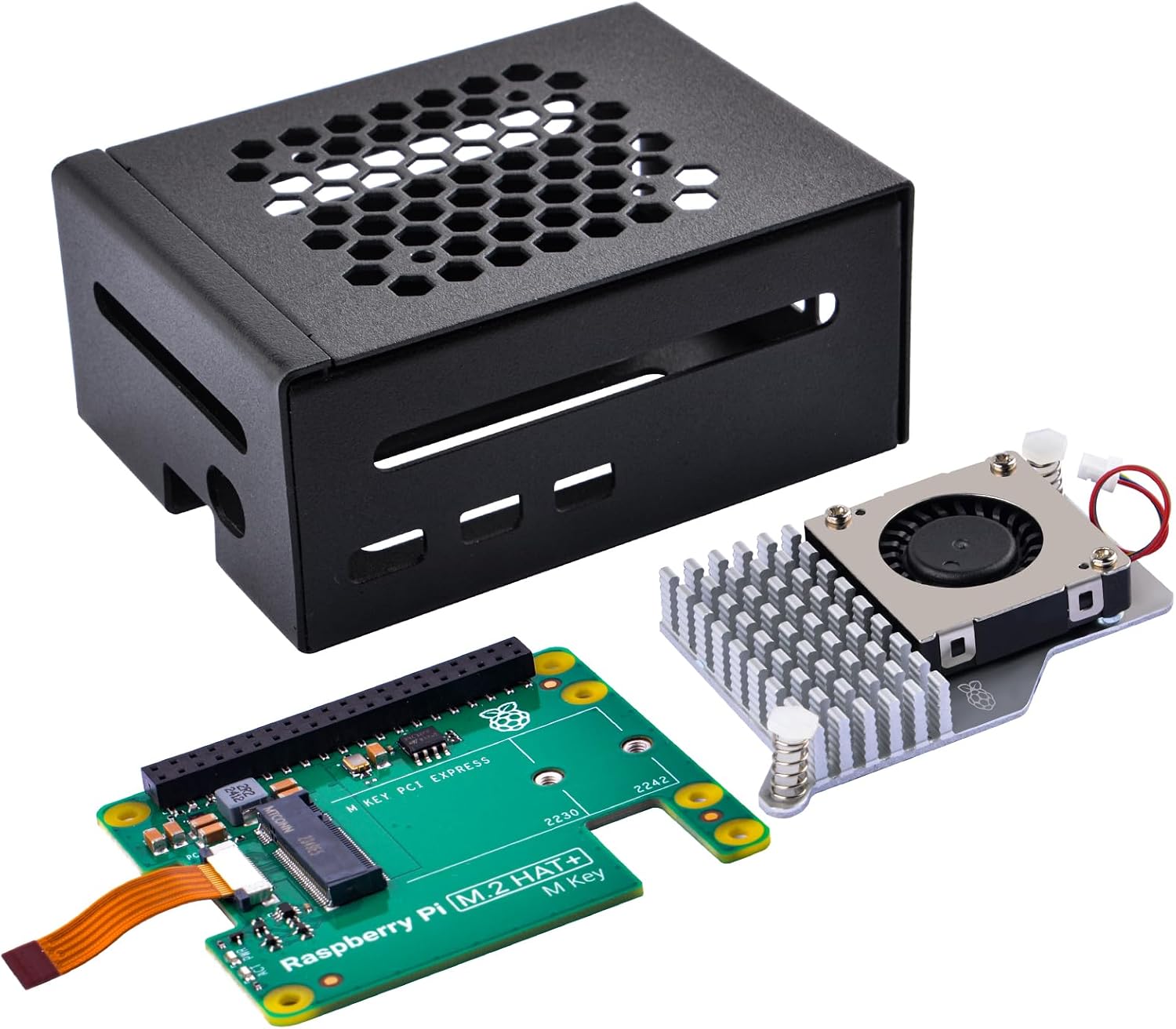

In this review of the GeeekPi Metal Case for Raspberry Pi 5 the bottom line is simple: this kit is aimed at hobbyists and makers who want an all-in-one enclosure that adds M.2 NVMe storage and active cooling without sacrificing access to board ports. The reviewer found it most compelling because it bundles a metal case, the official Raspberry Pi M.2 HAT+, and an aluminium heatsink with a PWM fan, so users get both improved thermal performance and support for M.2 SSD 2230/2242 in one package.

Key Features

• Compatibility: The kit works with Raspberry Pi 5 4GB and 8GB boards, providing a matched enclosure and accessories for the latest Pi 5 release.
• M.2 Storage Support: The included official M.2 HAT+ supports single-lane PCIe 2.0 and M.2 NVMe SSD sizes 2230 and 2242 for compact, fast local storage.
• Active Cooling: An aluminium heatsink combined with a PWM fan helps maintain lower operating temperatures under load for more reliable performance.
• Port Access: The metal case is cut to allow access to the USB-C power jack, micro HDMI ports, USB ports, Ethernet, SD card slot, power button, and GPIO header without removal.
• Fit and Hardware: The M.2 HAT+ ships with a 16mm stacking header and threaded spacers so it can be installed with the active cooler in place for compact assembly.

Who It's For

This package is well suited to Raspberry Pi 5 users who plan to run projects that benefit from an internal NVMe drive and steady cooling, such as small servers, media centers, or development boards used for heavier compute tasks. Builders who prefer a metal enclosure with accurate port cutouts and bundled mounting hardware will appreciate the convenience.

It is less appropriate for people who do not need M.2 storage or active cooling, or for those who require passive, fanless designs for ultra-quiet operation. Also note the Raspberry Pi 5 board is not included, so buyers must already own or purchase the Pi separately.

Pros & Cons

Pros

• Complete kit including metal case, official M.2 HAT+ and active cooler for a tidy, integrated setup.
• Supports M.2 NVMe 2230/2242 via PCIe 2.0 single-lane for faster local storage than SD cards.
• Good cooling capacity from the aluminium heatsink and PWM fan keeps temperatures in check under load.
• Accurate port access preserves usability of USB-C power, HDMI, Ethernet, GPIO and more.

Cons

• The kit requires a separate Raspberry Pi 5 board purchase, so this is not a complete single-board computer bundle.
• A faned solution is not ideal where completely silent or passive operation is required.

Specifications

Our Verdict

The GeeekPi metal case with official M.2 HAT+ and active cooler is a practical upgrade for Raspberry Pi 5 owners who want internal NVMe storage and improved cooling in a compact, well-engineered enclosure. It delivers good build quality and assembly convenience, making it good value for makers building Pi-based servers, media players, or development systems, provided they accept a faned solution and already have the Pi 5 board.

Frequently Asked Questions

Does this include the Raspberry Pi 5 board?
No, the Raspberry Pi 5 board is not included; the kit contains the metal case, M.2 HAT+ and active cooler only.

Which M.2 sizes are supported?
The official M.2 HAT+ supports NVMe SSD sizes 2230 and 2242 using a single-lane PCIe 2.0 interface.

Can the M.2 HAT+ be fitted with the cooler installed?
Yes, the kit includes a 16mm stacking header and threaded spacers so the M.2 HAT+ can be mounted while the active cooler is in place.
