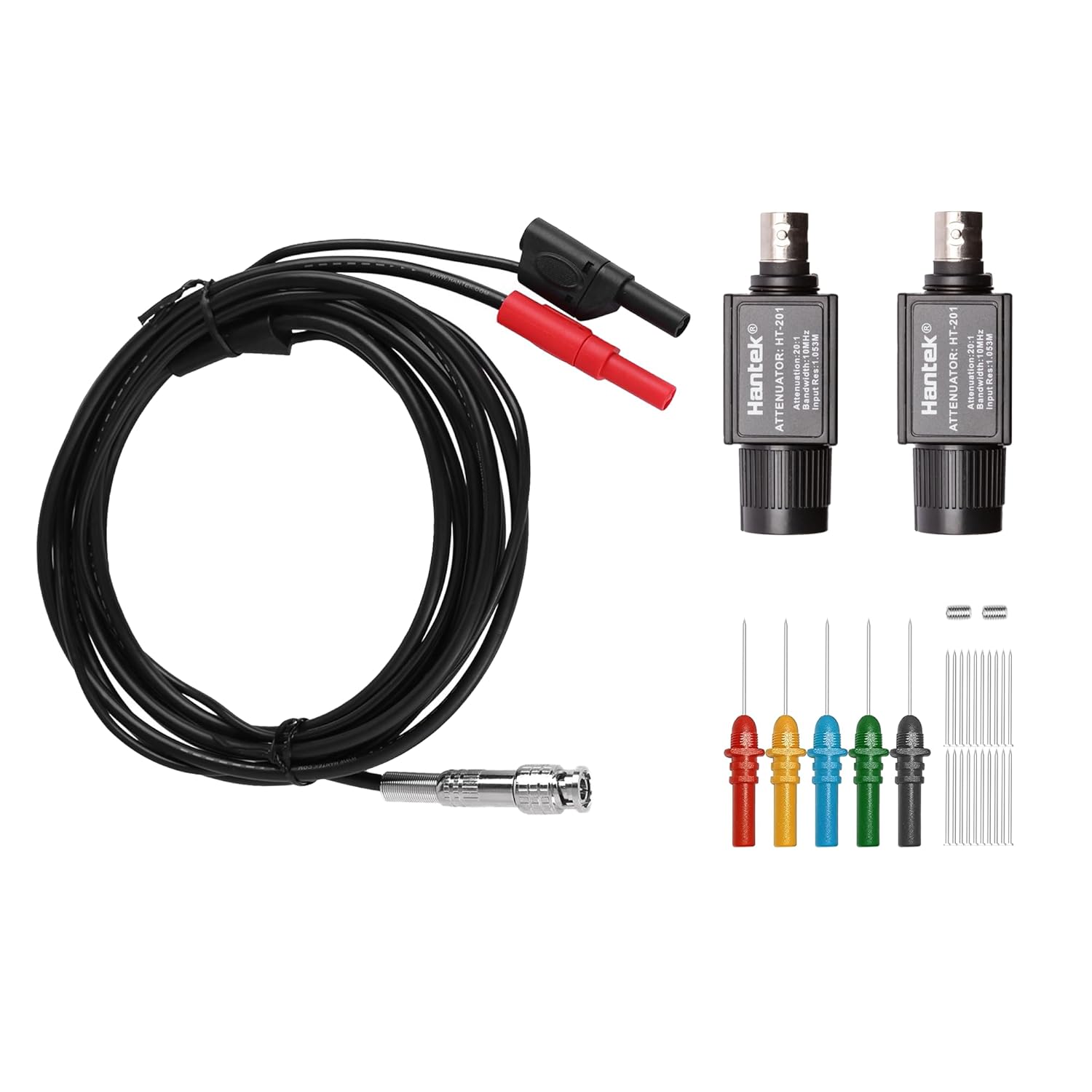

Hantek Oscilloscope Accessory Set 20:1 Attenuator and Auto Test Leads

Our review of the Hantek Oscilloscope Accessory Set focuses on technicians and electronics hobbyists who work on vehicles and need safe, flexible ways to capture ignition and injector signals. The kit's single biggest selling point is its automotive-specific design: a 20:1 HT201 attenuator that scales primary ignition and injector voltages into a range an oscilloscope can read, paired with purpose-built HT30A auto test leads and HT307 piercing probes that let the oscilloscope stay on the bench while measurements are taken in the engine bay.

Key Features

• HT201 20:1 attenuator: Passively reduces input amplitude so primary ignition and fuel injector waveforms can be measured safely within a scope's input range.
• 10 MHz bandwidth: The HT201 bandwidth is suited for common automotive ignition and injector transients without adding complex active circuitry.
• HT30A auto test leads: 3 m BNC to banana adapter cable and heavy duty leads let the oscilloscope be positioned on a bench away from the vehicle for convenience and safety.
• Asymmetric lead lengths: The two HT30A connectors have different lengths so the short lead serves as earth and the long lead connects to the positive engine cable, reducing tangles and clarifying connections.
• HT307 back-pinning piercing probes: Repairable pin-tip probes let you pierce insulated wires or back-pin small connectors without permanent damage to harnesses or fragile pins.

Who It's For

The kit is targeted at automotive technicians, electrical diagnosticians, and enthusiasts who routinely capture injector or primary ignition signals and prefer to use a benchtop oscilloscope. It is particularly useful when the technician wants the scope removed from the vehicle and needs ruggedized leads and piercing probes to access wires and connectors.

Those who need high-voltage ignition coil diagnostics beyond primary circuits, very high bandwidth lab measurements, or active compensated probes for precision lab work should look elsewhere - this kit is optimized for typical automotive service tasks, not for extreme high-voltage or GHz-range instrumentation.

Pros & Cons

Pros

• Includes a purpose-built 20:1 attenuator for safe measurement of ignition and injector signals.
• Long 3 m adapter and heavy duty leads allow the oscilloscope to remain on the bench while probing in the engine bay.
• HT307 piercing probes provide non-destructive access to insulated wires and small connector pins.
• Asymmetric lead lengths reduce twisting and make ground/positive identification straightforward.

Cons

• Bandwidth is limited to 10 MHz, so the attenuator is not suitable for very high-frequency lab measurements.

Specifications

Attenuation	20:1 (HT201)
Attenuator bandwidth	10 MHz
Auto test lead length	3 m BNC to banana adapter cable (HT30A)
Probe type	Back-pinning/piercing and repairable probe (HT307)
Connector style	4 mm connectors and BNC to banana adapter
Lead design	Asymmetric lengths; short = earth, long = positive

Our Verdict

The Hantek Oscilloscope Accessory Set is a practical, value-minded kit for automotive diagnostic work, combining a dedicated 20:1 attenuator with long bench-friendly leads and piercing probes. It is recommended for technicians who need safe, convenient access to injector and primary ignition signals; those needing higher bandwidth or high-voltage coil probes should consider other specialized options.

Frequently Asked Questions

Can this attenuator measure ignition and injector signals?
Yes. The HT201 is designed specifically to allow fuel injector and primary ignition waveforms to be measured when used with a compatible oscilloscope.

Will the HT307 damage wiring when probing?
No. The HT307 is intended for piercing insulation and back-pinning small connectors while minimizing permanent damage, and the probes are repairable.

Is this kit suitable for bench lab high-frequency testing?
Not ideally. The HT201 attenuator is bandwidth-limited to 10 MHz and is optimized for automotive signals rather than high-frequency lab work.
