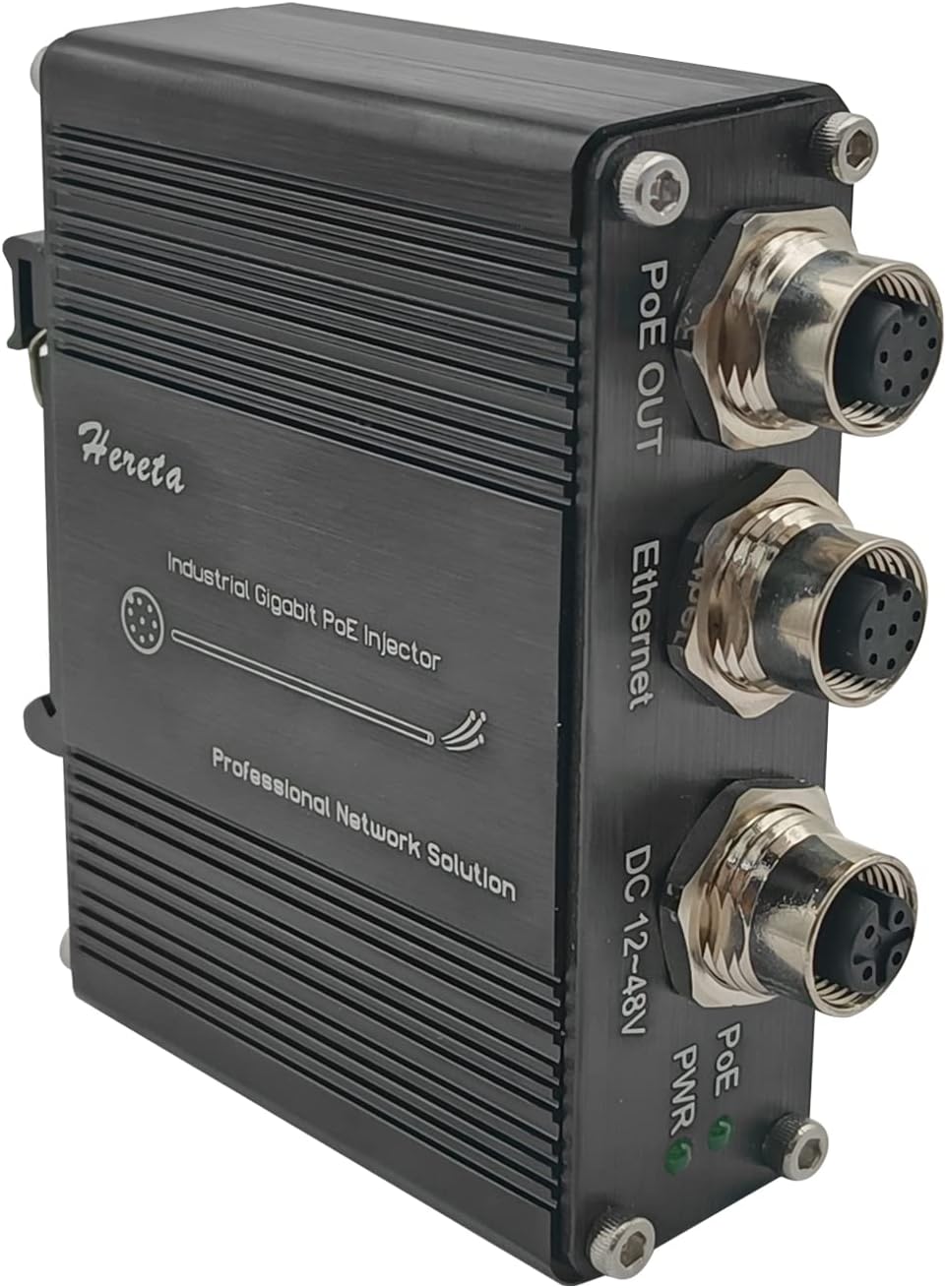

Hardened Industrial Gigabit PoE+ Injector M12 Interface - Rugged 30W

In this review of the Hardened Industrial Gigabit PoE+ Injector, the bottom line is simple: this unit is for industrial technicians and network integrators who need a compact, rugged PoE+ power source with secure M12 connections. The reviewer found it excels at delivering up to 30W over a single M12 PoE output while surviving demanding environments, making it a practical choice where vibration, moisture, and wide temperature swings are concerns. If a hardened, DIN-rail friendly PoE+ injector is required, this model is worth consideration.

Key Features

• M12 Port Configuration: The injector uses one M12 Ethernet data input, one M12 PoE output and one M12 power supply port to keep cabling secure and reduce accidental disconnects on industrial sites.
• Gigabit Data Support: Supports 10/100/1000Base-TX so attached devices can run at full gigabit speed while receiving power over the same cable.
• Industrial Grade Case: An aluminium alloy housing provides physical durability and helps the unit withstand harsh mechanical conditions.
• Wide Operating Range: Rated to operate from -40F to 176F, making it suitable for cold storage, outdoor cabinets, and factory floors with extreme temperatures.
• Wide DC Input: Accepts 12 to 48V DC input and supplies up to 30W to the PoE+ port, allowing flexible power source choices in varied systems.
• DIN-Rail or Wall Mount: Includes a DIN-rail mounting bracket and can be wall mounted, simplifying installation in standard control cabinets or network enclosures.

Who It's For

This injector is aimed at installers and maintenance teams deploying industrial Ethernet cameras, access control devices, or wireless radios where a sealed M12 connection and robust housing are required. It fits sites that need PoE+ power plus gigabit throughput and a device that tolerates wide temperature ranges.

It is less suited to home or small-office users who do not need M12 waterproof connectors or DIN-rail mounting; for those audiences, a standard desktop PoE injector with RJ45 ports and lower environmental ratings will be cheaper and easier to integrate.

Pros & Cons

Pros

• Durable aluminium alloy enclosure with IP68-style M12 connectors provides dependable sealing against moisture and dust.
• Supports IEEE 802.3at PoE+ and gigabit data, enabling both power and high-speed connectivity to a single device.
• Wide 12~48V DC input and 30W output per port allow flexible deployment in industrial power systems.
• DIN-rail mountable design speeds installation in control cabinets and network racks.

Cons

• Single PoE output limits use to one powered device per unit so multiple devices require additional injectors or a powered switch.

Specifications

Port Configuration	1 M12 data in, 1 M12 PoE+ out, 1 M12 DC input
PoE Standard	IEEE 802.3at Power Sourcing Equipment (PoE+)
Power Output	Up to 30W max per PoE port
Data Rate	10/100/1000Base-TX (Gigabit)
Input Voltage	12 - 48V DC
Operating Temperature	-40F to 176F
Mounting	DIN-rail bracket and wall mount capable

Our Verdict

The Hardened Industrial Gigabit PoE+ Injector is a solid choice for industrial and outdoor network deployments that require secure M12 connections, wide input voltage range and reliable PoE+ power delivery. It is good value where ruggedness and environmental tolerance matter, but those needing multiple PoE outputs should plan for additional units or a powered switch.

Frequently Asked Questions

Does this injector support gigabit speeds?
Yes. It supports 10/100/1000Base-TX so connected devices can achieve gigabit throughput.

What power range does it accept?
The unit accepts a DC input range of 12 to 48V and supplies up to 30W to the PoE+ output.

How is it mounted?
It includes a DIN-rail mounting bracket and can also be installed on a wall or within a cabinet for flexible deployment.
